5.2.1 Place the back log into the fi rebox, pushing it as close
to the fi rebox wall as possible and centered onto the
log support pan.
5.2.2 Place the front log on the ember screen lining up the
studs with the holes on the bottom of the log.
NOTE: The ember screen is adjustable front to
back. To avoid fl ame impingement on propane
move the ember screen to the back most position.
Loosen the two screws that secure the ember
screen, move the screen back and retighten the
screws.
The glowing ember screen is positioned in the
fl ame to maximize the glow effect. Even though it is
constructed of the highest quality material, it is subject
to deterioration over time and consequently will need to
be replaced. Replacement of the ember screen is not
covered under the warranty policy
5.2.3 Set the two cross-over logs into the pockets provided
on both the front and rear logs as shown.
PHAZER TM logs, glowing embers and charcoal embers exclusive to Wolf Steel Ltd. fi replaces, glow when
exposed to direct fl ame and provide a unique and realistic glowing effect that is different in every installation.
Use only certifi ed PHAZER
TM logs, glowing embers and charcoal embers available from your local authorized
dealer / distributor.
Log colours may vary. During the initial use of the appliance, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.

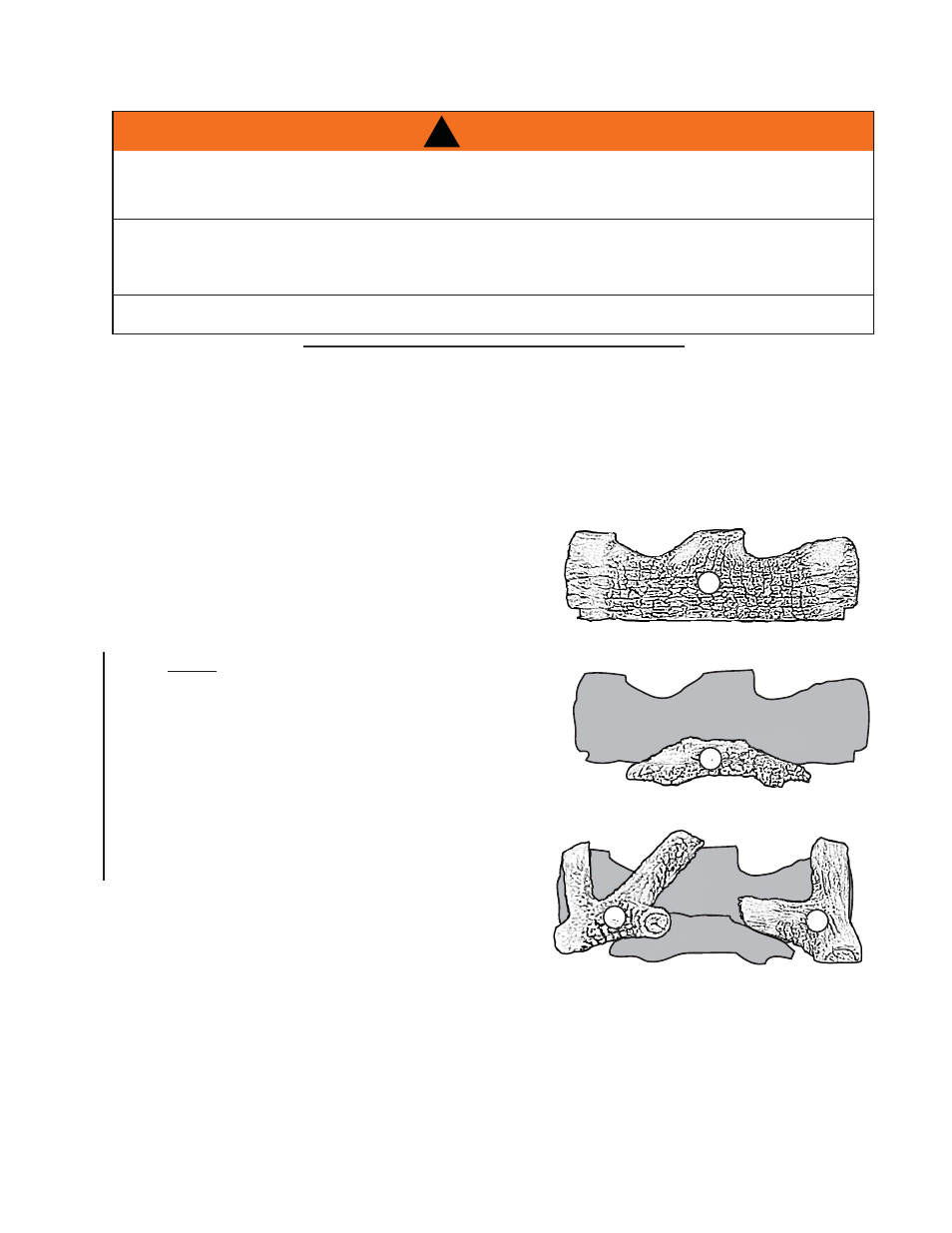

5.2 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
