4.7 B-VENT SPECIFICS

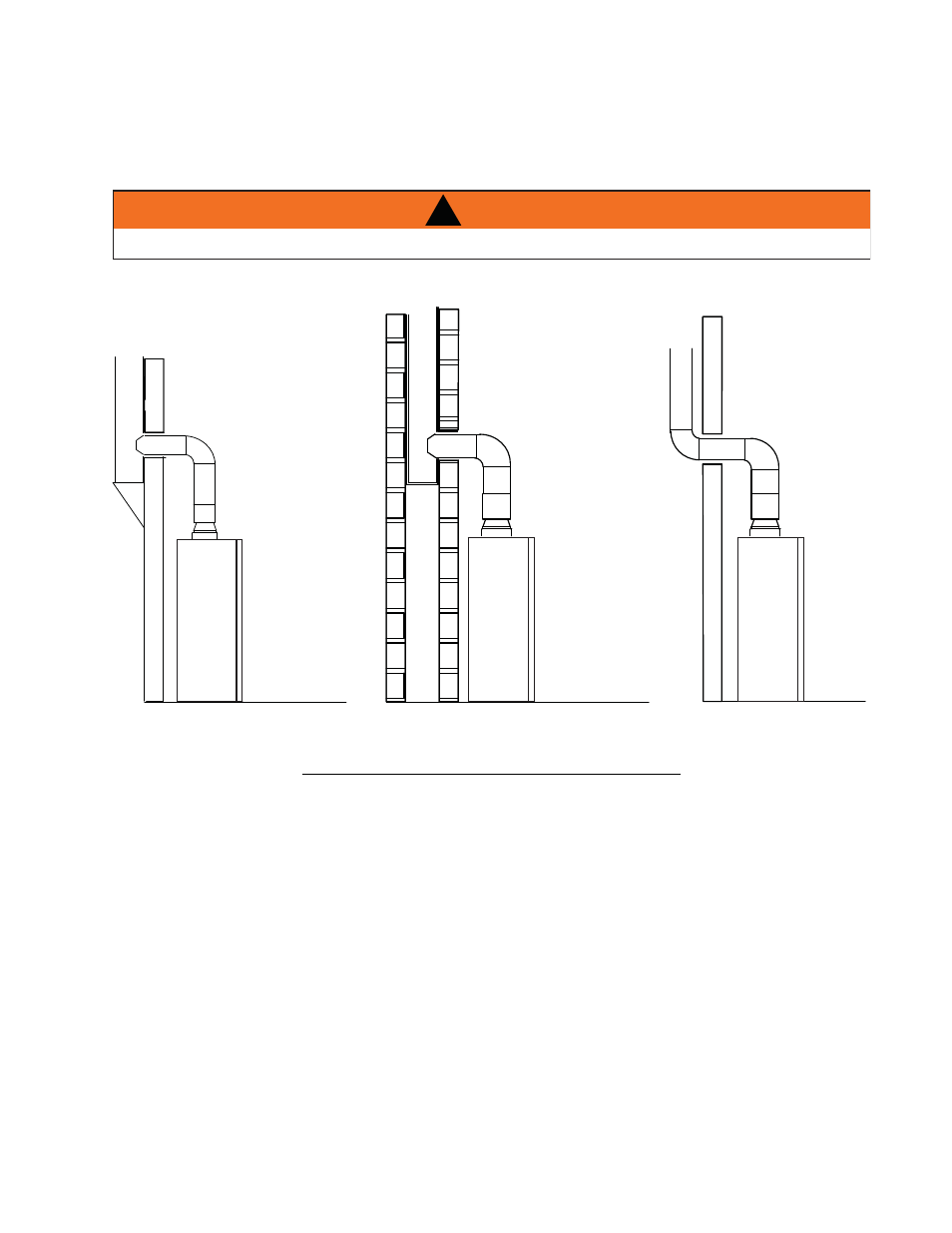

4.7.1 CHIMNEY INSTALLATION
63.7
“A” VENT - SOLID
FUEL WOOD BURNING
CHIMNEY & VENT
CONNECTOR
(LINER NEEDED
IF INSIDE
DIAMETER IS 6”
OR LARGER)
SINGLE WALL
OR “B” VENT
MASONRY CLAY LINED
CHIMNEY + VENT
CONNECTOR
(NO NEW LINER
NEEDED IF OLD
LINER DIAMETER
IS 4-5”)
SINGLE WALL
OR “B” VENT
“B” VENT
GAS BURNING
APPLIANCE
VENT SYSTEM
A CHIMNEY VENTING THIS APPLIANCE SHALL NOT VENT ANY SOLID FUEL BURNING APPLIANCE.
!
WARNING
A chimney venting this appliance shall not vent any solid fuel burning appliance.
All horizontal runs must have a 1/4" rise per foot
Three types of chimney systems may be used with this appliance.
