Essentia Accessories
NV-MI1 Mute Interface Adapter (Fig. 15)
The Mute Interface is used in conjunction with System Mute input in the back of the Essentia amplifier. It acts
as a relay for a voltage from up to two phone lines and two doorbell transformers. When a voltage is presented to
the MI1 it then sends a contact closure to the Essentia System, which in turn causes the system to mute momen-
tarily. This is useful in allowing the telephone ring or doorbell to be heard when audio is playing in any of the
zones.
MUTE INTERFACE
ADAPTER
NV-MI1
CONNECT TO
MUTE INPUT
A
B
A
B
DOORBELL 1
DOORBELL 2
Connect to Telephone RJ-11
Line 1: Pins 3,4 Line 2: Pins 2,5
Mute Interface Module
Model NV-MI1
R
OUTPUT POWER OUTPUT POWER
20W/6OHM X2 20W/6OHM X2
SYS ON
EXT. MUTE
L
R
L
R
L
R
VARIABLE
OUTPUT
FIXED OUTPUT
SUM1
3033118 C US
CONFORMS TO UL STD.6500 CERTIFIED TO CAN/CSA STD.E60065
NuVo Technologies Cincinnati Ohio USA FUSE:T5 A 120V 60Hz 500W
MODEL NV-6DM SIX SOURCE SIX ZONE AUDIO DISTRIBUTION SYSTEM
www.nuvotechnologies.com
OUTPUT POWER OUTPUT POWER OUTPUT POWER
20W/6OHM X2 20W/6OHM X2 20W/6OHM X2 TIP=L
RING=R
VARIABLE
OUTPUT
FIXED OUTPUT
TIP=L
RING=R
VARIABLE
OUTPUT
FIXED OUTPUT
TIP=L
RING=R
VARIABLE
OUTPUT
FIXED OUTPUT
TIP=L
RING=R
VARIABLE
OUTPUT
FIXED OUTPUT
TIP=L
RING=R
VARIABLE
OUTPUT
FIXED OUTPUT
TIP=L
RING=R
1 2 3 4 5 6
1 2 3 4 5 6
1 3 5 1 3 5
RS-232
CONNECT TO
NV-I8X
USE NV-SLC1
CABLE
CONNECT TO
NV-I8X
USE NV-SLC1
CABLE
CONNECT TO
NV-I8EZP1
USE NV-NC1
CABLE
USE CNLY WITH 250V FUSE
2 4 6 SUM2 2 4 6
OUTPUT POWER
20W/6OHM X2
ZONE 6 ZONE 6
SYSTEM ZONE TRIGGER OUTPUTS SOURCE LINK SOURCE INPUTS
ZONE 1
NETWORK EMITTER OUTPUTS DIGITAL LINK
ZONE 3 ZONE 4 ZONE 5 ZONE 2 PROGRAM

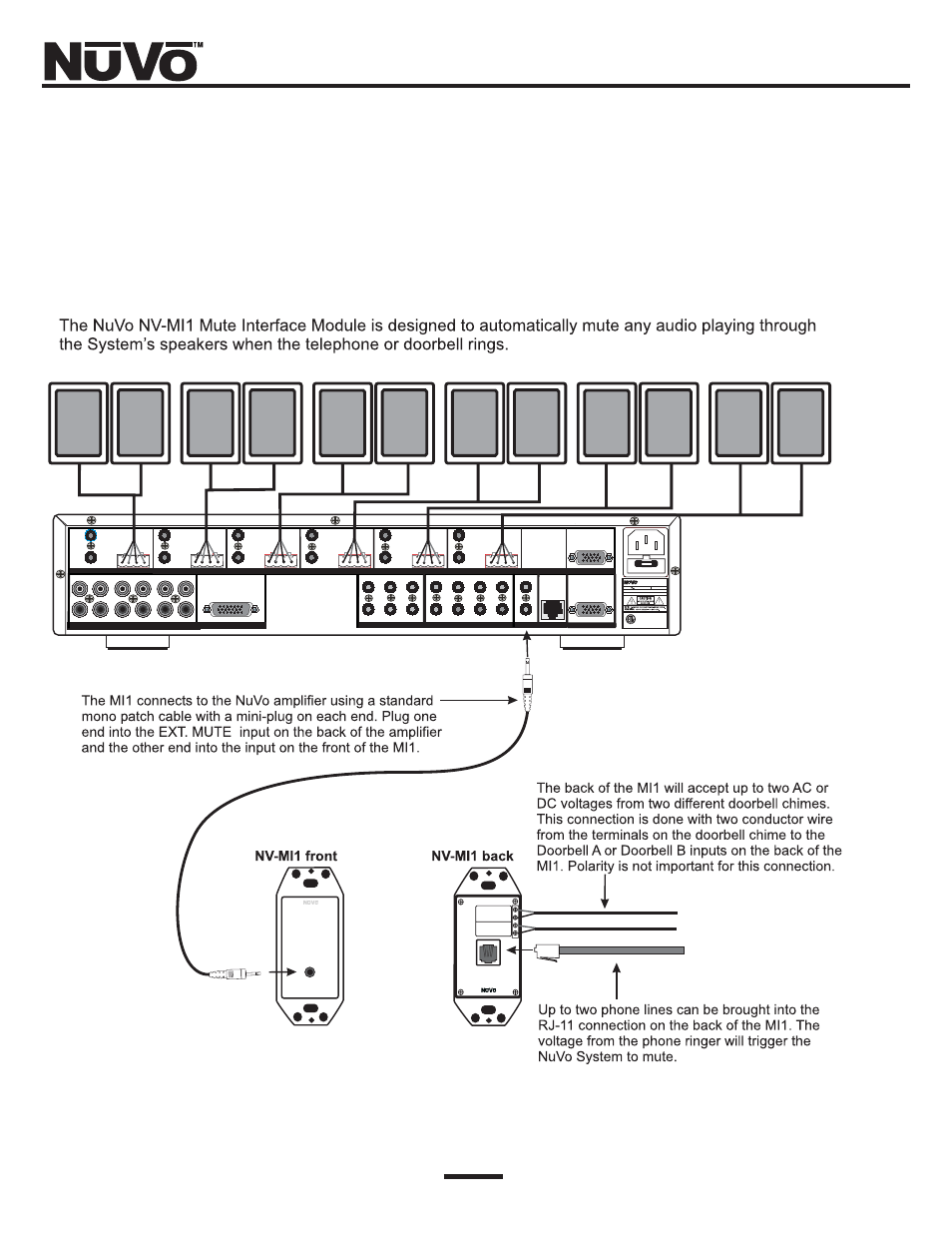

Fig. 15: NuVo NV-MI1 Mute Interface for Use
With All NuVo Audio Distribution Systems
