Simplese
®
Four-Source, Four-Zone Audio Distribution System
www.nuvotechnologies.com
2395 Arbor Tech Drive, Hebron, KY 41048
Phone: 859-817-7200 Toll Free: 866-796-4904
Zones 1-4 Power Amplifier Outputs
Continuous Average Output Power
30W (15W x 2)
Two channels driven
30-20kHz @1% THD
Rated Distortion (1/2 power)
0.40%
Rated Impedance
6 Ohms
Damping Factor
50+
Frequency Response
20-20kHz
Preamplifier
Variable output
0-600mV
Fixed output
600mV
Impedance
600 Ohms
Source Inputs 1-4
Input Impedance
10K
Input Sensitivity for rated power
300mV RMS
Input Overload
3V RMS
Emitter Outputs
Source Outputs
4
Output Drive Current
50mA
Output Drive Voltage
5V
Source 1 and 2
38kHz/56kHz Selectable
Source 3 and 4
38kHz Fixed
System Specifications
System On
5V @ 50mA
External Mute
3-12V DC
Power Requirements
Power Supply
90-260VAC 50/60Hz
Power Consumption all channels
140W
driven to full-rated power
Power Consumption average
30W
operating conditions
Power Consumption no signal
Less than 10W
Physical Specifications
Unit Size Millimeters
44H x 432W x 270D
Unit Size Inches
1.75H x 17W x 10.625D
Unit Weight Kilograms
2.95
Unit Weight Pounds
6.5
Keypad Size Millimeters
50H x 50W x 33.5D
NuVo reserves the right to change specifications without notice.
Simplese system package ships complete with the following:
• Simplese four-source, four-zone system
• 4 keypads (with trim plates)
• 36 pre-printed source buttons
• 1 LRC1 remote with batteries
• Allport® and Allport cable
• 4 IR emitters
• REM1U Rack Ear Mounts
SMP-159-0721C
Simplese
3033118
C
US
RT
E E
T
K
N
I
CM
D
RT
E E
T
K
NI
100~240V
50~60Hz 85W
SENSITIVITY
-12
+6
0
LEFT
+6
-12
RIGHT
0
VOLTAGE
TRIGGER
3-30 VOLTS
AC OR DC
8 OHM: 70W X 2
4 OHM: 100W X 2
ON/OFF SWITCH
AUDIO AC/DC
POWER
MODE
Source 2
Tuner 2
Audio
Out
SOURCE INPUT
L
R
L
R
1
2
3
4
L
R
ZONE 4
FIXED
VAR
LINE OUT
IR OUT
1
3
2
4
SYSTEM
LINK
RS232
STATUS
ON=+12V
MUTE
=0V
SPEAKER AND DATA SIGNALS
ALL PORT CONNECTION
CONFORMS TO
UL STD.6500
CERTIFIED TO
CAN/CSA STD.E60065
NuVo Technologies Cincinnati Ohio USA
FOUR-SOURCE FOUR-ZONE
USE FOR SAT
OR CABLE
NORMAL
USE
56KHz
38KHz
1
2
Source 1
Tuner 1
Audio
Out
Source 4
DVD
Audio
Out
Source 3
CD
Audio
Out

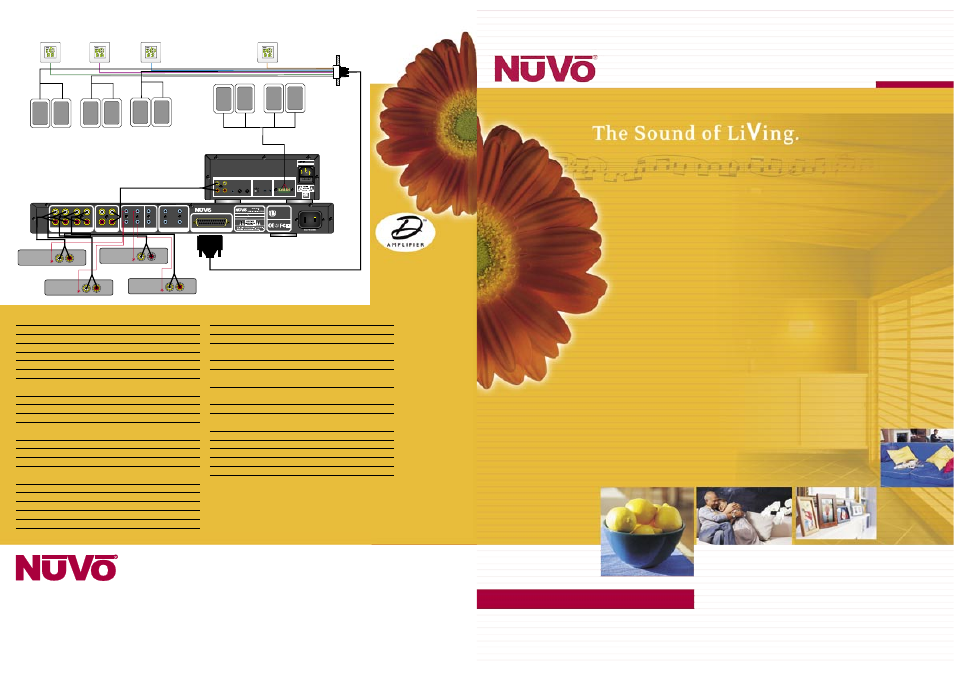

Simplese D UK Wiring
Diagram
System shown using the optional NuVo
P2100 audio amplifier for zone 4.
Zone 1
Zone 2
Zone 3
Zone 4
VOLUME
MUTE
MP3
SAT
HD
CD
VOLUME
MUTE
MP3
SAT
HD
CD
VOLUME
MUTE
MP3
SAT
HD
CD
VOLUME
MUTE
MP3
SAT
HD
CD
NuVo uses D Amplifier™
by Philips Semiconductors
