Page 15
06
Part Names
English
15
En

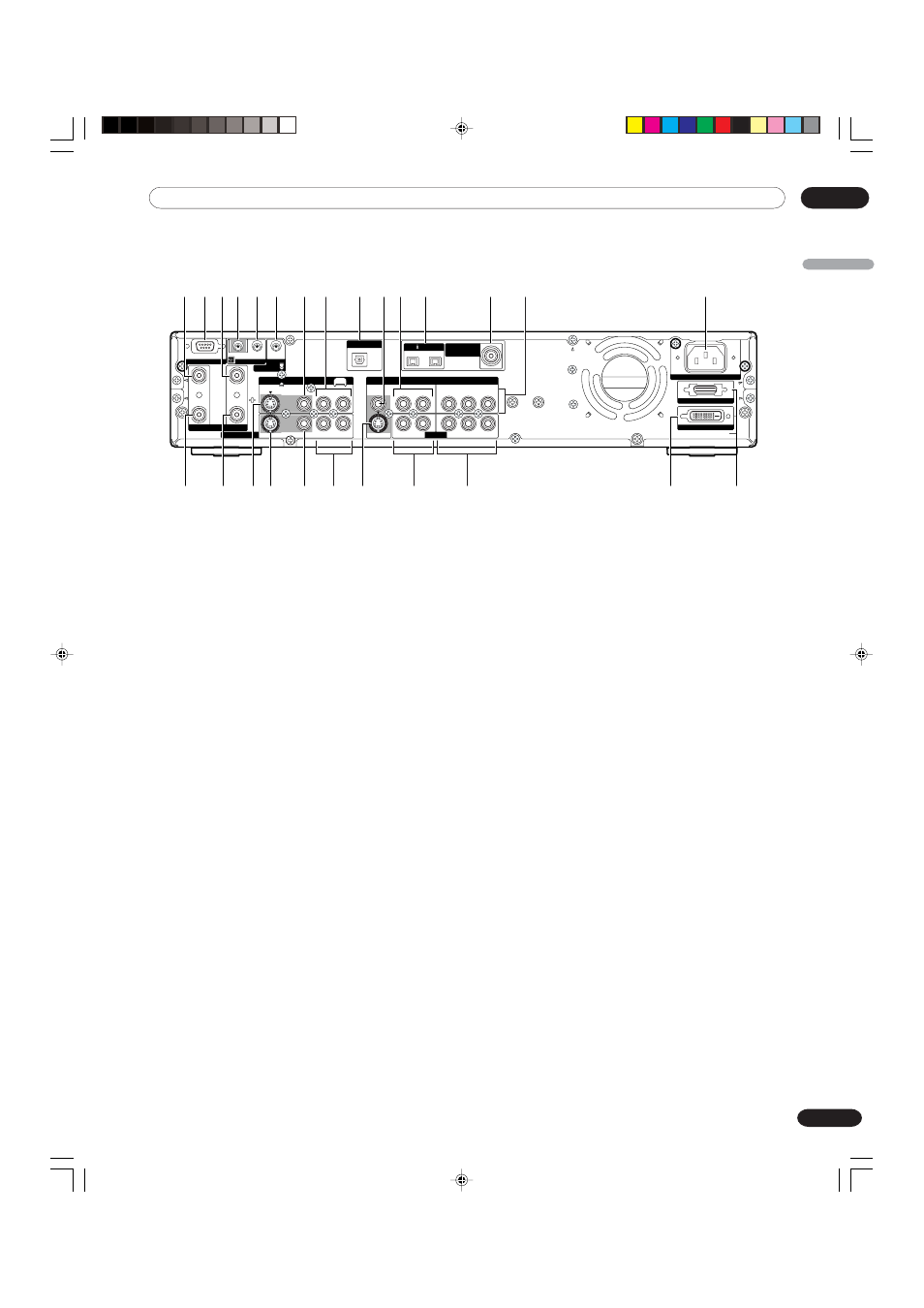

Rear view
1 Antenna A input terminal
2 RS-232C terminal (used in the factory
setup)
3 Antenna B input terminal
4 Control input terminal
5 Control output terminal
6 VCR control terminal
7 INPUT 2 terminal (VIDEO)
8 INPUT 2 terminals (AUDIO)
9 DIGITAL AUDIO output terminal
(OPTICAL)
0 INPUT 1 terminal (VIDEO)
- INPUT 1 terminals (AUDIO)
= i.LINK terminals
~ DTV Antenna input terminal
! INPUT 1 COMPONENT VIDEO terminals
(Y, C
B/
P
B
, C
R/
P
R
)
@ AC INLET terminal
# Antenna A output terminal
$ Antenna B output terminal
% INPUT 2 terminal (S-VIDEO)
^ MONITOR OUT terminal (S-VIDEO)
& MONITOR OUT terminal (VIDEO)
* MONITOR OUT terminals (AUDIO)
( INPUT 1 terminal (S-VIDEO)
) INPUT 3 terminals (AUDIO)
_ INPUT 3 COMPONENT VIDEO terminals
(Y, C
B/
P
B
, C
R/
P
R
)
+ SYSTEM CABLE terminal (WHITE)
¡ SYSTEM CABLE terminal (BLACK)
I N
SERVICE ONLY
MONITOR OUT
DIGITAL OUT
OPTICAL
INPUT 1
COMPONENT VIDEO
S400
DTV-ANTENNA
IN
INPUT 3
VCR
CONTROL
A ANTENNA/CABLE B
OUT
I N
I N
OUT
CONTROL
OUT
S-VIDEO
S-VIDEO
S-VIDEO
R-AUDIO-L
R-AUDIO-L
Y
AC INLET
BLACK
WHITE
SYSTEM CABLE
R-AUDIO-L
R-AUDIO-L
Y
C
B
/P
B
C
B
/P
B
C
R
/P
R
C
R
/P
R
VIDEO
VIDEO
INPUT 2
(TS)
VIDEO
@
0
8
-
9
=
~
!
7
+
¡
#
$
% ^
&
*
(
)
_
2 3
1
4 5 6
