Panduit PTR3E User Manual

Page 19

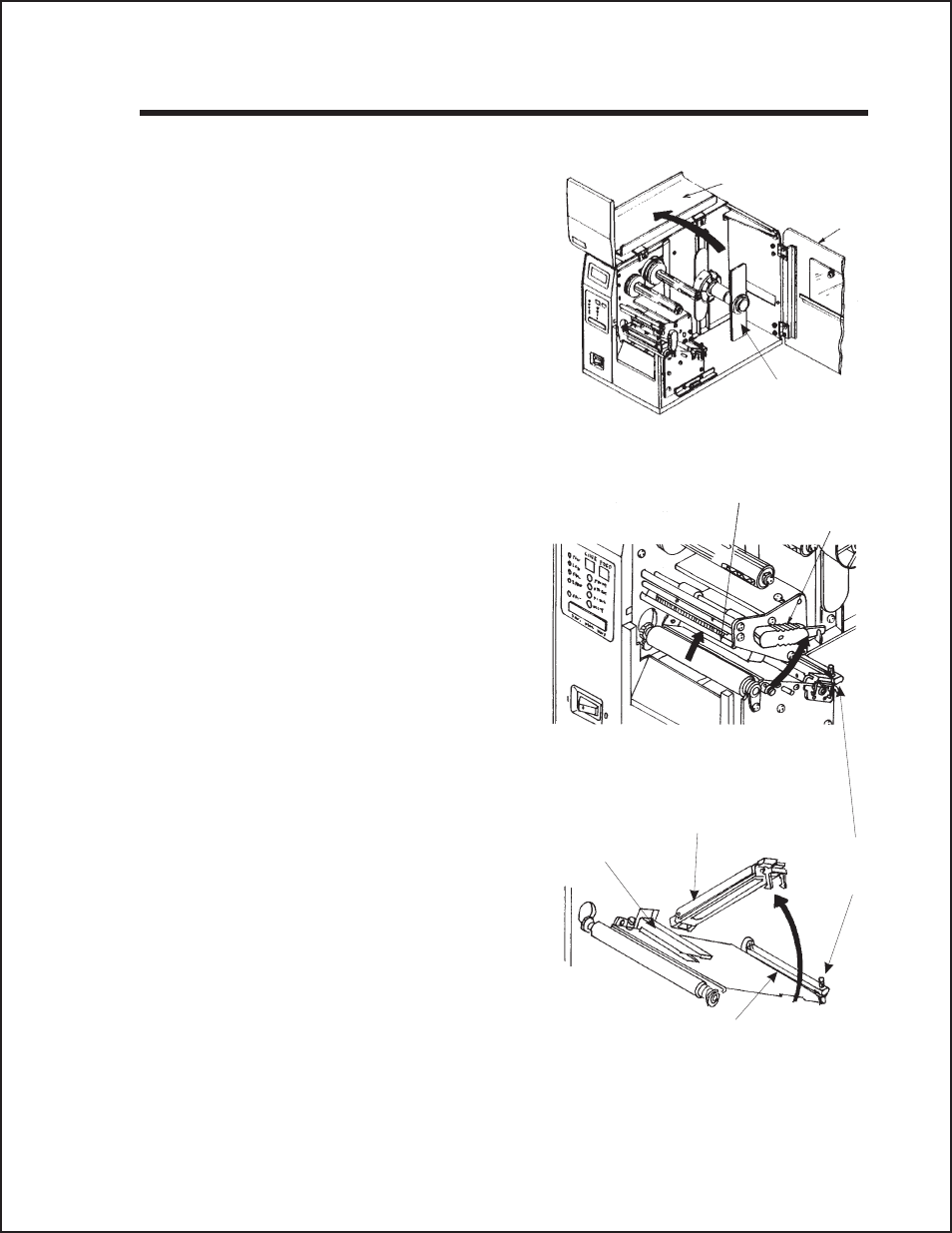

LOADING LABELS

Follow these steps to properly load labels into
the PTR3E:

1. Open the Top Access Door by

swinging it up and to the left. Open

the Side Access Door by

swinging it to the rear of the

printer.

2. Open the Print Head Assembly

by pushing the Head Latch

toward the rear of the printer. The

Print Head Assembly is

spring-loaded

and

will

automatically open as soon as the

Head Latch is disengaged.

3. Loosen the Label Edge Guide

and push it to the outside of the

printer to give the maximum label

width.

4. Remove the Label Roll

Retainer.

Section 2. Installation

Top Access Door

Side Access

Door

Label Roll

Retainer

Label Hold Down

Label Guide

Sensor

Assembly

Label

Edge

Guide

Print Head

Head Latch
