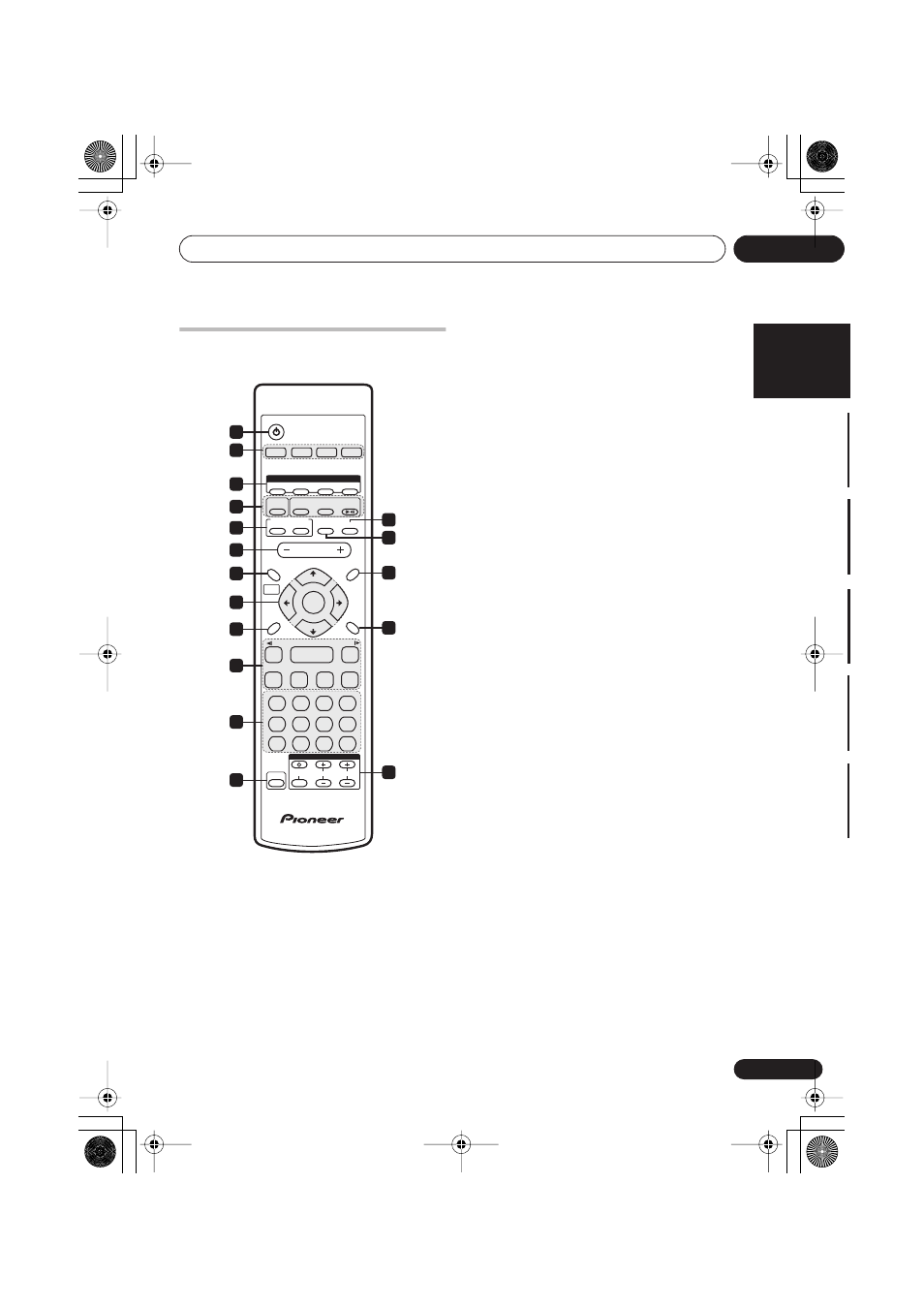

Remote control
Illustration shows the EV700/1000 model
1 STANDBY/ON
Switches the player on or into standby.
2 Input source function select
Selects the source you want to listen to.
3 DVD control buttons
AUDIO – Selects the audio channel or
language (page 33).
SUBTITLE – Selects a subtitle display
(page 33).
ANGLE – Changes the camera angle
during DVD multi-angle scene playback
(page 33).
ZOOM – Changes the zoom level
(page 33).
4 Sound Field / DSP buttons
X.BOOM – Switches the bass boost on or
off (page 39).
SFC / SOUND FIELD (EV500 only)
Selects sound modes or custom settings
from the Sound Field Control (page 39).
SURROUND (EV700/1000 only) – Selects a
surround listening mode (page 25)
ADVANCED (EV700/1000 only) – Selects an
advanced listening mode (page 26)
FRONT SURROUND (EV700/1000 only) –
Switches on the Front Surround mode
(page 26).
5 KARAOKE controls
KARAOKE – Selects audio channels for
karaoke (page 38).
ECHO – Changes the echo level on the
karaoke mics (page 38).
KEY CONTROL – Lowers/raises the pitch
of the backing track (page 38).
6 VOLUME
Adjusts the volume level.
7 HOME MENU
Press to display (or exit) the on-screen
menu for Initial Settings, Play Mode
functions, etc.
SYSTEM SETUP ( SHIFT + HOME MENU )
Use to make various system and surround
sound settings (page 48 and (
EV700/1000
only ) page 24). Also used when
automatically saving station presets when
using the tuner (page 37).
8 ENTER , TUNE & cursor control buttons
Navigates on-screen displays and menus.
ENTER selects an option or executes a
command.
1 2 3
4 5 6
7 8 9 0
CLEAR
ENTER
SYSTEM SETUP
HOME
MENU
TOP MENU
DVD MENU
SHIFT CHANNEL VOLUME INPUT
SUBTITLE
VOLUME
ANGLE ZOOM
SURROUND ADVANCED
FRONT
SURROUND
ECHO
DSP
AUDIO
DVD/CD TAPE FM/AM LINE
X.BOOM
PROGRAM
ST.MEMORY
TEST TONE
REPEAT
MONO
CH LEVEL
RANDOM
TIMER
KARAOKE
I — KEYCON — i
DISPLAY MUTE
RETURN SOUND
MODE
ENTER
STANDBY/ON
4
/ e E/
1 ¡
¢ 8 7
3
3 3
TUNE +
ST + ST –
TUNE –
DVD
TV CONTROL
1
2
3
6
7
8
9
10
11
12
16
17
15
13
14
4
5
