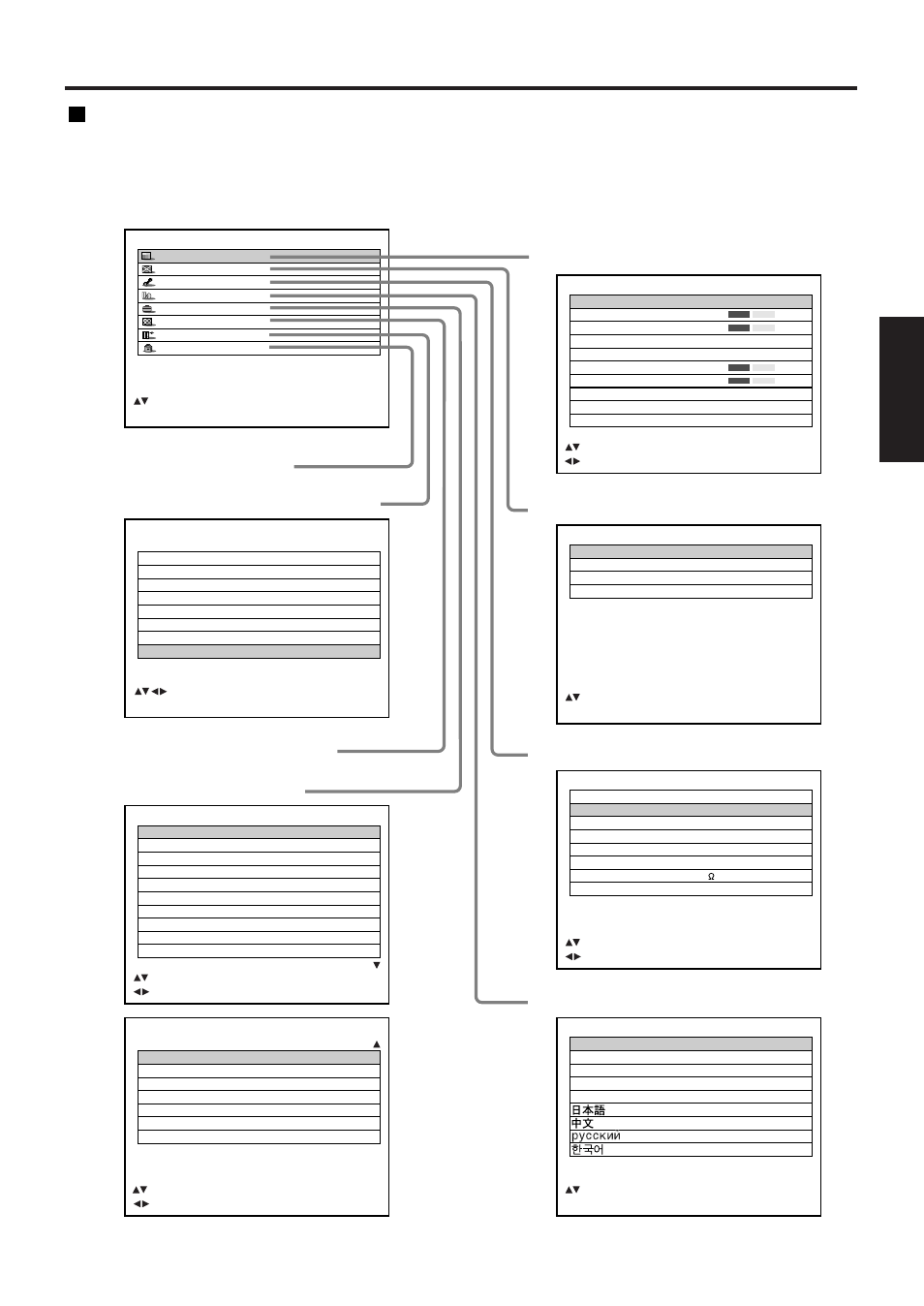

Structure of menu screens
Menus are extensively used for configuring, adjusting or reconfiguring the projector.
The menus structure is as follows:
MAIN MENU
POSITION
ADVANCED MENU
LANGUAGE
OPTION
TEST PATTERN
SIGNAL LIST
SECURITY
:MENU SELECT
ENTER:SUB MENU
PICTURE MODE
DYNAMIC
COLOR 50
TINT 30
COLOR TEMP. DEFAULT
GAMMA 2.2
CONTRAST 32
BRIGHT 32
SHARPNESS 6
NOISE REDUCTION 2
DYNAMIC IRIS 1
:MENU SELECT
:CHANGE ENTER:REGISTER
POSITION
SHIFT
SIZE
DEFAULT
CLOCK PHASE 0
KEYSTONE
:MENU SELECT
ENTER:SUB MENU
SIGNAL LIST
A1:SVGA72-A1 RGB1 – – –
A2:SVGA72-A2 RGB1 – – –
A3:SVGA72-A3 RGB1 – – –
A4:SVGA72-A4 RGB1 – – –
A5:SVGA72-A5 RGB1 – – –
A6:SVGA72-A6 RGB1 – – –
A7:SVGA72-A7 RGB1 – – –
A8:SVGA72-A8 RGB1 – – –
:SELECT ENTER:DETAILS STD:DELETE
OPTION
PROJECTOR ID
2
SETTING FRONT-F
LAMP SELECT DUAL
LAMP POWER HIGH
RS232C SETTING
OSD POSITION
2
SYSTEM INFORMATION
COLOR MATCHING
OFF
VIDEO SETTING
AUTO SETUP
:MENU SELECT
:CHANGE
ADVANCED MENU
DIGITAL CINEMA REALITY AUTO
FORMAT
SMPTE
BLANKING
INPUT RESOLUTION
CLAMP POSITION
EDGE BLENDING
OFF
SYNC.TERM 75
RASTER POSITION
:MENU SELECT
:CHANGE
OPTION
OUTPUT RESOLUTION SXGA+
AUTO SIGNAL ON
FAN CONTROL NORMAL
P IN P OFF
FUNC1 P IN P
DVI EDID EDID2 (PC)
PASSWORD
:MENU SELECT
:CHANGE
LANGUAGE
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
:SELECT ENTER:SET
LANGUAGE (page 62)
OPTION (pages 64-73)
TEST PATTERN (page 77)
SECURITY (page 78)
SIGNAL LIST (pages 38 and 39)
POSITION (pages 51-54)
ADVANCED MENU (pages 55-61)
MAIN MENU
PICTURE (pages 45-50)
On-screen menus
