Signal Selector TW-SWS
Digital broadcasting
tuner
DVD player
Signal selector
Video deck
(TBC built-in)
Notebook computer
Control PC
Note • When multiple signals of the same type are switched and input to RGB1 IN (for example, when
switching multiple high-vision signals for usage), use a dedicated signal selector. When the signal
selector is connected to the projector with a RS-232C cable, signals can be used separately
according to the input terminal on the signal selector.
• Carefully read also the instruction manual for the signal selector.

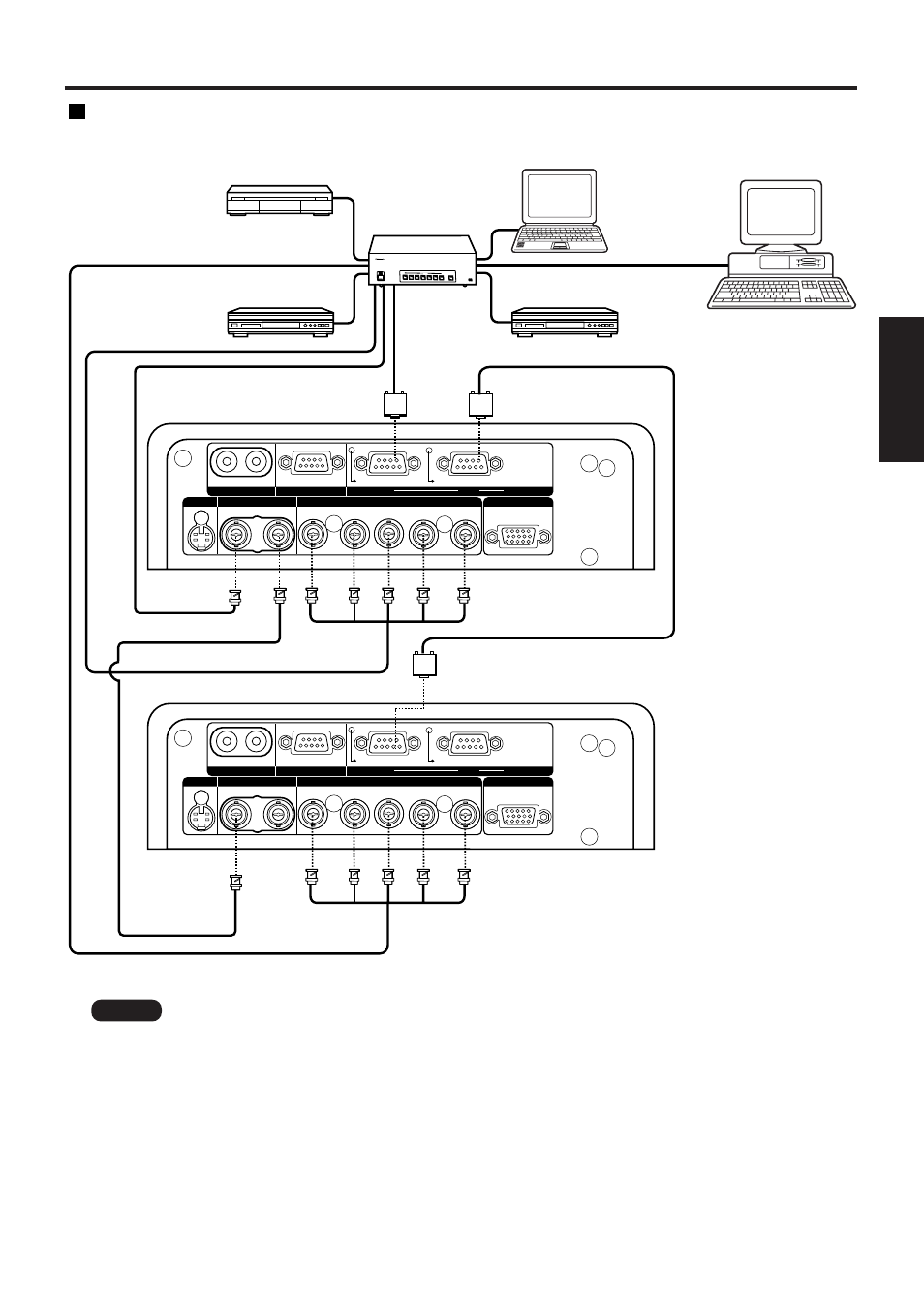

Example of connecting with the signal selector
