Error messages
When a warning occurs in this unit, the warning lamp lights up.
Opening the DIAG menu will display the warning description on the counter display and the
monitor. Also, when an abnormal operation is detected in this unit, the AUTO OFF lamp lights
up and a message appears on the counter display.
DIAG menu
This display the VCR information.
VCR information includes “WARNING” information, serial number of the unit and “HOURS
METER” (usage time) information. A DIAG menu appears on the monitor when the monitor is
connected to the VIDEO OUT 3 connector on the connector section.

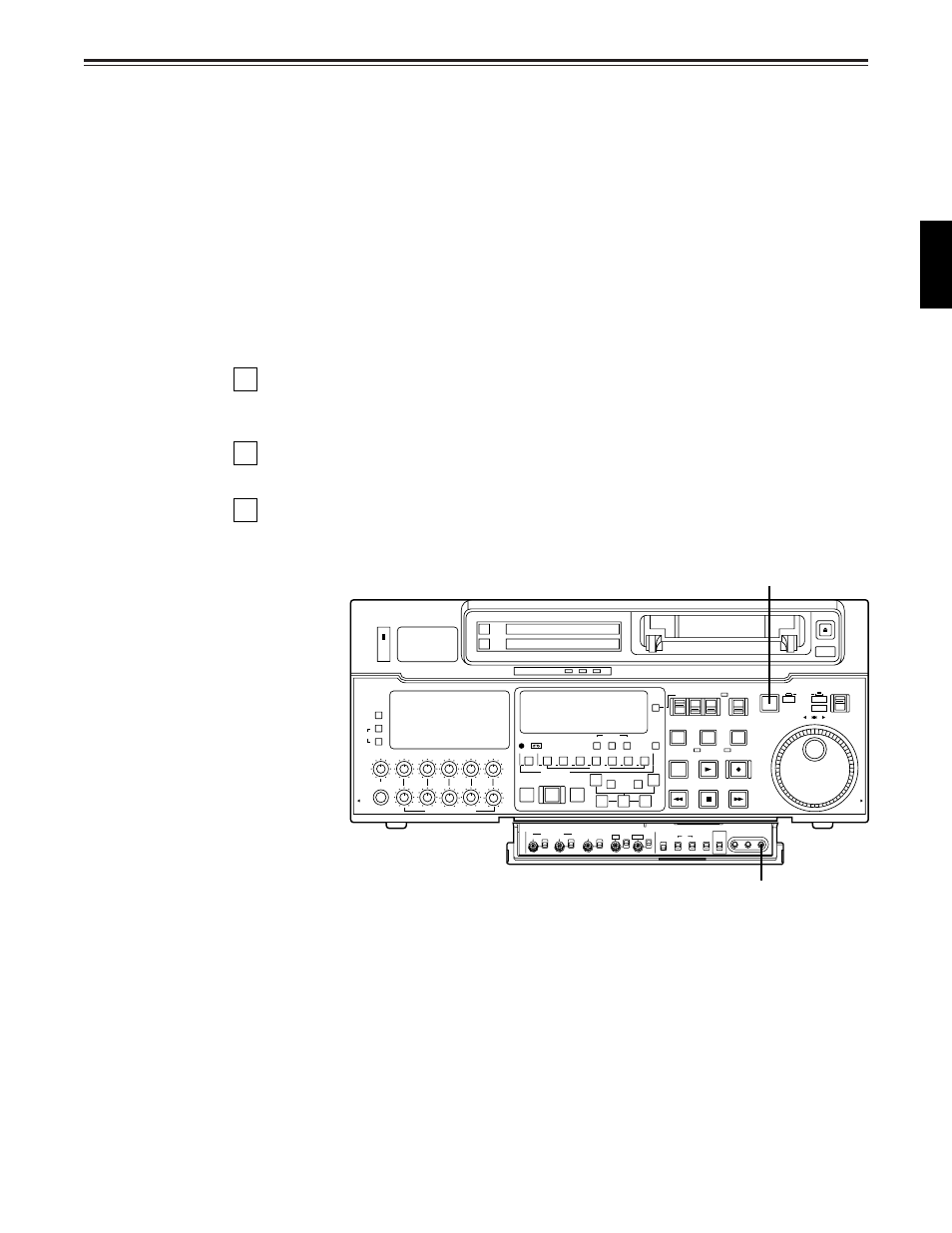

Displaying the DIAG menu
1
Press the DIAG button.
The DIAG menu screen is displayed on the monitor, and the message is displayed on
the counter display.
2
The “WARNING” information, serial number of the unit and “HOURS METER” informa-
tion can be switched by pressing the search buttons.
3
Press the DIAG button again to return to the original display.
POWER
ON
OFF
L
LEVEL CH4 CUE
DVCPRO
AUDIO ANALOG
VIDEO Y PB PR
AES/EBU USER SET
CMPST
INPUT SELECT
SDI
CH CONDITION
SCH CF
SHIFT ADJ START RESET
STAND BY
UB EXT EE
TC INT
TC MODE
TAPE
LOCAL REV FWD
PULL
OPEN
JOG
PUSH
EJECT
AUTO OFF
SHTL
SLOW
CONTROL
REMOTE
EDIT
REW
PLAY
SERVO
STOP
PLAYER
REC
REC INHIBIT
FF
RECORDER
TC/CTL
TC SET
INSERT
CH2
TRIM
SET OUT IN
CH3 CH4 CUE TC
AUTO EDIT PREROLL
PREVIEW
REVIEW
REC
PB
PULL FOR VARIABLE
PULL
OPEN
HEADPHONES
CH1 CH2
R
METER
FULL/FINE
MONITOR SELECT
W
– +
SDI SDTI(V&A)
ASMBL VIDEO CH1
4 5 6 7 3 2 1
A
OUT
A
IN
MULTI CUE
CH3
8
SLOW MOTION
PRESET PRESET PRESET PRESET REGEN
PRESET FREE RUN
REC RUN
MANUAL MANUAL MANUAL MANUAL
VIDEO LEVEL CHROMA
LEVEL
SET UP HUE CF TC REC INHIBIT
MENU SET DIAG
4F/8F
2F
ON
OFF
PRESET
MANUAL
OUT IN BLK CHROMA PH
625
525
TV SYSTEM
1, 3
2
“WARNING” information display
• A warning message is displayed whenever a warning occurs (the warning lamp lights up).
When warnings have not been detected, “NO WARNING” is displayed.
• When multiple warning occur, the descriptions for each warning can be checked by turning
the search dial.
