About Your Projector
E
NGLISH - 13

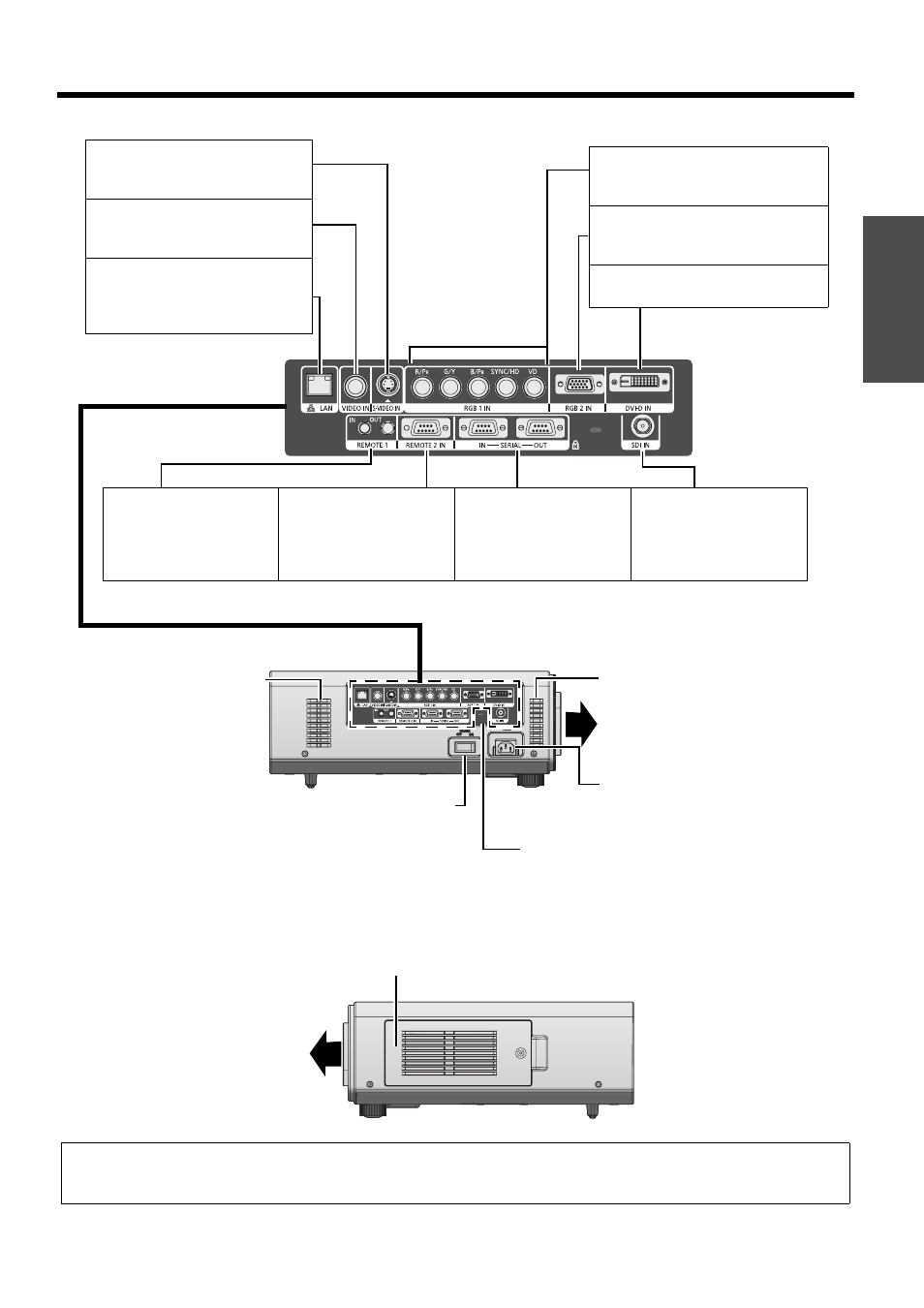

J Side views
NOTE:
• Switch on the POWER button of the projector body that is located near the terminals before using the control buttons.
• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.
Auto Cleaning Filter (ACF) compartment (page 31)
POWER button
Switch the projector on/off. (page 20)
AC IN terminal
Connect the power cord to supply
electronic power to the projector.
(page 20)
Air intake port Air intake port
Security lock
Attach the commercial shackle lock, manufactured
by Kensington, to protect your projector.
Compatible with the Kensington MicroSaver
Security System.
S-VIDEO IN
Connect an S-VIDEO signals.
(Mini DIN 4 pin)
VIDEO IN
Connect a video signals.
(BNC)
LAN
Connect a LAN cable for network
connection.
(10BASE-T/100BASE-TX)
RGB 1 IN
Connect an RGB or YP
B P R signals.
(3, 4 or 5 wire BNC)
RGB 2 IN
Connect an RGB or YP
B P R signals.
(D-SUB 15 pin female)
DVI-D IN
Connect a single link DVI-D signals.
REMOTE 1 IN/OUT
Connect a cable from the
remote control or another
projector.
(M3 jack) REMOTE 2
Connect a cable from an
external control circuit.
(D-sub 9 pin female) SERIAL IN/SERIAL OUT
Connect an RS-232C cable
from/to a computer. SDI IN (PT-DZ6710U only)
Connect a cable from a
computer.
