9
8
CLONE
PORT VIDEO AUDIO
RF IN
S-VIDEO AUDIO
Component
Side Down
CLONE
PORT VIDEO AUDIO
RF IN
VIDEO AUDIO
4
Component
Side Up
2
3
2
1
1
Net1Card and
Cover Assembly
Guide Pin
32 Pin Connector
Rear of Smart Card
Television
RF IN (Antenna Jack)
Hex Head Screws
VIDEO VIDEO AUDIO AUDIO
RF IN RF IN
S-VIDEO S-VIDEO S-AUDIO S-AUDIO
CLONE CLONE
PORT PORT
Clone Port - 6 Pin
Connector for limited
applications.
AUDIO / VIDEO Inputs. For
connection to video / audio
equipment with phono jacks.
S-VIDEO / S-AUDIO Input. For con-
nection to video / audio equipment with
S-Video / S-Audio out jacks
RF IN -
Antenna/Cable
75 Ω Input
N
ET
1C
ARD
A
SSEMBLY

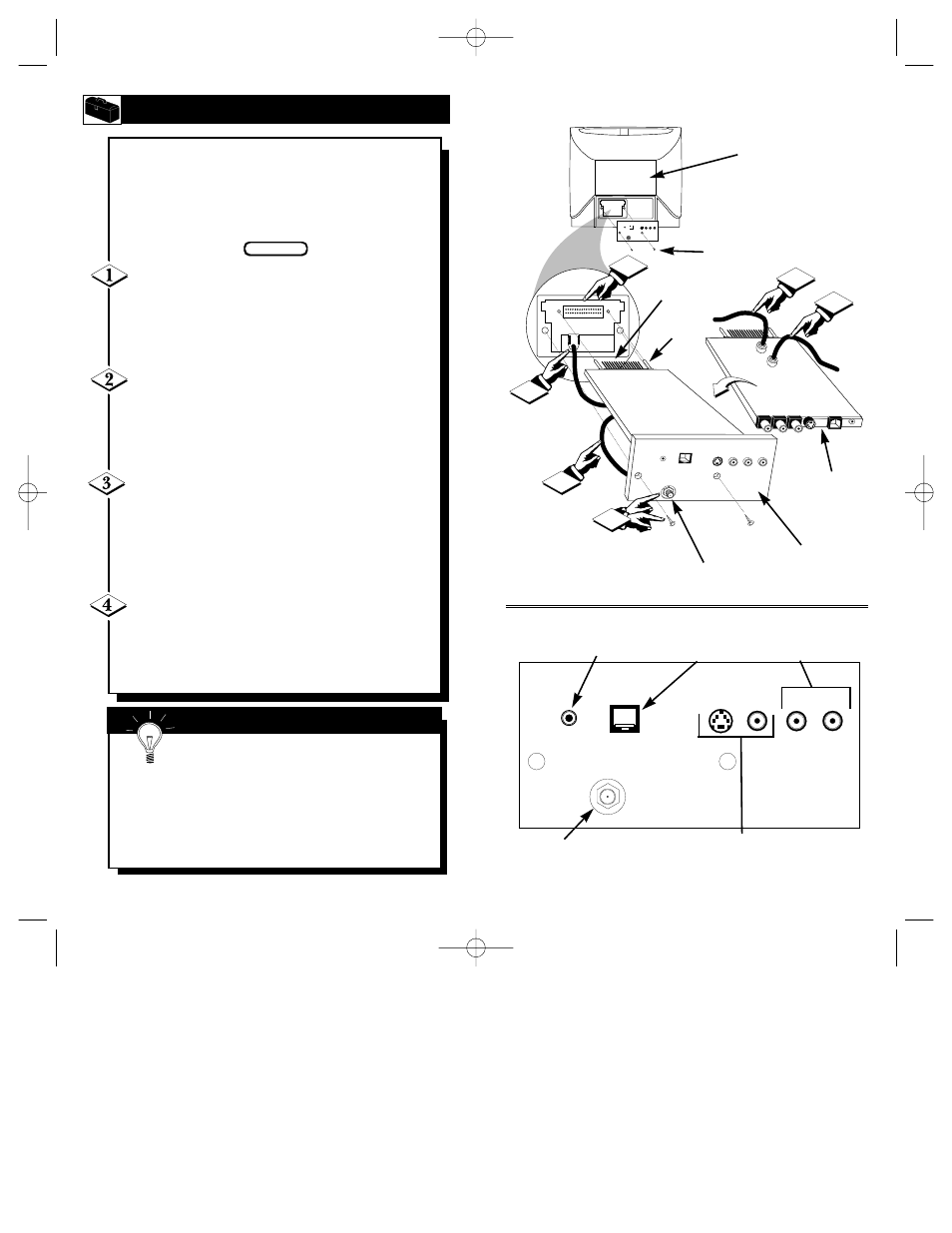

I nstallation of Net1Card is easy. Remember
to follow these instructions, be patient, and
use the T374AH Set Up Remote Control (see
T374AH Remote Control Instructions - part #
IB7166E002 for complete details).
Disconnect the cable from the RF IN (anten-
na) jack inside the TV. Then, connect the cable
onto the yellow plug farthest from the 32-pin con-
nector at the rear of the Circuit and Panel Board.
Connect the RF cable (included) onto the yel-
low plug closest to the 32-pin connector on the
Circuit and Panel Board. Then, connect the other
end of the cable to RF IN jack inside the TV.
Now, insert the Net1Card (with its compo-
nents facing down) into the back of the TV. Line
up and guide the 32-pin connector. Note: there are
guide pins to help properly insert the card. Gently,
but firmly, press the card into place.
Finally, insert the RF IN jack through the
hole on the Net1Card Assembly Cover and secure
it in place with the hex head retaining nut. Once
done, attach the Cover to the back of the TV using
the hex head screws.
BEGIN
Be sure to align the 32 pin connector before
pressing into place. Never force the Net1Card into
the connector. If it will not go in smoothly, realign the
guide pins and try again. Do not use the Net1Card jacks
to push the card assembly into place. Push on the cover
directly behind the card itself.
If your RF IN cable will not disconnect from the Monitor
Cover, call (800) 851-8885 to order a replacement cable.
S
MART
H
ELP
Speaker Jack - For con-
necting external speakers.
Net1Card
