Speakers, Picture 7 – PACKARD BELL EasyNote B3 User Manual
Page 8
7

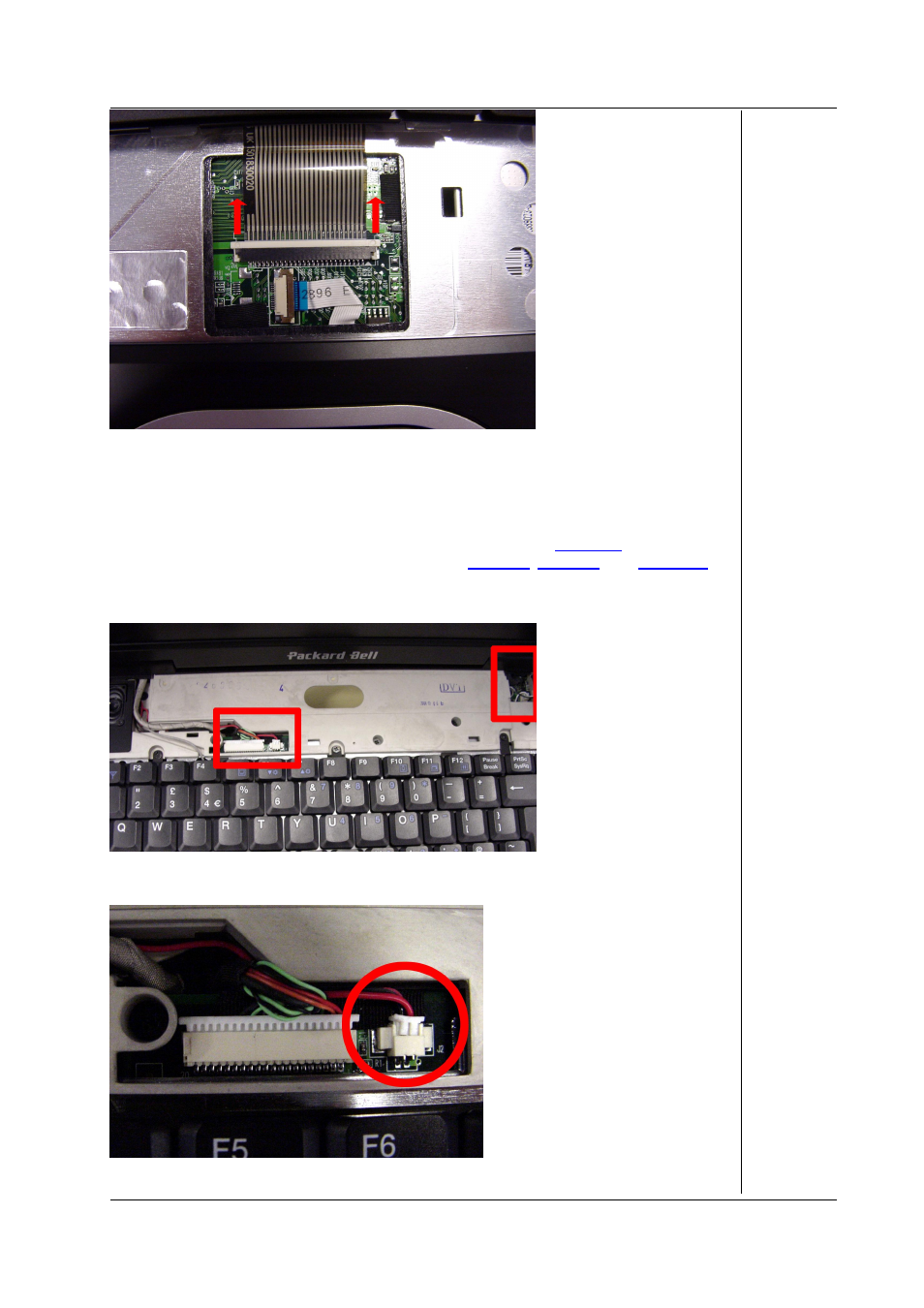

Picture 7. Keyboard Flat Cable
Speakers
To remove the speakers, perform the following steps:
1. Remove the keyboard cover as described in the chapter
2. Disconnect the speaker cables as shown in
,
, and
.
3. Remove the screws securing the speaker (2 screws per speaker).
4. Lift out the speakers.
Picture 8. Speaker Cable Connector
Picture 9. Left Speaker Connector
