Philips DVDR3300H - Manual (Page 21)

21
Antenna
Satellite
Cable
Step 2: Optional Connections
(continued)
C
A
B
D
TIPS: Refer to your optional connected devices’ user manual for other possible connections.
Satellite Receiver/
Cable Box
E
F
VCR

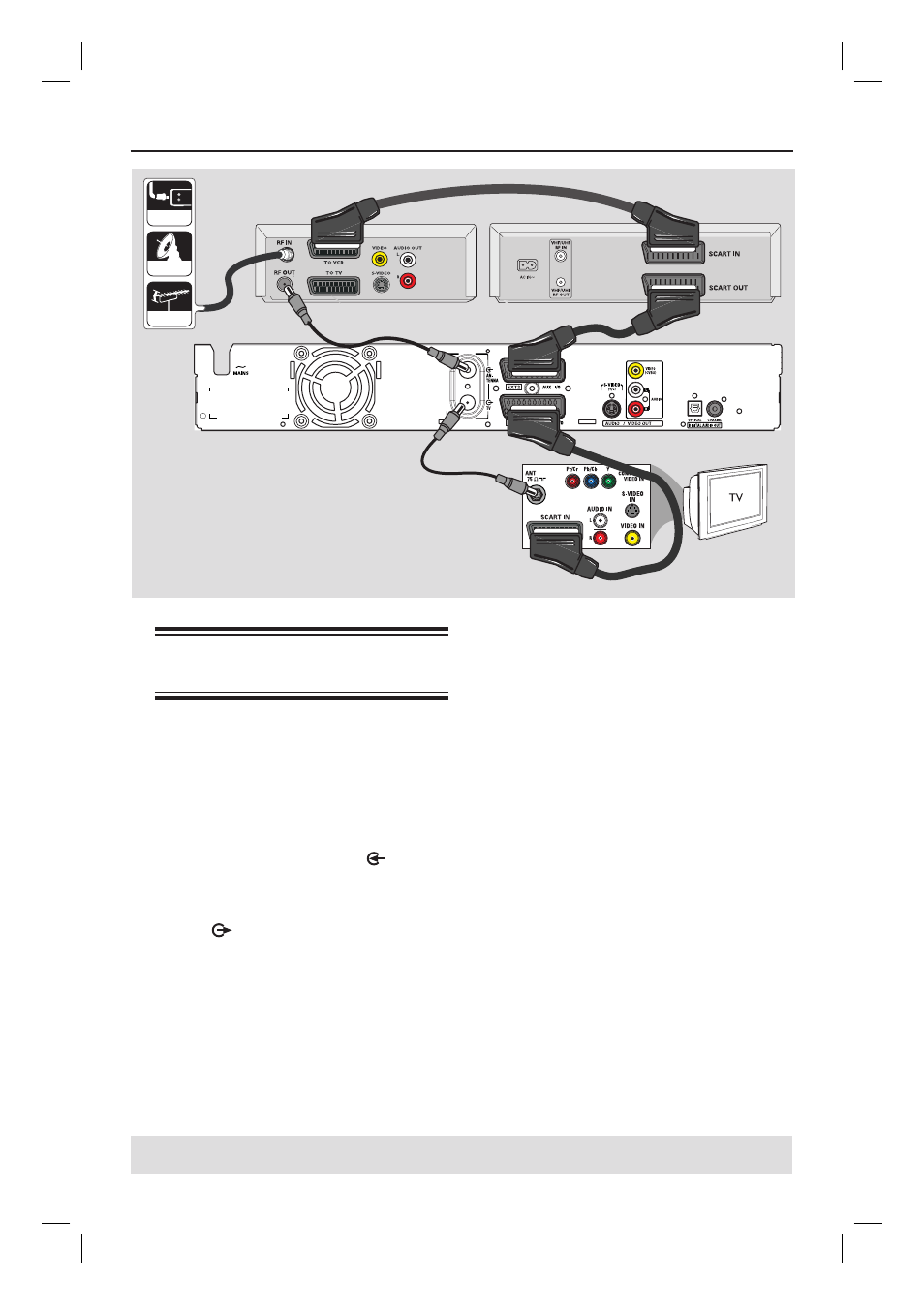

Connecting to a VCR and
Cable Box/Satellite Receiver
A Keep the existing aerial connection from
the Cable Box/Satellite Receiver to your
TV.
B Use the supplied RF coaxial cable to
connect the aerial output (RF OUT)
socket on the Cable Box/Satellite
Receiver to the ANTENNA
socket
on the recorder.
C Use another RF coaxial cable to connect
the TV socket on the recorder to the
aerial input socket on the TV.
D Use the scart cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
E Use another scart cable to connect the
EXT2 AUX-I/O socket on the recorder
to the Scart output socket (or labelled as
TV OUT or TO TV) on the VCR.
F Use another scart cable to connect the
Scart input socket (or labelled as TV IN
or TO DECODER) on the VCR to the
Scart output socket (or labelled as
TV OUT or TO VCR) on the Cable Box/
Satellite Receiver.
Aerial
