MAINTENANCE AND LUBRICATION

Adjustments

Side Panel Removal

NOTE: Side panel removal may be difficult until the locking tabs and

receivers have been snapped and unsnapped a few times.

1. Remove the seat.
2. Grasp the rear of the side

panel near the rear cab. With

a quick and firm motion, pull

the panel forward and outward

to disengage the two rear tabs.

3. Place your hand on top of the

side panel behind the fuel

tank. With a quick and firm

motion, push down on the side

panel to disengage the top rear

two tabs. Then pull up on the

side panel to disengage the

front upper and lower tabs.

4. To reinstall the side panel,

align the panel tabs with the

slots on the front cab. Push

the panel upward and forward

until the tabs lock. Bend the

rear of the side panel and

insert the two tabs into the rear

cab.

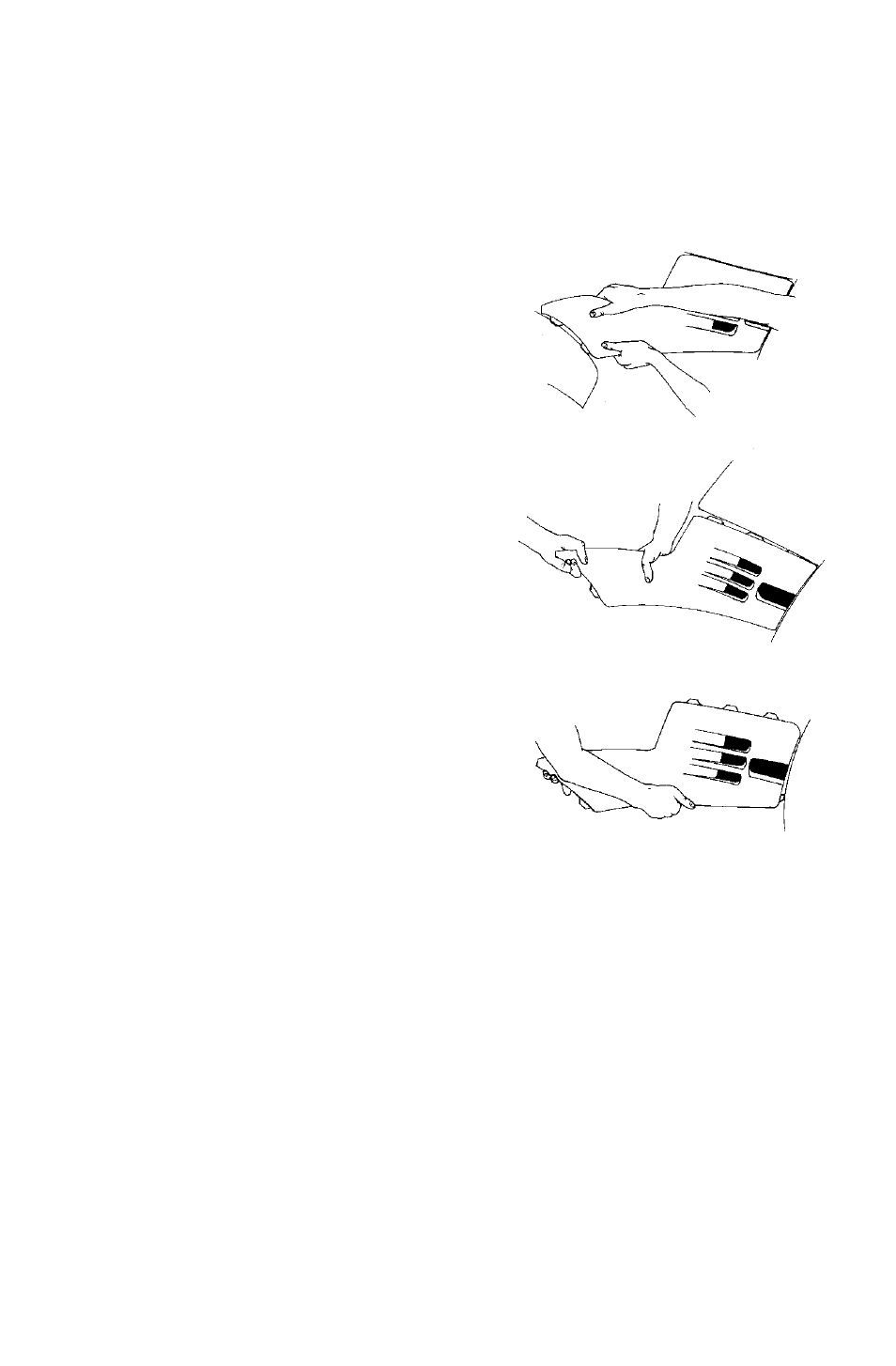

Step 2

Step 3

Step 4
