9
English
3139 115 20411
Preparations

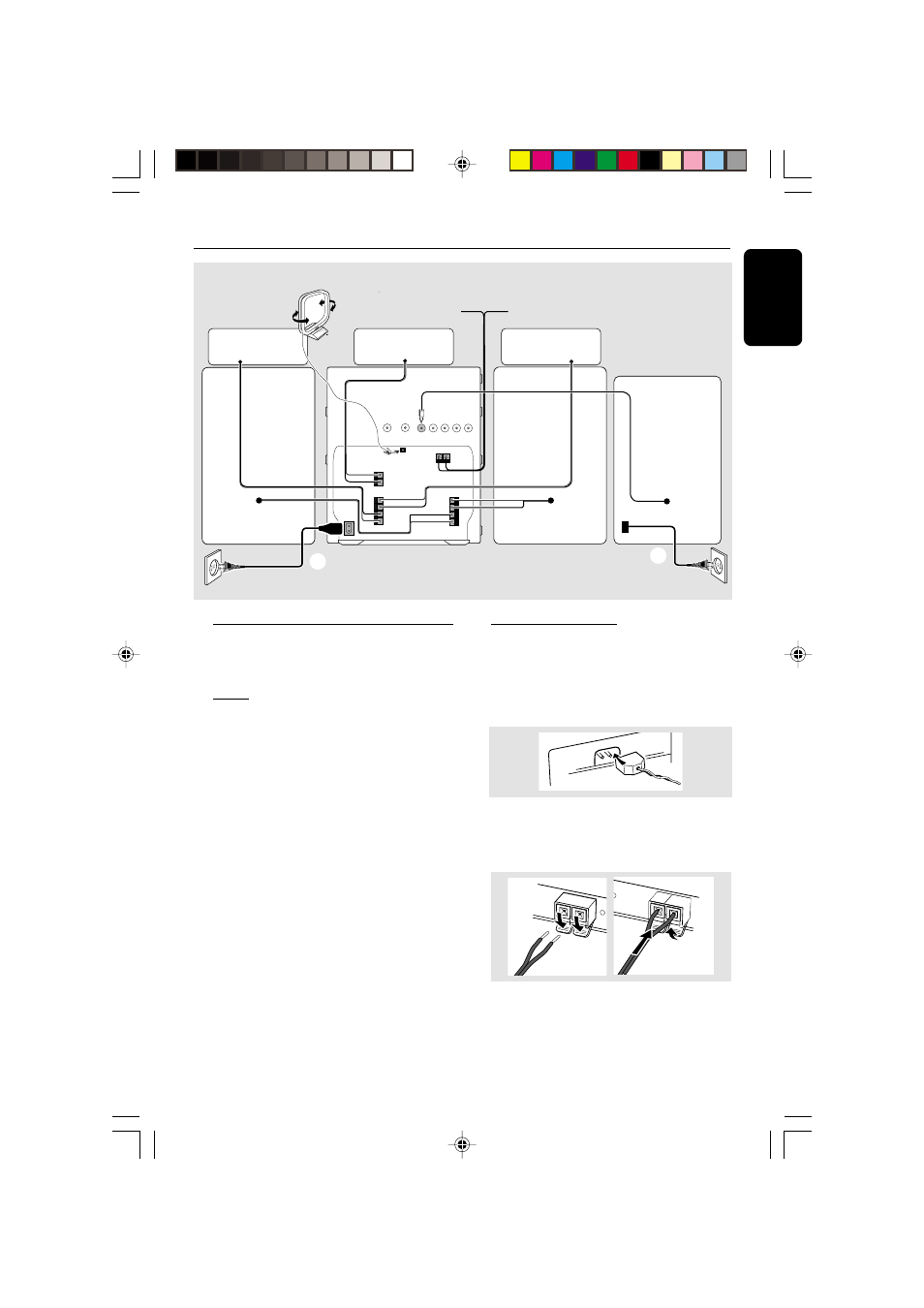

Rear Connections
The type plate is located at the rear of the
system.
A
Power
Before connecting the AC power cord to the
wall outlet, ensure that the following are done;
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
– All other connections have been made.
WARNING
– For optimal performance use only the
original power cable.
– Never make or change connections with
the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
B
Antennas Connection
Connect the supplied AM loop/FM antenna to
the respective terminal. Adjust the position of
the antenna for optimal reception.
AM Antenna
● Position the antenna as far as possible from a TV,
VCR or other radiation sources.
FM Antenna
1
2
● For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.
AM ANTENNA
AUX/CDR IN
SUB-
WOOFER OUT
DIGITAL
OUT LINE OUT
L R L R
AC
MAINS
~
REAR
SURROUND
L
+
–
R
–
+
FRONT
speaker
(right)
L
+
–
R
–
+
SURROUND
OUT
FM ANTENNA 300 Ω
CENTER
center speaker
+
–
A
speaker
(left)
left
surround
right
surround
AM loop antenna
FM wire antenna
AC power cord
subwoofer
A
B
C
D
AC power cord
