8. Help
59 For Fax Advantage assistance, call 1-800-435-7329.

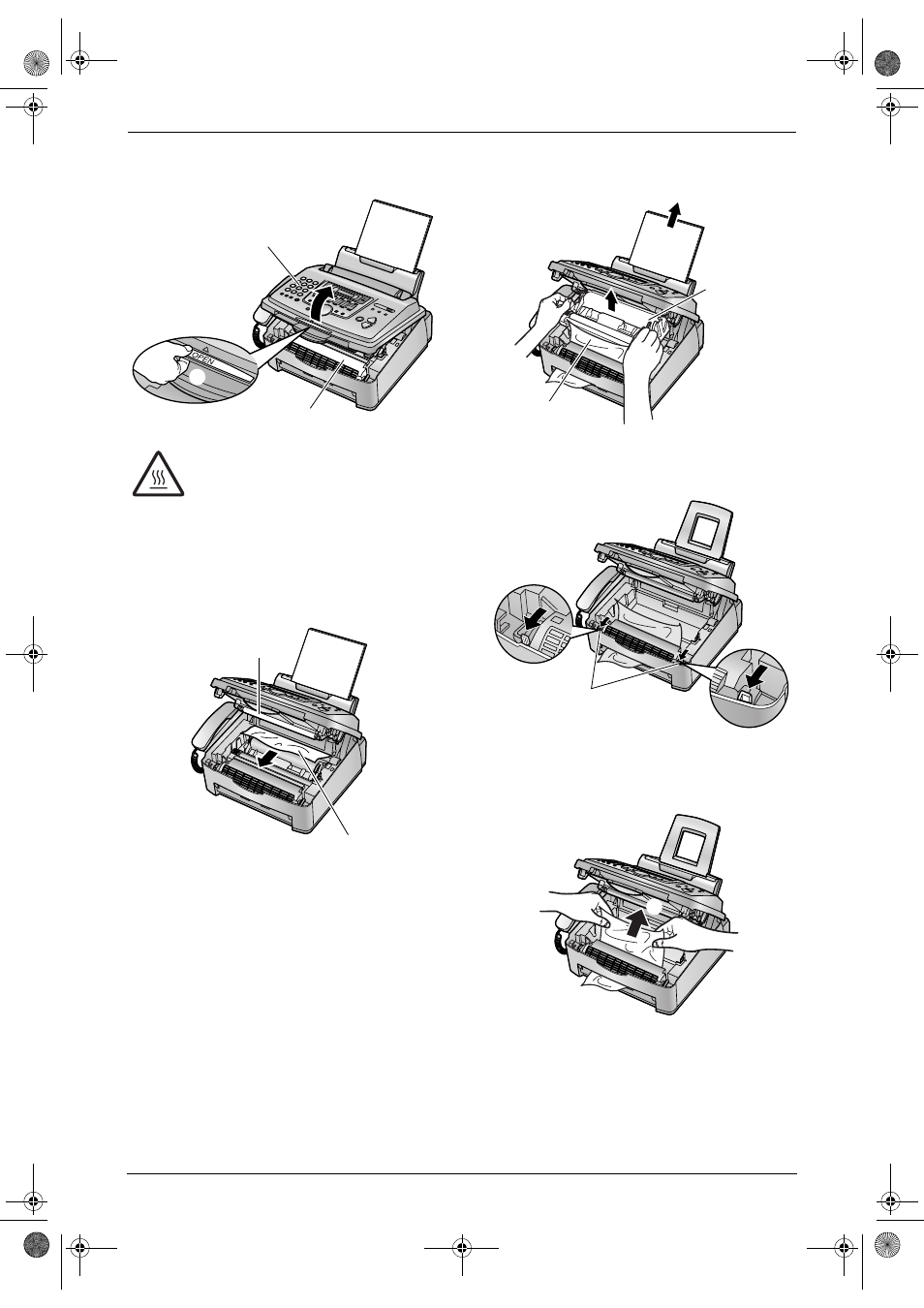

1 Lift open the front cover ( 1), holding OPEN
(
2).
2 Remove the jammed paper.
When the recording paper has jammed
near the drum and toner unit:
Remove the jammed paper ( 1) carefully by
pulling it toward you.
L Do not touch the transfer roller (
2).
When the recording paper has jammed
near the recording paper exit:
1. Remove the recording paper (
1), then
remove the drum and toner unit (
2) to
allow the jammed paper ( 3) to pull free
from the rear cabinet.
2. Lift both green levers ( 1) forward until
they stop.
3. Remove the jammed paper ( 1) from the
fuser unit by pulling it upwards carefully,
then install the drum and toner unit.
Caution:
The fuser unit (
3) gets hot. Do not
touch it.
