Poulan 177110 User Manual
Page 8
8
TO DRIVE TRACTOR OFF SKID (See
Operation section for location and
function of controls)
WARNING: Before starting, read,
understand and follow all instructions in
the Operation section of this manual. Be
sure tractor is in a well-ventilated area. Be
sure the area in front of tractor is clear of
other people and objects.
• Be sure all the above assembly steps
have been completed.
• Check engine oil level and fill fuel tank
with gasoline.
• Sit on seat in operating position,
depress clutch/brake pedal and set the
parking brake.
• Place gear shift lever in neutral (N)
position.
• Press lift lever plunger and raise
attachment lift lever to its highest
position.
• Start the engine. After engine has
started, move throttle control to idle
position.
• Depress clutch/brake pedal into full
“BRAKE” position and hold. Move
gearshift lever to 1st gear.
• Slowly release clutch/brake pedal and
slowly drive tractor off skid.
• Apply brake to stop tractor, set parking
brake and place gearshift lever in
neutral position.
• Turn ignition key to “OFF” position.
Continue with the instructions that follow.
TO ROLL TRACTOR OFF SKID (See
Operation section for location and
function of controls)
• Press lift lever plunger and raise
attachment lift lever to its highest
position.
• Release parking brake by depressing
clutch/brake pedal.
• Place gearshift lever in neutral (N)
position.
• Roll tractor forward off skid.
• Remove banding holding deflector
shield up against tractor.

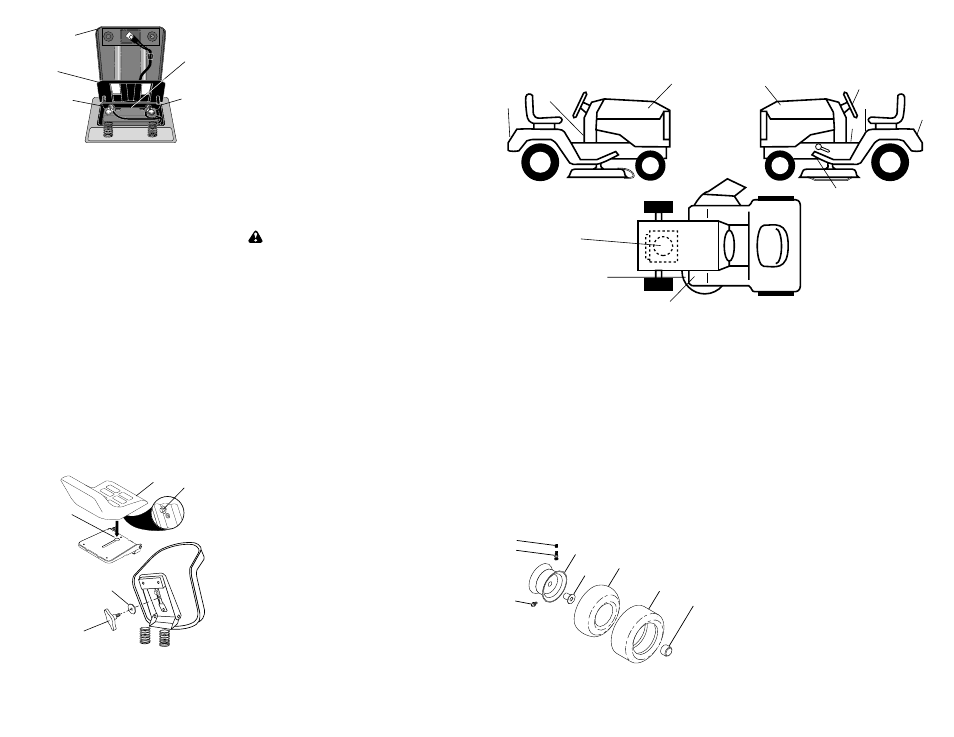

Battery Box
Door
Seat Pan
Label
Terminal
Terminal
INSTALL SEAT
Adjust seat before tightening adjustment
knob.
•
Remove adjustment knob and flat
washer securing seat to cardboard
packing and set aside for assembly of
seat to tractor.
•
Pivot seat upward and remove from
the cardboard packing. Remove the
cardboard packing and discard.
•
Place seat on seat pan so head of
shoulder bolt is positioned over large
slotted hole in pan.
•
Push down on seat to engage
shoulder bolt in slot and pull seat
towards rear of tractor.
•
Pivot seat and pan forward and
assemble adjustment knob and flat
washer loosely. Do not tighten.
•
Lower seat into operating position
and sit in seat.
•
Slide seat until a comfortable position
is reached which allows you to press
clutch/brake pedal all the way down.
•
Get off seat without moving its
adjusted position.
•
Raise seat and tighten adjustment
knob securely.
NOTE: You may now roll or drive your
tractor off the skid. Follow the appropriate
instruction below to remove the tractor
from the skid.
Seat Pan
Shoulder
Bolt
Adjustment
Knob
Flat Washer
Seat
41
TRACTOR -- MODEL NUMBER 271470
DECALS
15
3
7
3
4
13
KEY PART
1
177109
Decal Lower Dash
2
176394
Decal Engine
3
171828
Decal Hood
4
171829
Decal Fender
5
145005
Decal Battery Danger
7
171830
Decal Steering
8
156867
Decal, Oper sdl P/L Gear
11
156439
Decal Fender Dnger
WHEELS AND TIRES
1
59192
Cap Valve Tire
2
65139
Stem Valve
3
106222X
Tire F Ts 15 X 6 0 - 6 Service
4
59904
Tube Front (Service Item Only)
5
106732X427 Rim Asm 6"front White Service
6
278H
Fitting Grease (Front Wheel Only)
7
9040H
Bearing Flange (front Wheel
Only)
8
106108X427 Rim Asm 8"rear White Service
9
124635X
Tire Rear
10
7152J
Tube Rear (Service Item Only)
11
104757X428 Cap Axle Blk 1 50 X 1 00
- -
144334
Sealant, Tire ( 10 oz. Tube)
6
2
1
5,8
4,10
3,9
11
7
8
11
2
1
12
KEY PART
12
4900J
Decal, Clutch/Brake Eng
13
146046
Decal V-Belt Dr Sch tractor
15
136832
Decal V-Belt sch
- -
138311
Decal Handle Lft Height
Adjust (Lift Handle)
- -
177110
Owner’s Manual, English
- -
177111
Owner’s Manual, Spanish
KEY PART
NO. NO.
DESCRIPTION
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
5
