12

The operation of any tractor can result in foreign objects thrown into the
eyes, which can result in severe eye damage. Always wear safety
glasses or eye shields while operating your tractor or performing any
adjustments or repairs. We recommend a wide vision safety mask over
spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE
Your tractor is equipped with an operator
presence sensing switch. When engine
is running, any attempt by the operator to
leave the seat without first setting the
parking brake will shut off the engine.
• Depress clutch/brake pedal into full

“BRAKE” position and hold.

• Place parking brake lever in “EN-

GAGED” position and release pres-
sure from clutch/brake pedal. Pedal
should remain in “BRAKE” position.
Make sure parking brake will hold
tractor secure.

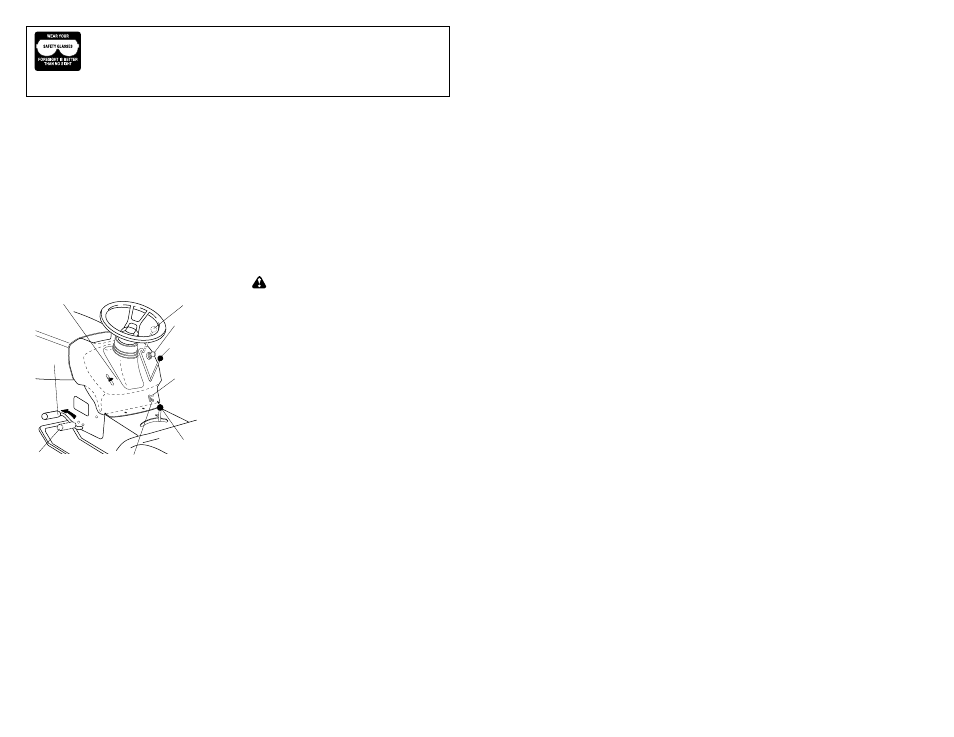

Attachment Clutch

Lever “Engaged”

Position

“Disengaged”
Position

Throttle/Choke
Control

Gearshift
Lever

“Brake”
Position

Parking
Brake
“Engaged”
Position

Clutch/
Brake
Pedal

“Disengaged”
Position

STOPPING

MOWER BLADES -
• To stop mower blades,move attach-

ment clutch lever to “DISENGAGED”
position.

GROUND DRIVE -
• To stop ground drive, depress clutch/

brake pedal into full “BRAKE” position.

• Move gearshift lever to neutral (N)

position.

ENGINE -
• Move throttle control to slow position.
NOTE: Failure to move throttle control to
slow position and allowing engine to idle
before stopping may cause engine to
“backfire”.

• Turn ignition key to “OFF” position and

remove key. Always remove key when
leaving tractor to prevent unauthorized
use.

• Never use choke to stop engine.
IMPORTANT: Leaving the ignition
switch in any position other than "OFF"
will cause the battery to be discharged,
(dead).
NOTE: Under certain conditions when
tractor is standing idle with the engine
running, hot engine exhaust gases may
cause “browning” of grass. To eliminate
this possibility, always stop engine when
stopping tractor on grass areas.

CAUTION: Always stop tractor

completely, as described above, before
leaving the operator's position; to empty
grass catcher, etc.

TO USE THROTTLE CONTROL
Always operate engine at full throttle.
• Operating engine at less than full

throttle reduces the battery charging
rate.

• Full throttle offers the best bagging

and mower performance.

TO MOVE FORWARD AND BACK-
WARD
The direction and speed of movement is
controlled by the gearshift lever.
• Start tractor with clutch/brake pedal

depressed and gearshift lever in
neutral (N) position.

• Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete
stop before shifting or changing gears.
Failure to do so will shorten the useful
life of your transaxle.

Ignition Key

37

TRACTOR -- MODEL NUMBER 271470

STEERING

KEY PART
NO. NO.

DESCRIPTION

1

140044X428 Steering Wheel

2

154427

Axle Assembly STMP Dropped STL

3

156483

Spindle Assembly, L.H.

4

157473

Spindle Assembly, R.H.

5

6266H

Bearing, Race, Thrust, Hardened

6

121748X

Washer 25/32 x 1-5/8 x 16 Gauge

7

19272016

Washer 27/32 x 1-1/4 x 16 Gauge

8

12000029

Ring, Klip

9

3366R

Bearing, Steering Column

10

169832

Draglink

11

10040600

Washer, Lock

13

136518

Spacer Bearing Axle Front

15

145212

Hexflange Lock

17

156546

Shaft Assembly, Steering

18

57079

Washer, Thrust .515 x .750 x .033

19

160395

Support, Shaft

22

165857

Screw, Hex Wshhd

23

165851

Pittman Shaft Assembly

25

154406

Bracket, Steering

26

126847X

Bushing, Link, Drag

27

136874

Gear, Sector

28

19131416

Washer 13/32 x 7/8 x 16 Gauge

29

17060612

Screw, 3/8-16 x 3/4

30

76020412

Pin

32

130465

Rod, Tie

36

155099

Bushing, Steering

37

152927

Screw

38

140045X428 Cap, Steering Wheel

39

19133812

Washer 13/32 x 2-3/8 x 12 Gauge

40

7810H

Gripco Nut

41

100711L

Adaptor, Steering Wheel

42

145054X428 Boot, Steering

43

121749X

Washer 25/32 x 1-1/4 x 16 Gauge

44

153720

Shaft Extension Steering

46

121232X

Cap, Spindle

47

6855M

Fitting, Grease

51

73800500

Nut lock Hex w/Ins 5/16-18

54

74780520

Bolt Fin Hex 5/16-18 UNC x 1-1/4

62

167902

Kit Steering Asm Service

63

74780616

Bolt Fin Hex 3/8-16 x 1-1/4

65

160367

Spacer Brace Axle

66

154404

Bearing Arm Pittman

67

72140618

Bolt, Rdhd Sq 3/8-16 UNC x 2-1/4

68

169827

Axle, Brace

79

19132012

Washer 13/32 x 1-1/4 x 12 Ga.

80

74950612

Bolt Hex Nylon 3/8-16 x 3/4

82

169835

Bracket Susp Chassis Front

85

133835

Fastener Christmas Tree

NOTE: All component dimensions given in U. S. inches
1 inch = 25.4 mm
