10
OPERATION

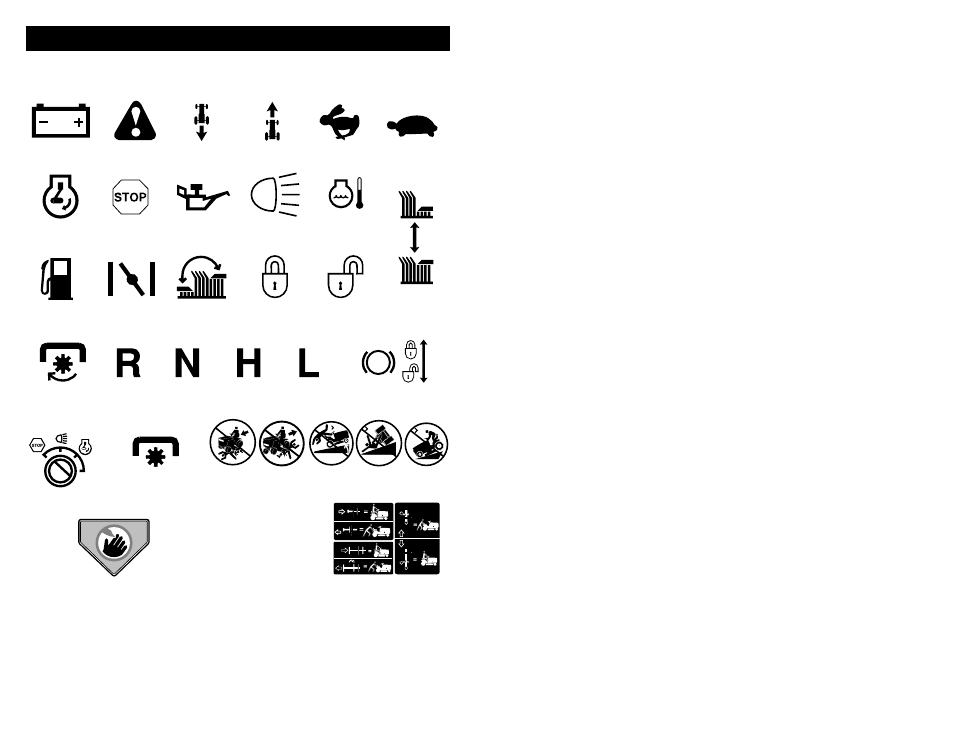

These symbols may appear on your tractor or in literature supplied with the product.
Learn and understand their meaning.
BATTERY CAUTION OR
WARNING
REVERSE FORWARD FAST SLOW
ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON
FUEL CHOKE MOWER HEIGHT PARKING BRAKE
LOCKED
UNLOCKED
REVERSE NEUTRAL HIGH LOW ATTACHMENT
CLUTCH ENGAGED
MOWER LIFT
DANGER, KEEP HANDS AND FEET AWAY
FREE WHEEL
(Automatic Models only)
OVER TEMP
LIGHT
PARKING BRAKE
IGNITION
ATTACHMENT
CLUTCH DISENGAGED
P
KEEP AREA CLEAR SLOPE HAZARDS
15 15 15
(SEE SAFETY RULES SECTION)
39
TRACTOR -- MODEL NUMBER 271470
ENGINE
1 170551 Control Th/ch
2 17720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - Engine Briggs Model 28R707-1147-E1
(Order parts from Engine Manufacturer)
4 137348 Muffler
13 165291 Gasket Eng 1 313 Id Tin Plated
14 148456 Tube Drain Oil Easy
16 11050600 Washer Lock Ext Tooth 3/8
23 169837 Shield Browning
29 137180 Kit Spark Arrestor (Flat Scrn)
31 109202X Tank Fuel Front 1 25
32 140527 Cap Asm Fuel
33 123487X Clamp Hose Blk
37 137040 Line Fuel 20"
38 148315 Plug Drain Oil Easy
40 124028X Bushing Snap Nyl Blk Fuel Line
44 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 17000612 Screw Hex Wsh Thdrol 3/8-16
46 19091416 Washer 9/32 x 7/8 x 16 ga
62 10040500 Washer Lock Hvy Hlcl Spr 5/16
72 71070512 Screw Hexhd Cap 5/16-18 x 3/4
78 17060620 Screw 3/8-16 x 1-1/4
81 73510400 Nut Keps Hex 1/4-20 UNC
KEY PART
NO. NO.
DESCRIPTION
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
