- Depending on your TV and other equipment, there are
various ways in which the DVD-Video player can be connec-
ted. These are shown below.
- Please refer to your TV, VCR, Stereo System and any other
User Manual(s) as necessary to determine the optimum con-
figuration.

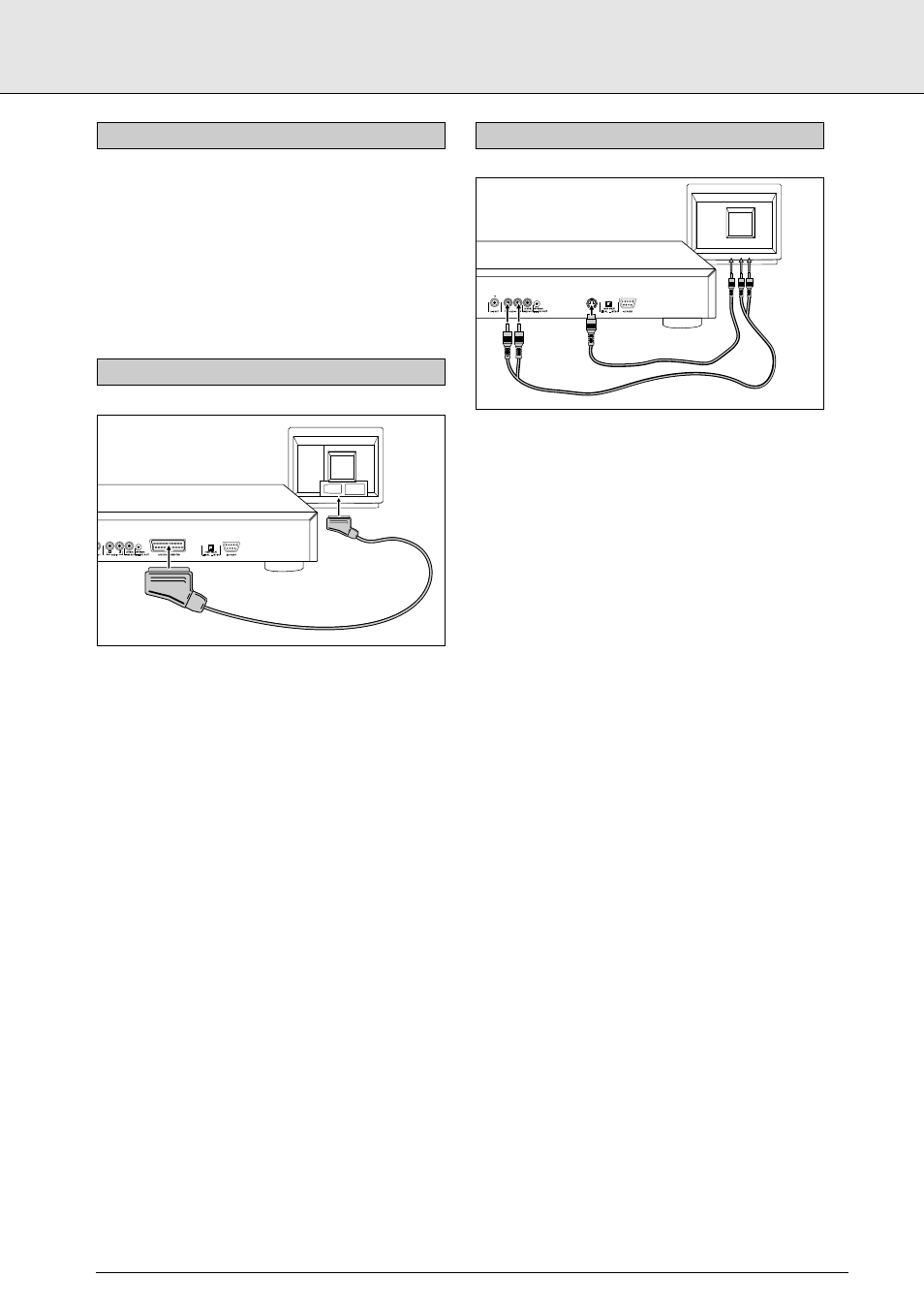

Connection to a TV with an A/V Euroconnector jack.
1 Connect the A/V Euroconnector on the rear of the player to
the corresponding connector on the TV using the cable sup-
plied.
2 You can also opt to connect the audio Left and Right chan-
nel jacks on the rear of the player to the corresponding
jacks on your stereo system.
NOTE
- Do not connect your DVD-player via your VCR, because the
video quality could be distorted by the copy protection sys-
tem.
Connection to a TV with an S-Video jack.
1 Connect the S-Video on the rear of the player to the corre-
sponding connector jack on the TV using the cable supplied.
2 Connect the audio Left and Right channel jacks on the rear
of the player to the corresponding jacks on the TV using the
cable supplied. Alternatively, you can use the same cable to
connect the audio Left and Right jacks on the rear of the
player to the corresponding jacks on your stereo system.
S-VIDEO
IN
S-VIDEO CABLE
AUDIO CABLE
AUDIO
IN
TV
HIGHEST QUALITY A/V CONNECTION (USA)
A/V EUROCONNECTOR CABLE
TV
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
21
HIGHEST QUALITY A/V CONNECTION (EUROPE)
GENERAL NOTE
english
11
STANDARD CONNECTIONS
