English, Installation, Front of player – Philips DVD170AT User Manual
Page 3: Caution, Rear of player
1 ON/OFF
2 Disc tray (behind door)
3 Tray OPEN/CLOSE key
4 Display
5
9
STOP
6
O
Previous title/chapter/track
7 PHONES; Headphone jack
8
;
PAUSE/Still/Step
9 LEVEL; Headphone volume control
0
P
Next title/chapter/track
!
2
PLAY

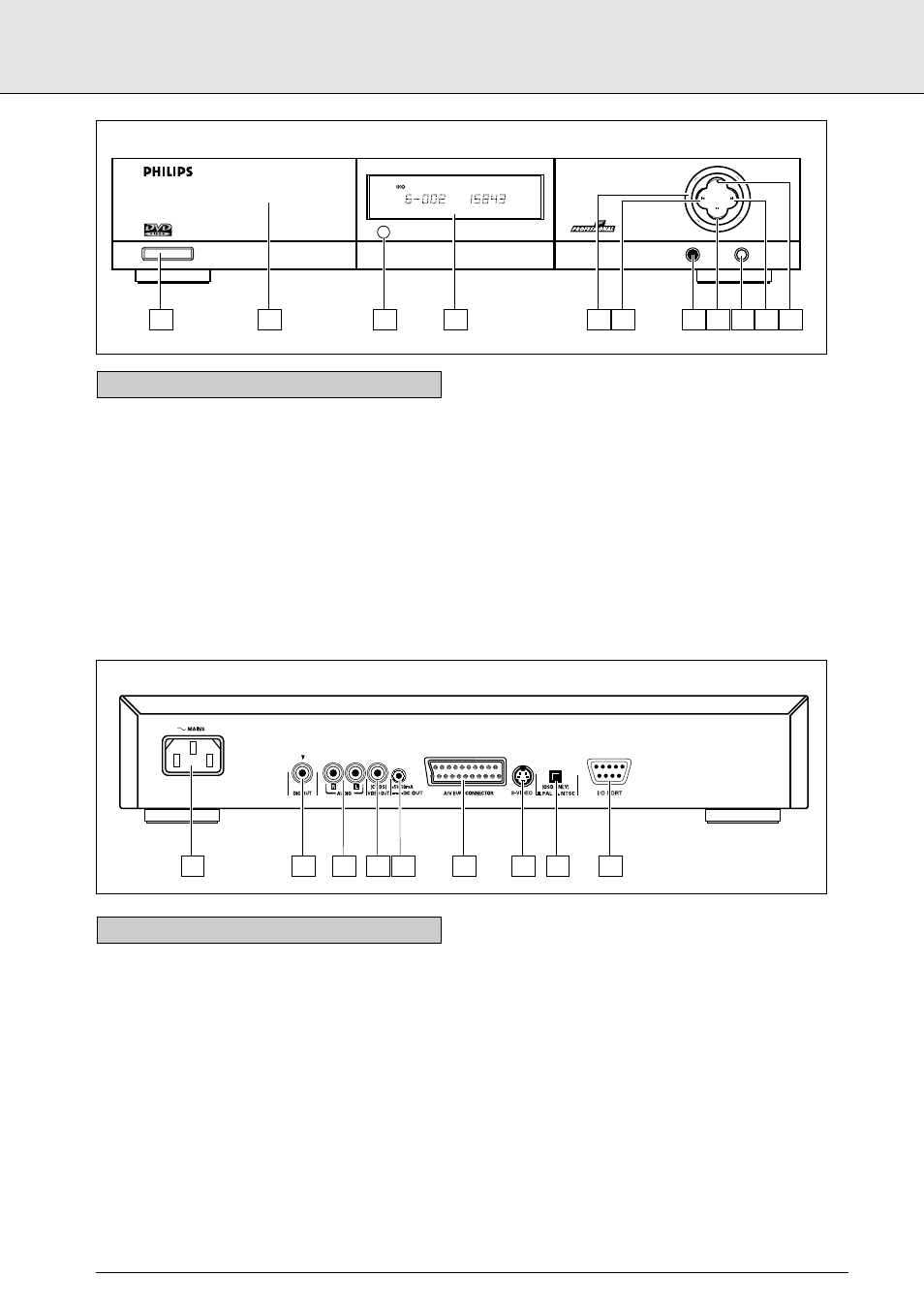

FRONT OF PLAYER
english
9
INSTALLATION
20
18
16
14
12
10
8
6
4
2
19
17
15
13
11
9
7
5
3
1
21
1
2
3
4
5
6
7
8
9
ON/OFF
OPEN/CLOSE
STOP
PLAY
PAUSE
LEVEL
PHONES
TITLE CHAPTER
TIME
REPEAT
TITLE
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
1
2
3
4
5 6
7 8 9 10 11
1 Power supply
2 Digital audio output
3 Audio R; Audio output R
Audio L; Audio output L
4 Video (CVBS); Video output
5 DC Power output (for optional external RF modulator)
6 A/V Euroconnector (Europe)
7 S-Video (USA)
8 NTSC/PAL switch (for player menus)
9 I/O Port
CAUTION
Do not touch the pins in the rear-panel connectors.
Electrostatic discharge may cause permanent damage
to the unit.
REAR OF PLAYER
