WAN Service Configuration 55
Models 2603, 2621, and 2635 Getting Started Guide 6 • WAN Services
3. Click on Create a new service in the main window, select “PPP routed” and click on the Continue button.
In the Description field, enter the description you wish. In this example, it is called PPP Routed.
• Description: PPP Routed
• Interface: 1
• WAN IP address: 192.168.164.2 255.255.255.255
• LLC Header Mode: off
• HDLC Header Mode: ON
• No authentication
• Username: [blank]
• Password: [blank]

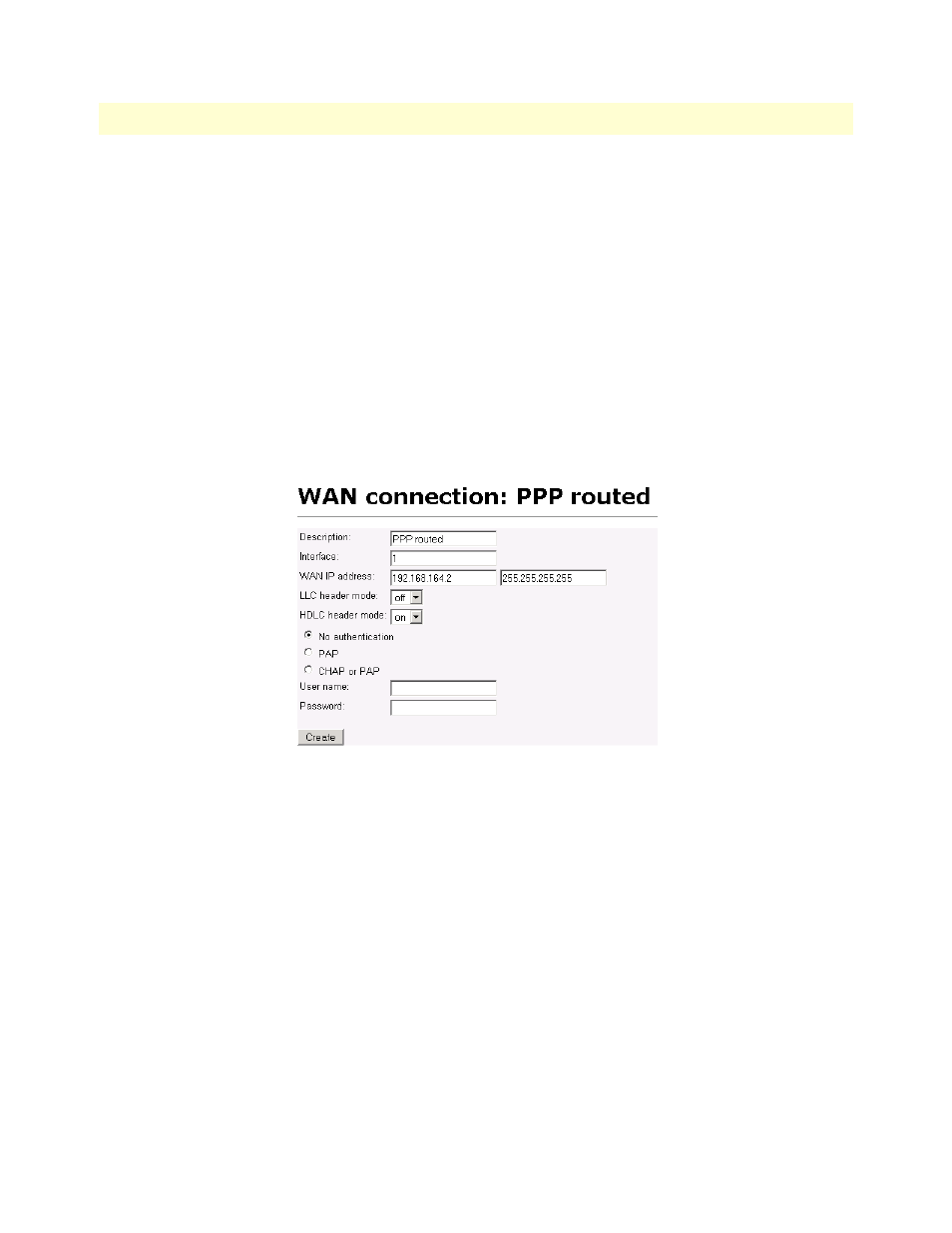

Figure 30. PPP Routed Configuration menu
4. Click on Create.
5. Go to Services Configuration > WAN > Edit... (for PPP routed) > Edit ‘IP Interface’ > Ipaddr: [enter the
WAN IP Address and Mask, in this example = 192.168.164.2 and 255.255.255.255]. (See figure 31 .)
