13

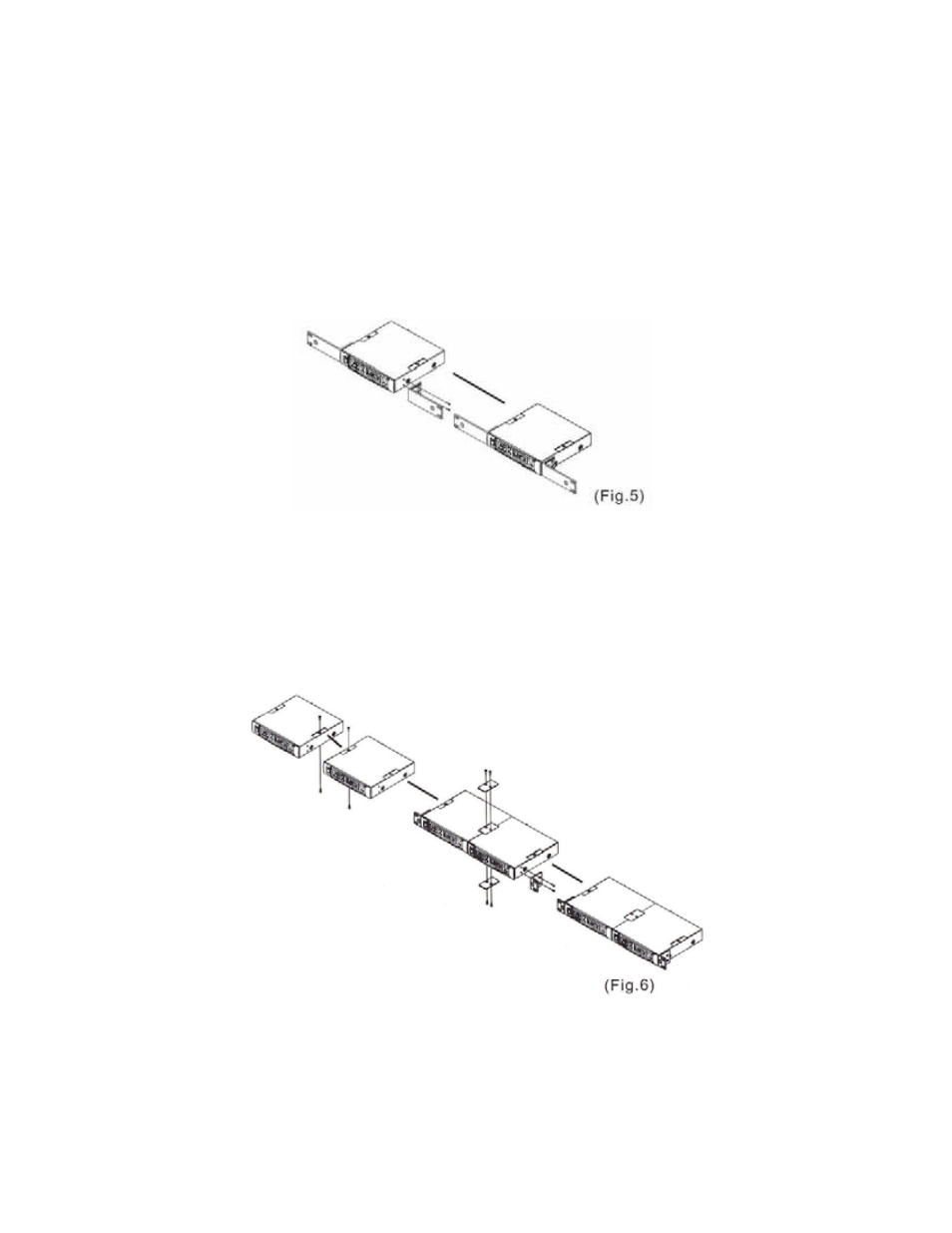

4. 19'' RACK INSTALLATION
(1) Single Receiver (Half-rack)
(a) Fasten OPTIONAL rack-mount kit to receiver using supplied screws on each
side of the receiver as illustrated in Fig. 5.
(2) Dual Receivers (Full-Rack)
(a) Remove the screws located on the top and bottom of both units and locate
the units next to each other and align.
(b) Insert the steel plates (one on top, one on bottom) between the receivers
and align mounting holes. Reattach the screws tightly as illustrated in Fig. 6.
(c) Attach rack ears to receivers as illustrated in Fig. 6.
