Page 11
11
3. INSTALLATION OF THE RECEIVER

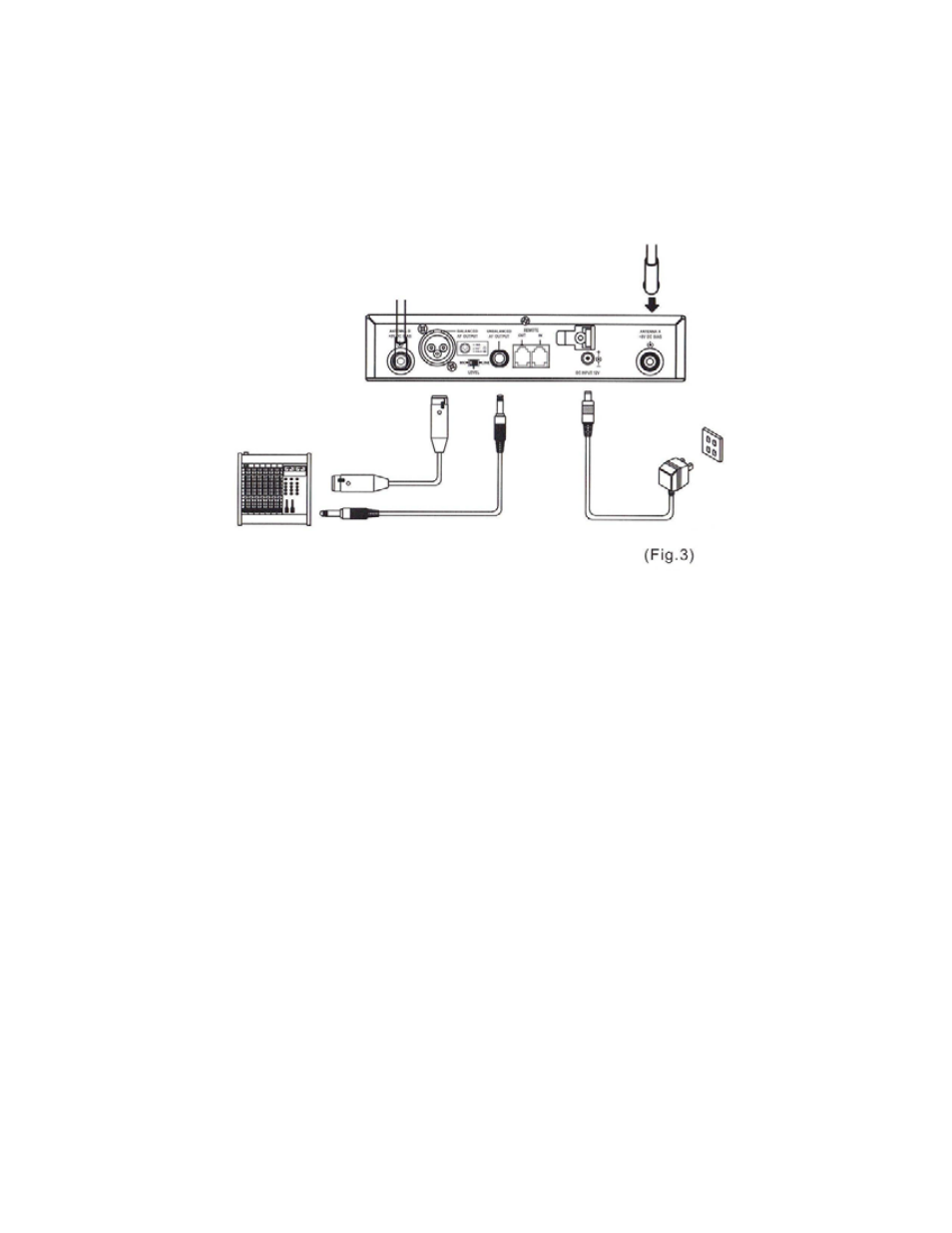

(1) Install the two antennas to the antenna sockets (4) on the rear panel,
illustrated in Fig. 3 or on front rack-mount ears (1). Caution: These
sockets have 8 Volts DC supplied to them, which enables you to directly
connect the Peavey antenna booster for antenna runs longer than 30'
(9.144m). At that point it is recommended that you install an optional
antenna booster to make up for signal loss through the cable and ensure
the sensitivity of the reception.
(2) Connecting the power supply: Connect the AC/DC adapter cable to the
12VDC Input Jack (10) illustrated in Fig. 3. Next, plug the adapter unit into
an appropriate AC outlet with caution to the correct voltage for both AC
outlet and adapter as marked.
(3) Audio Output Connections:
