(a) Unbalanced Output: When using an instrument/patch cable, connect one
end of the cable to the unbalanced output (8) of the receiver and the
other end to the "LINE IN" jack of a mixer or guitar/bass amplifier
input, as illustrated in Fig. 3.
(b) Balanced Output: When using an XLR (microphone) cable, connect the female
end of the cable to the balanced XLR output connector (9) on the receiver
and the male end of the cable to the microphone input of the mixer, as

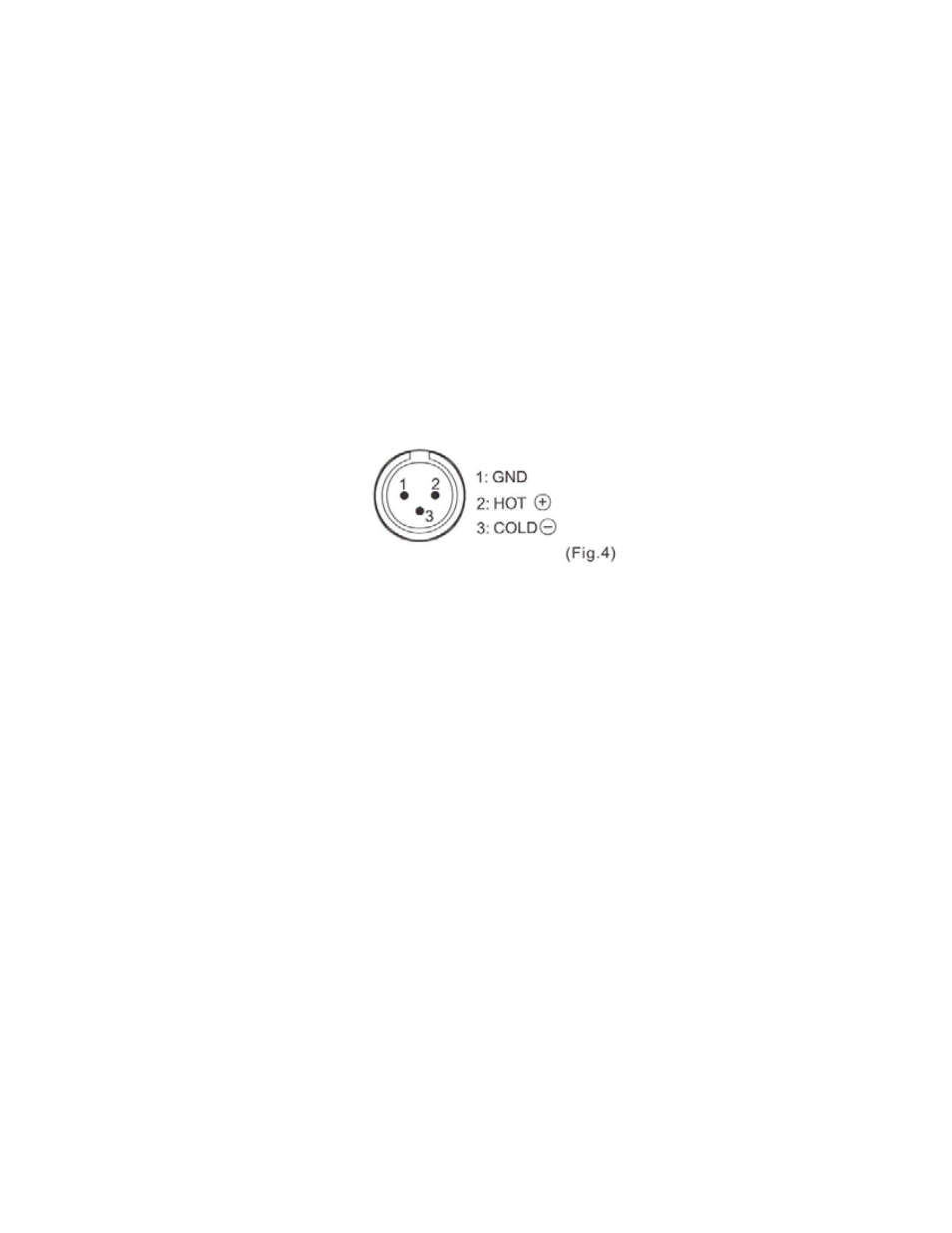

illustrated in Fig.3. The polarity of the three-pin XLR is illustrated in Fig. 4.
(4) Line-Level Switch (7) Setting Position: When connecting the unbalanced
output of the receiver to a line-level input of a mixer or guitar/bass
amplifier, switch the Level Switch (7) to the "LINE" position. Low sensitivity
may occur if it's switched to the incorrect position. When the unbalanced
output of the receiver is connected to a microphone input on the mixer,
switch the Level switch (7) to the "MIC" position. Overloading or distortion
may occur if the switch is in the incorrect position. Insufficient levels may
be generated by using the "MIC" position of the Level switch with
instruments.
