RACKMOUNT INSTALLATION
EATON Powerware ® 9170 + Rail Kit (9− and 12−Slot Cabinets) Installation Guide
S
164201420 Rev C www.powerware.com 6
9. With one person lifting each side of the cabinet, position the cabinet
onto the two equipment rails (see Figure 5).
Carefully slide the cabinet into the equipment rack until the
rackmount ears of the cabinet are flush with the front vertical rails
of the rack. Verify that the holes in the ears align with the holes in
the rack.
Equipment Rail

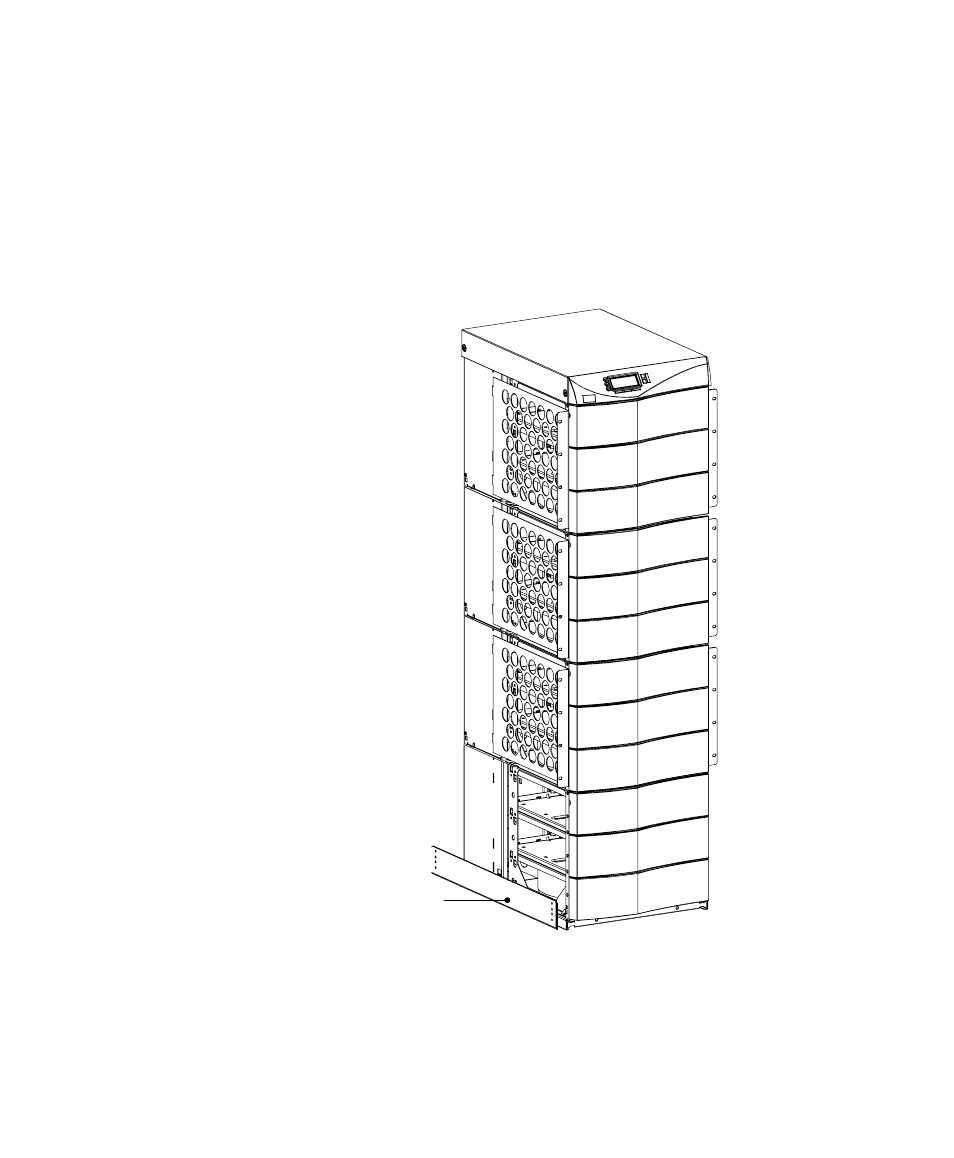

Figure 5. Rails Holding UPS Cabinet
10. Secure the cabinet in the rack using #10−32 1/2" Torx
® screws or
other appropriate customer−specified screws.
11. Follow the instructions in the UPS user’s guide to install the power
and battery modules.
