RACKMOUNT INSTALLATION

EATON Powerware

9170

Rail Kit (9− and 12−Slot Cabinets) Installation Guide

164201420 Rev C www.powerware.com

Install two rackmount ears (three for 12−slot cabinets) on each side
of the cabinet (see Figure 3).

Insert the two offset tabs on the rear edge of the ear into the
matching tab slots on the cabinet side frame (see Figure 2). Pivot
the ear forward until it is flush against the cabinet side frame.
Secure each ear with three 1/4−20

1/2" Phillips−head bolts; screw

NOTE DO NOT install rackmount ears in the bottom cabinet section.

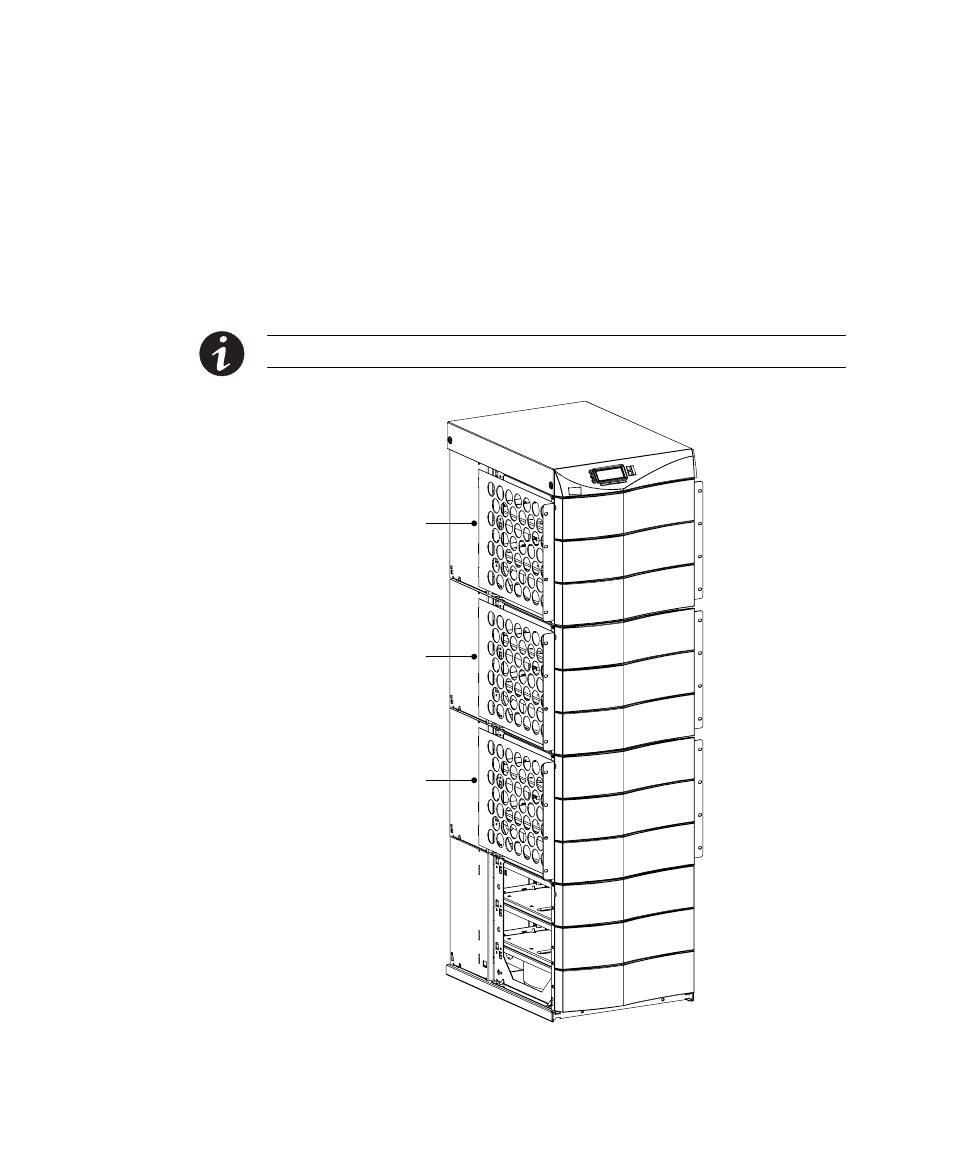

Rackmount Ear

Figure 3. Rackmount Ears Installed
