RACKMOUNT INSTALLATION
EATON Powerware ® 9170 + Rail Kit (9− and 12−Slot Cabinets) Installation Guide
S
164201420 Rev C www.powerware.com 2
Installing the Rail Kit
C A U T I O N
The 9− and 12−slot cabinets are heavy [9−slot: 72 kg (158 lb); 12−slot: 89 kg (196 lb)]. This
procedure requires two people to lift and position the cabinet into the equipment rack.
Install the cabinet in the rack before installing power and battery modules and before
making connections to the intended power source.
To install the UPS or battery cabinet in the equipment rack:
1. Measure the distance from the front to back of the mounting posts
in your rack.
2. Position the front and rear rails for the depth of your rack.
3. Loosely assemble the left and right rails using six #6−32 0.75"
screws, #6 flat−head washers, and #6−32 Keps nuts (see Figure 1).
Set aside the loosely assembled rails.

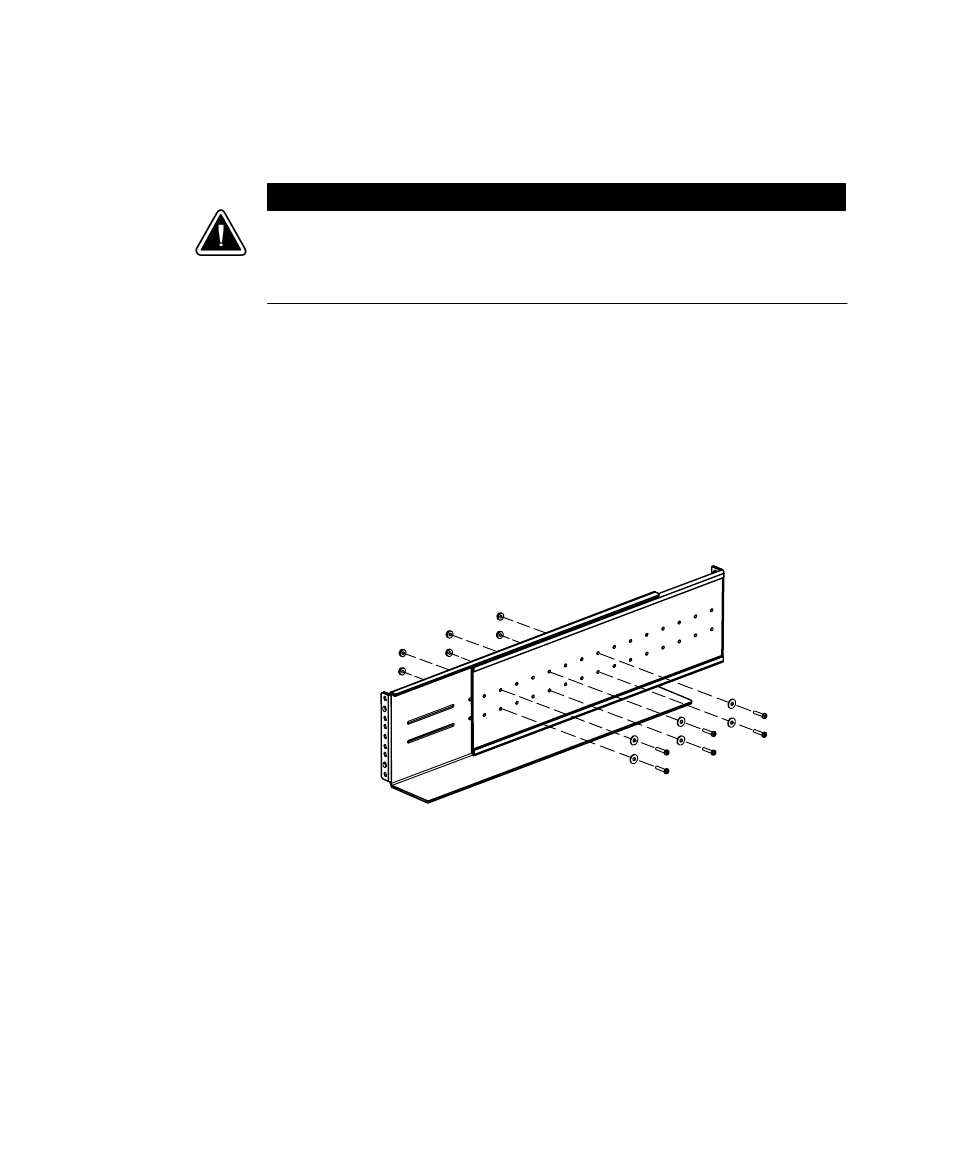

Figure 1. Assembling the Rails
