Powerware 9170+ User Manual
Page 7
RACKMOUNT INSTALLATION
EATON Powerware
®
9170
+
Rail Kit (9− and 12−Slot Cabinets) Installation Guide
S
164201420 Rev C www.powerware.com
5
6.
Select the proper holes in the rail that position the cabinet at the
desired location in the rack.
7.
Secure the loosely assembled rail to the front and rear of the rack
with the supplied adapter plate in front of the mounting post using
two supplied #10−32
0.5" pan−head screws and #10 washers.
Repeat for the other side of the rack.
8.
Tighten the rail assembly screws.
Pan−Head Screws and
#10 Washers
Adapter
Plate
Adapter
Plate
Pan−Head Screws and
#10 Washers

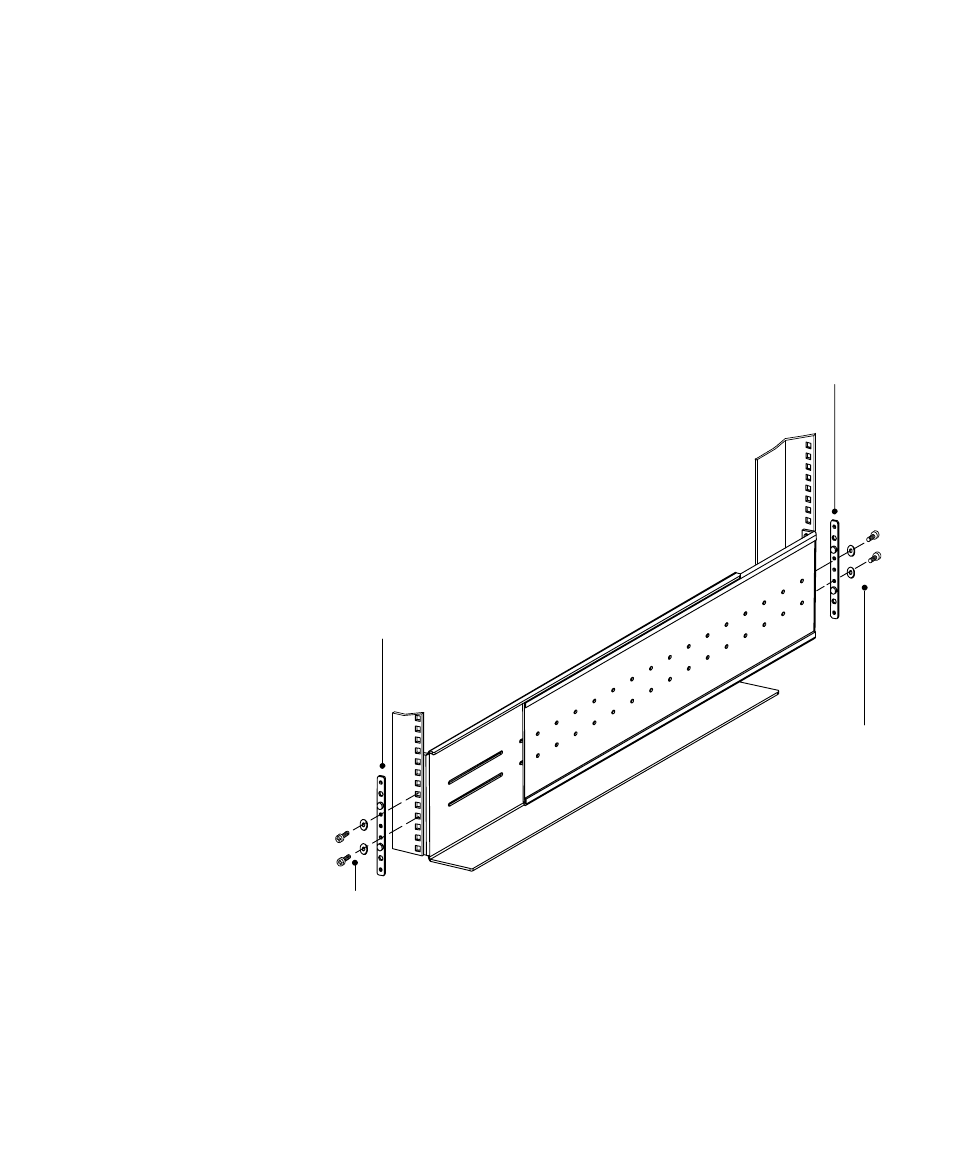

Figure 4. Securing the Rails
