INSTALLATION
The Polaris Camera Handpiece quickly detaches
from the Handpiece Cable and is easily
carried among patient operatories for use
with additional Polaris Camera System Control
Modules . Refer to the corresponding illustrations
and transport the Camera Handpiece as follows:
1 . Retract collar of quick disconnect
Handpiece Cable connector and
simultaneously pull straight from the
Handpiece connector .
2 . Release connector quick disconnect
collar .
3 . Store the Handpiece Cable by placing
cable slide holder into the Handpiece
Holder .
4 . Transport Handpiece to next operatory .
5 . Connect Handpiece at new location
by aligning the connector key with
the keyway of the mating Handpiece
Cable connector .
6 . Insert straight into Handpiece connector
until it securely snaps into place .
CAMERA PORTABILITY
Do not twist or turn the handpiece Cable connector. The connector is keyed and mates
straight on with Camera handpiece connector
.
Polaris Handpiece Storing
CAUTION: Always handle the Polaris handpiece carefully.
Do not drop and make sure to protect the optical
window from scratches.
Notes: Authorized Imaging Software, such as VISIX, supplied by the dealer or other company, must be
installed on the computer in order to operate the Polaris System.
A Microsoft® Driver Not Signed statement may appear. If it does, click Continue to
proceed with installation.
USB Device Driver Installation - Before connecting the Polaris System to
your computer or attempting to use it for the first time, run the Setup program on
the Polaris System Drivers and Utilities Disk included with the Polaris System . The
supplied CD provides the device drivers needed to communicate between the
Polaris System and the associated user-supplied USB streaming video software
application installed on the PC computer system . This must be completed before
the Polaris System will operate properly . Normally, this program runs automatically
when the CD is inserted into the drive for the first time . If not, run the setup program
located in the root directory of the CD (typically D:\Polaris.exe) .
Install the Standard Device Drivers by selecting Standard (default option) from the
Setup program menu . If full device functionality is not present after the Standard
Device Drivers are installed, the Legacy Device Drivers may need to be installed .
More information can be found in the Installation Instructions and Notes file on
the Polaris System Drivers and Utilities Disk included with the system .

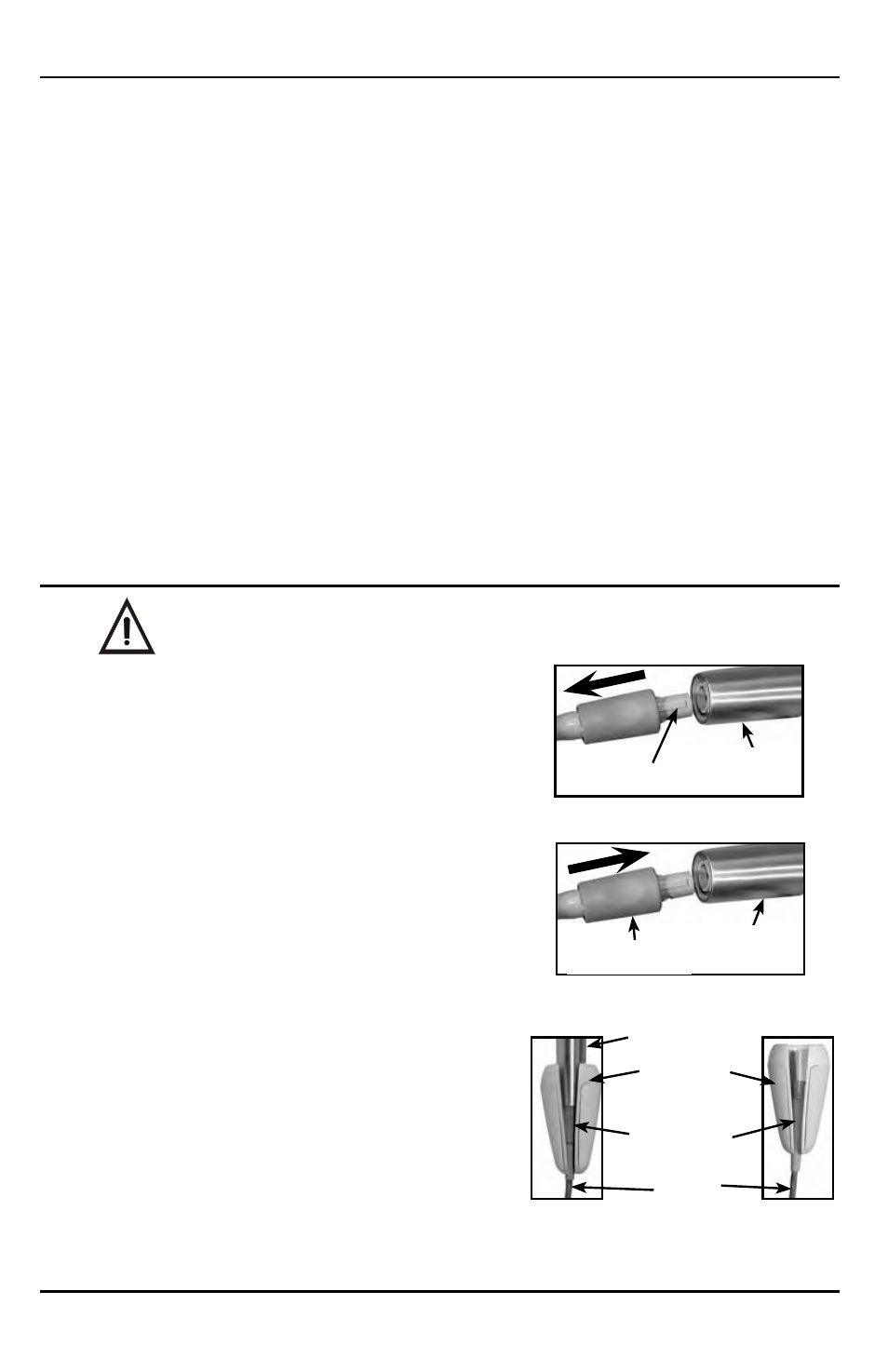

Detaching Handpiece
Connecting Handpiece
Handpiece
& Cable
Cable
Only
Handpiece
Handpiece
Cable
Quick Disconnect
Connector
Handpiece
Holder
Quick Disconnect
Collar
Camera
handpiece
Camera
Handpiece Connector Key
