3
DEH-2130R,2100R
1 Cord Assy CDE6123
2 Screw CBA1002
3 Handle CNC5395
4 Bush CNV3930
* 5 Polyethylene Bag E36-615
6 Polyethylene Bag CEG-162
7-1 Polyethylene Bag CEG1116
7-2 Owner's Manual CRD3137
7-3 Owner's Manual CRD3138
7-4 Installation Manual CRD3139
* 7-5 Passport CRY1013
* 7-6 Warranty Card CRY1157
8 Carton See Contrast table(2)
9 Contain Box See Contrast table(2)
10 Protector CHP2243
11 Protector CHP2244
12 Case Assy CXB3520
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
- Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
- Screws adjacent to ∇
mark on the product are used for disassembly.

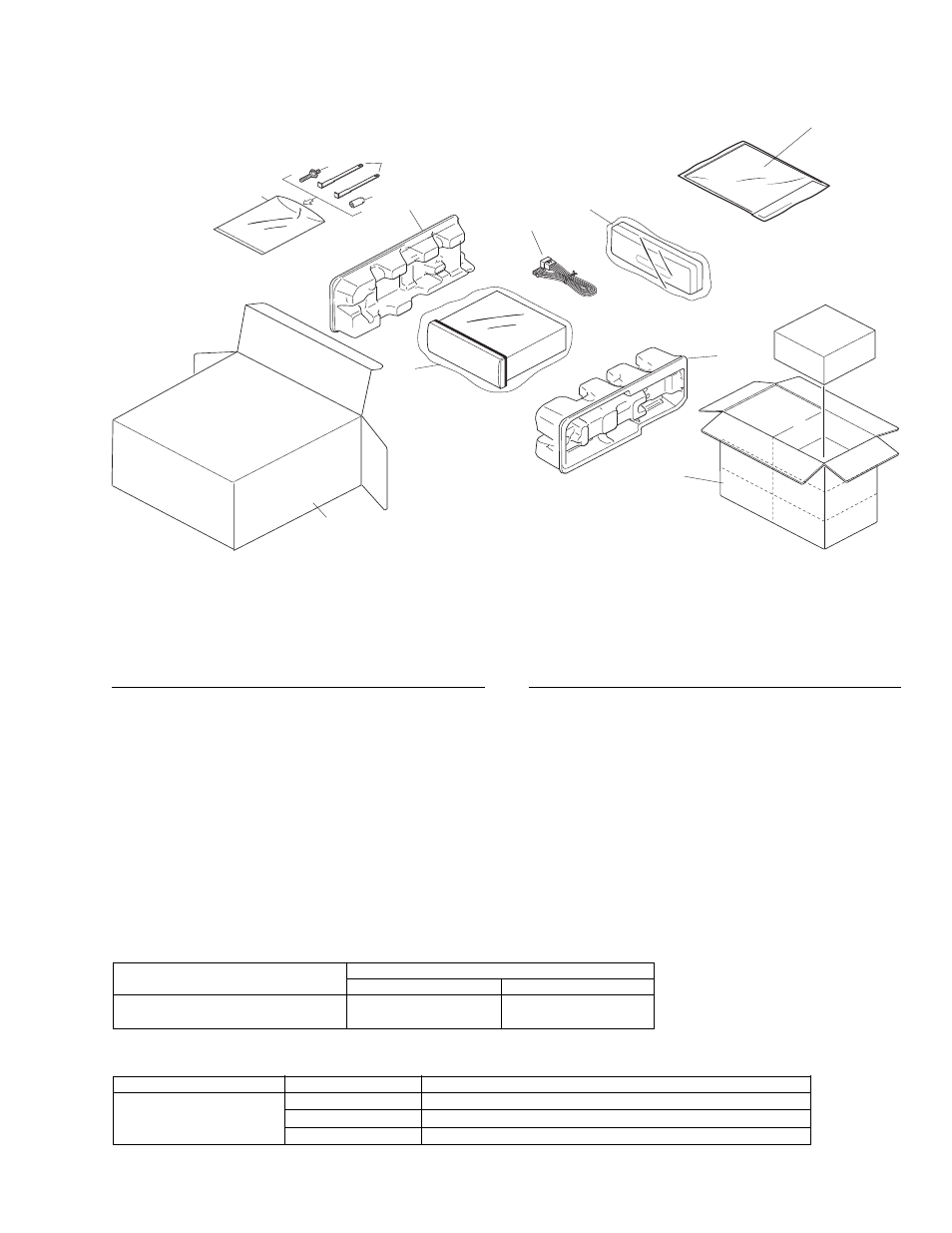

2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
10
1
12
6
8
9
11
7
4
3
5
2
Part No.
Mark No. Symbol and Description DEH-2130R/X1M/EW DEH-2100R/X1M/EW
8 Carton CHG3951 CHG3950
9 Contain Box CHL3951 CHL3950
(2) CONTRAST TABLE
DEH-2130R/X1M/EW and DEH-2100R/X1M/EW are constructed the same except for the following:
- Owner's Manual, Installation Manual
Model Part No. Language
DEH-2130R/X1M/EW CRD3137 English, Spanish, German
DEH-2100R/X1M/EW CRD3138 French, Italian, Dutch
CRD3139 English, Spanish, German, French, Italian, Dutch
