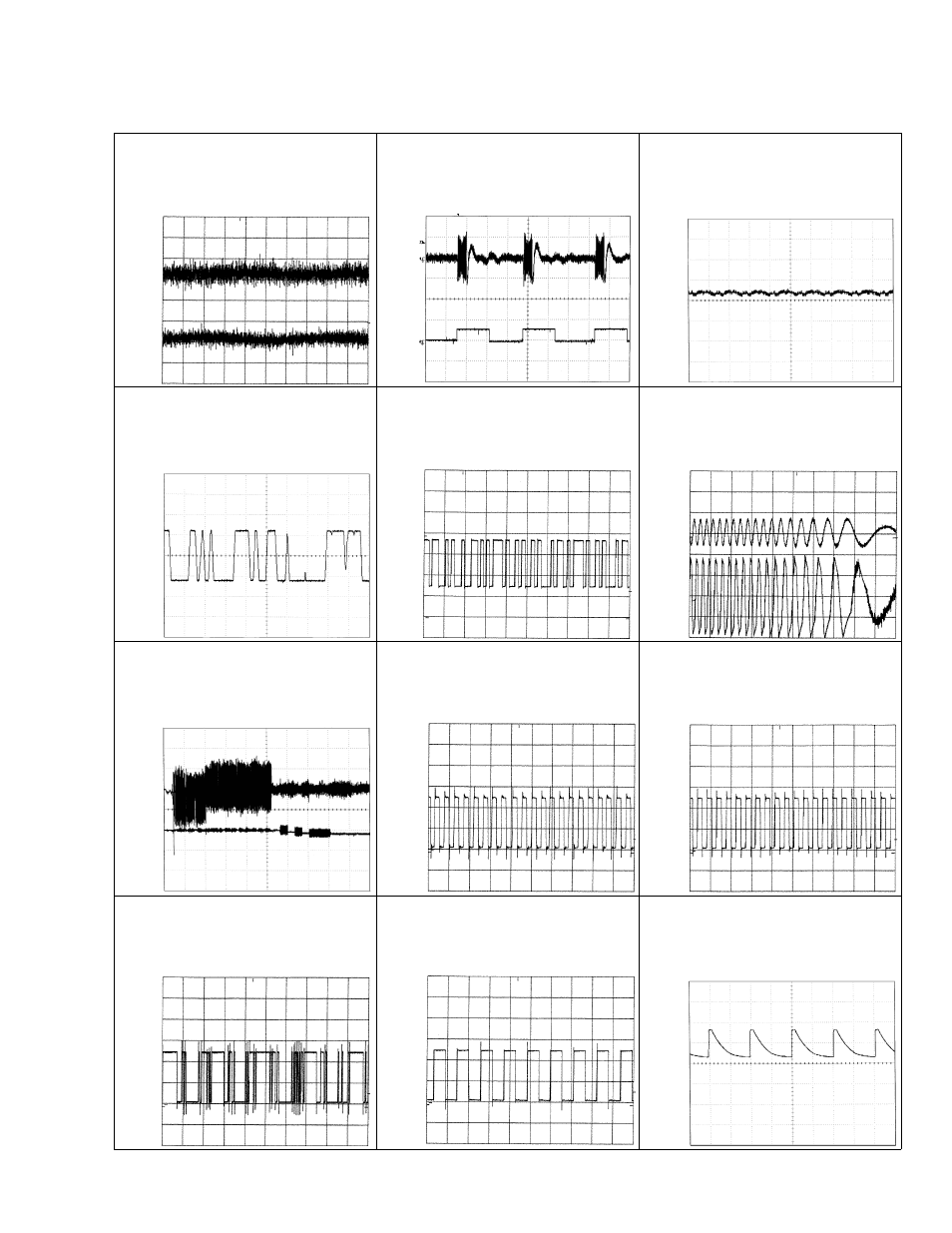

DEH-2130R,2100R
8 CH1: TE 0.2V/div.
9 CH2: TD 0.2V/div.
Normal mode: play
8 CH1: TE 0.5V/div.
! CH2: SD 0.5V/div.
TEST mode: 100 Tracks jump(FWD)
5ms/div.
0 MD 0.5V/div. 0.1s/div.
Normal mode: Play (12cm)
0 MD 1V/div. 10ms/div.
Normal mode:
Long Search (12cm)
@ EFM 1V/div. 5 µ s/div.
Normal mode: play
8 CH1: TE 1V/div.
# CH2: TEC 1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8 CH1: TE 0.5V/div.
6 CH2: FE 0.5V/div.
Normal mode: AGC after focus close
0.2s/div.
$ PLCK 2V/div. 0.5 µ s/div.
Normal mode: play
20ms/div.
% SCKO 2V/div. 1 µ s/div.
Normal mode: play
^ Dout 2V/div. 10 µ s/div.
Normal mode: play
& LRCK 2V/div. 20 µ s/div.
Normal mode: play
* VD 5V/div. 50ms/div.
Normal mode: No disc
