2 Connecting Cameras
38

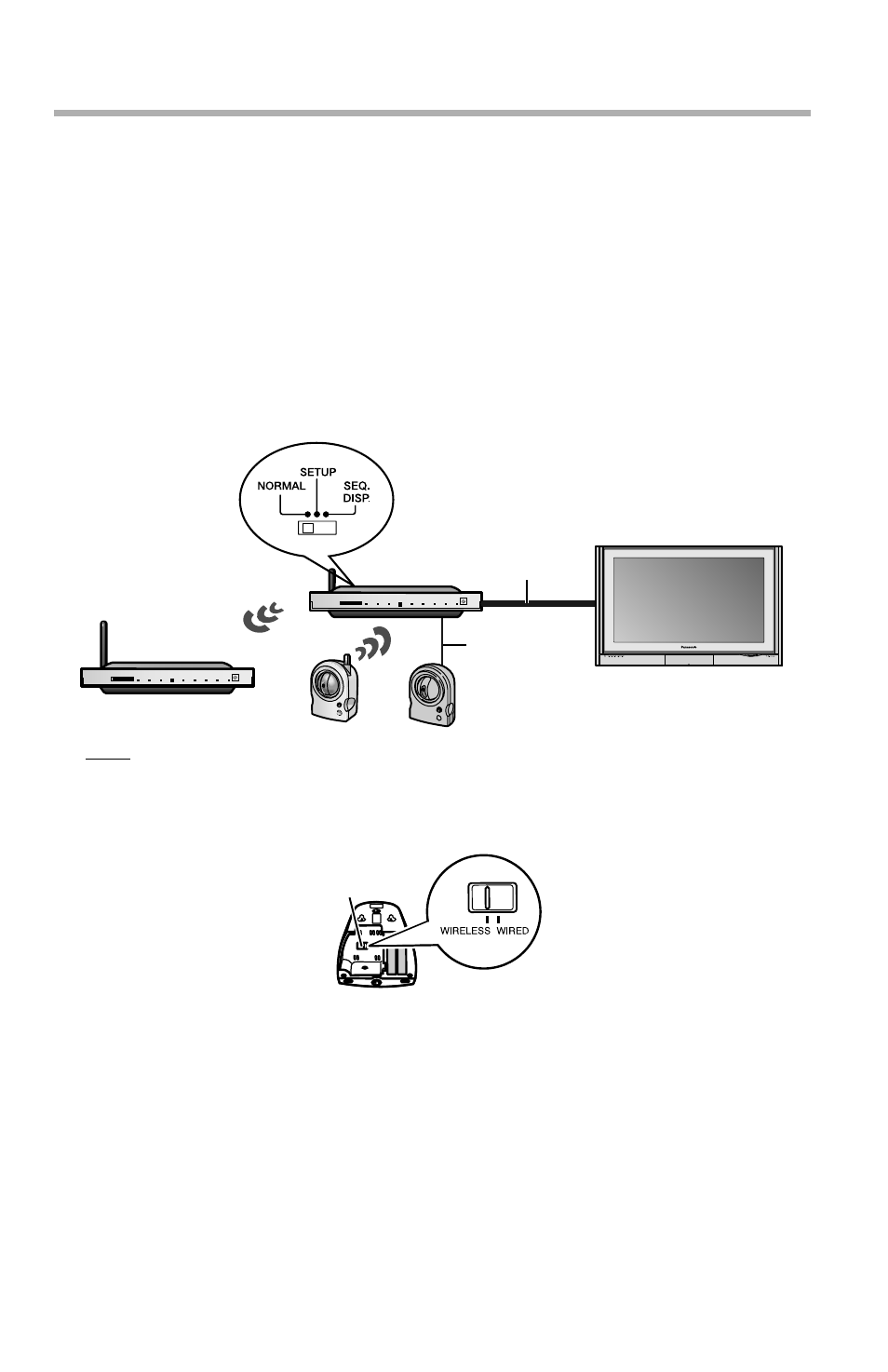

2.3.5 Confirming the Camera Image
1.
Disconnect all of the Ethernet cables from the BB-HGW700A.
2.
Make sure the BL-WV10A is turned off.
3. Connect the LAN cables to the devices as necessary but do not turn them on.
4. Turn on the cameras connected to the BB-HGW700A.
5. Turn on the BB-HGW700A.
6. Set the mode switch on the back of the BL-WV10A to [NORMAL] and turn it
on.
7.
Turn on the cameras connected to the BL-WV10A.
Note
• To use a wireless connection for the wireless camera BL-C30A,
disconnect it from the Ethernet cable, set the camera switch to
[WIRELESS] and turn the camera on again.
Video cable
Ethernet
cable
BB-HGW700A
BL-WV10A
TV
Switch
Bottom of BL-C30A
