REPAIR PARTS

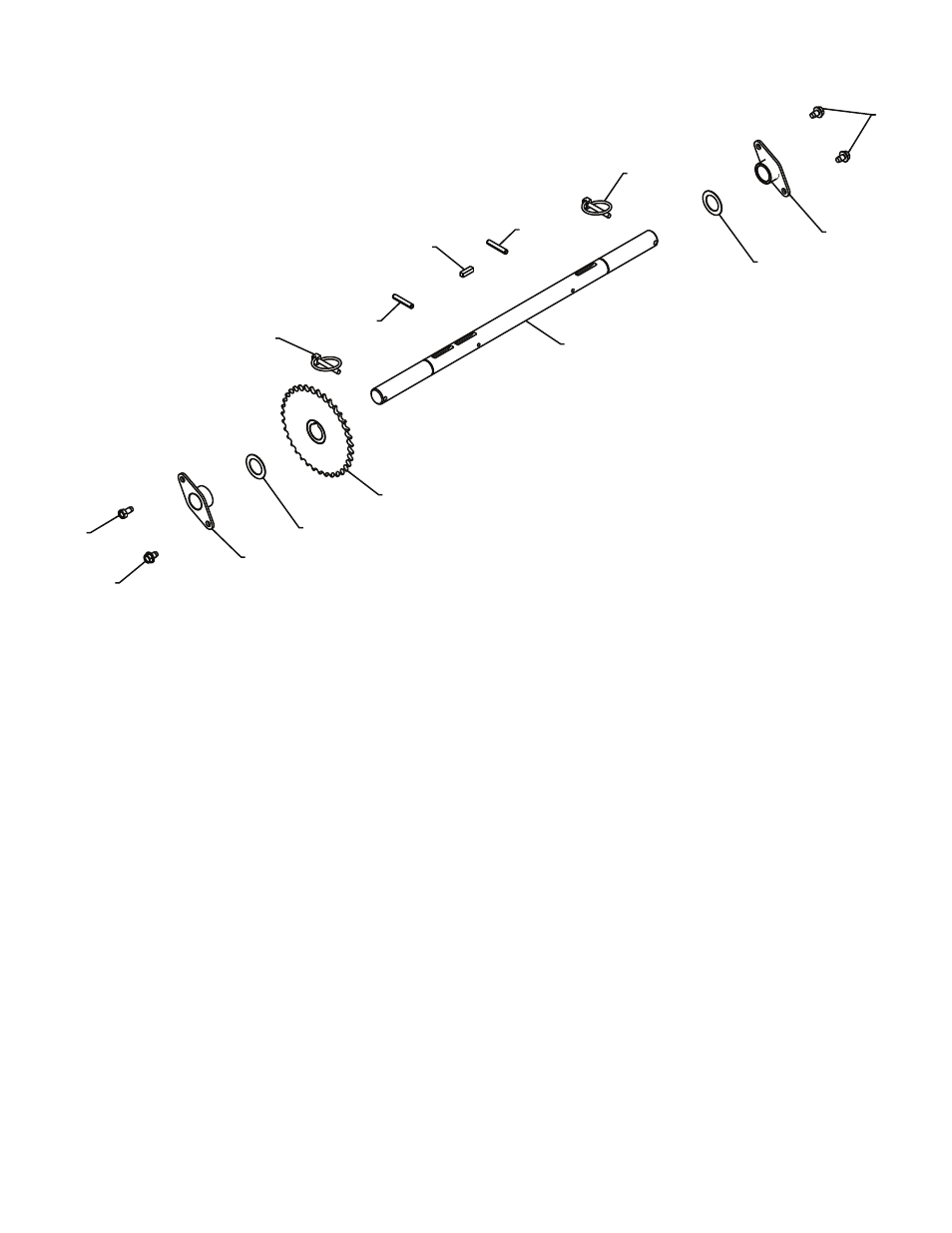

SNOW THROWER - MODEL 961980022 (96198002200)
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1a
1b
1b
2
4
3
3
4
6
7
7
8
5
6 01.03.002-A
1 404923 AXLE ASSEMBLY (assy of 1a,1b)
1a 404307 AXLE SHAFT
1b 9465M1 ROLL PIN 3/16 X 1.50
2 402691 SPROCKET
3 174697 THRUST WASHER
4 179830 BEARING
5 146315 SCREW 5/16−18 X .625
6 17490508 SCREW 5/16−18 X .500
7 155443 KLIK PIN 1/4 X 1.50
8 189282 SQUARE KEY
