REPAIR PARTS
SNOW THROWER - MODEL 961980022 (96198002200)

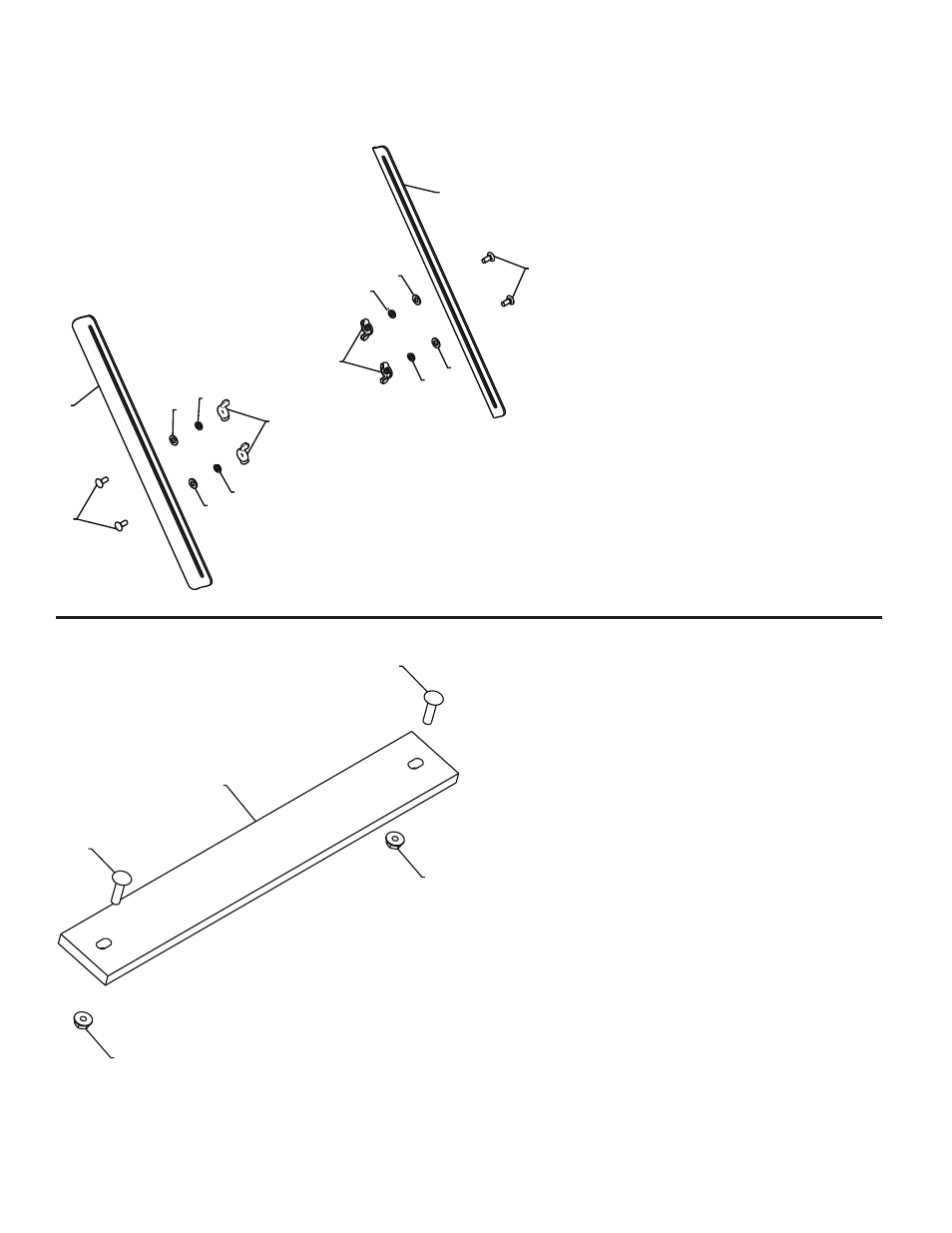

AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
5
3
4
3
4
1
2
5
3
4
3
4
01.16.001-A
1 181160X479 DRIFT CUTTER BAR
2 72270506 CARRIAGE BOLT 5/16−18 X .750
3 179246 PLASTIC WASHER
4 10040500 LOCKWASHER 5/16
5 128638 NUT 5/16−18
1
2
3
3
2
01.17.003-A
1 182516 WEIGHT BAR
2 72110510 CARRIAGE BOLT 5/16−18 X 1.25
3 751153 NUT 5/16−18
