REPAIR PARTS
SNOW THROWER - MODEL 961980022 (96198002200)

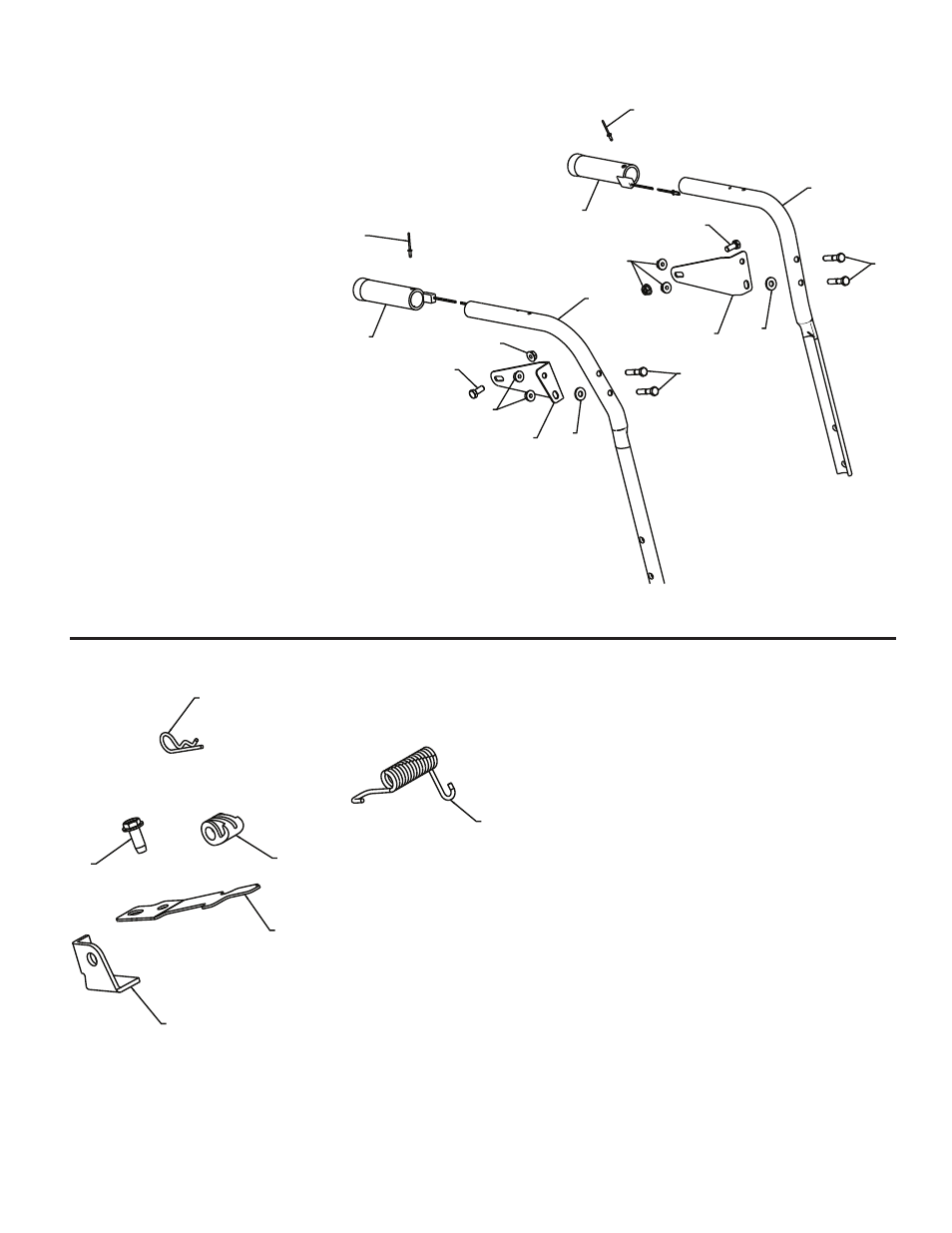

HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3
4
6
6
7
7
8
8
8
9
9
5
5
10
10
01.08.005-A
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
1
419800X479 PLOW HANDLE LH
2
419801X479 PLOW HANDLE RH
3
196944
PANEL BRACKET LH
4
196943
PANEL BRACKET RH
5
414515
HEATED HANDLE GRIP
6
74780512
CREW 5/16−18 X .750
7
74780524
SCREW 5/16−18 X 1.50
8
751153
NUT 5/16−18
9
155415
WASHER
10
178775
POP RIVET 1/8
1
2
3
4
5
6
01.08.007-B
1
412675X004 INTERLOCK SPRING
2
414572
INTERLOCK CAM
3
178831
TORSION SPRING
4
169675
RETAINER
5
17060410
SCREW 1/4−20 X .625
6
421252X004 INTERLOCK STOP
