REPAIR PARTS

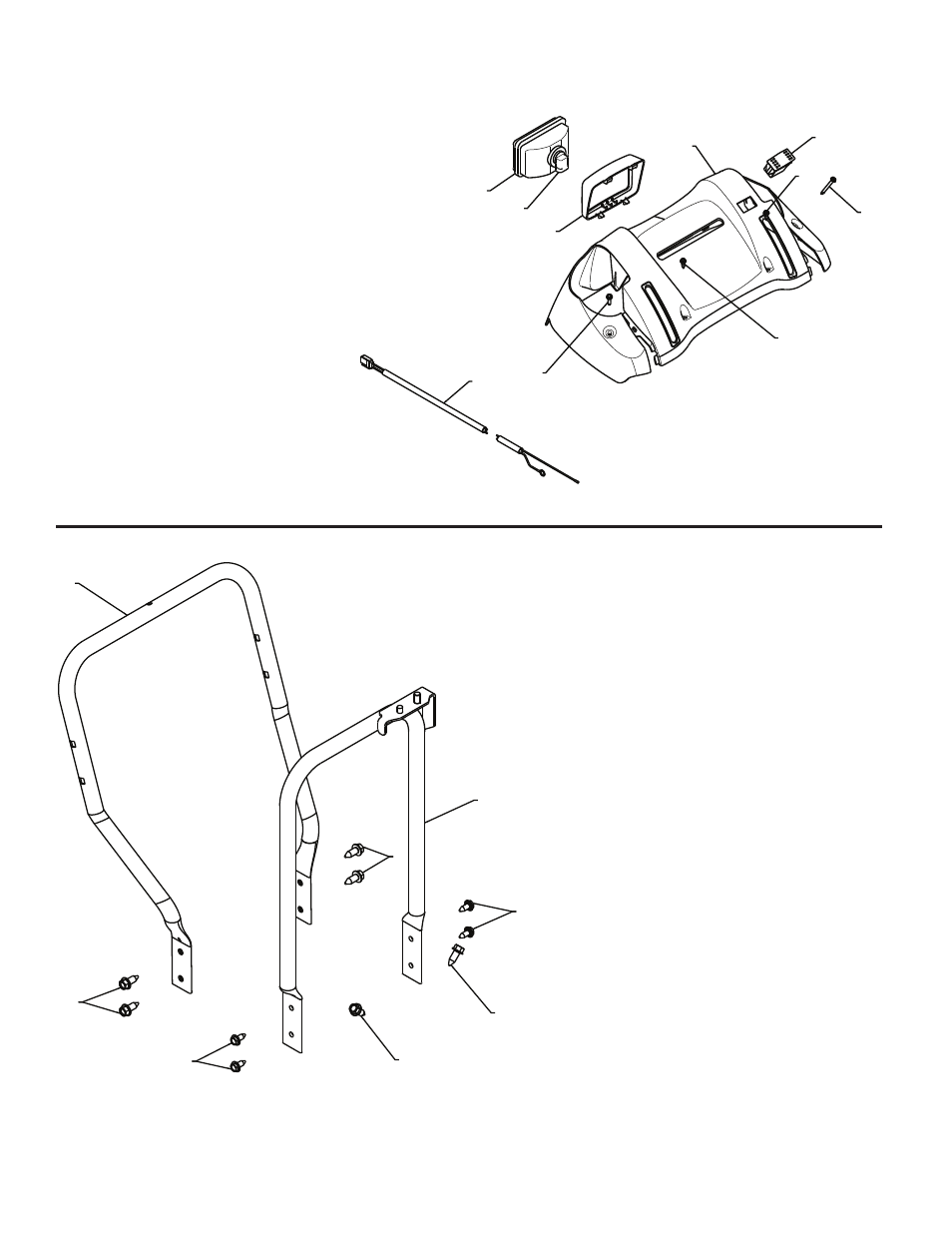

SNOW THROWER - MODEL 961980022 (96198002200)
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
01.05.002-B
1
2
4
4
4
4
3
3
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 419797X479 LOWER HANDLE
2 405784X479 PIVOT SUPPORT WELDMENT
3 150078 SCREW 5/16−18 X .750
4 17000616 SCREW 3/8−16 X 1.00
1
4
4
5
5
2
3
8
6
7
01.10.004-B
1 413927 CONSOLE PANEL BLACK
2 178668 HEADLIGHT BEZEL
3 178666 HALOGEN HEADLIGHT
4 184471 SHOULDER SCREW 10−24 X .625
5 175262 SCREW 10−24 X 1.25
6 417760 GRIP SWITCH
7 405699 WIRE HARNESS
8 401620 BULB
