REPAIR PARTS
SNOW THROWER - MODEL 961980022 (96198002200)

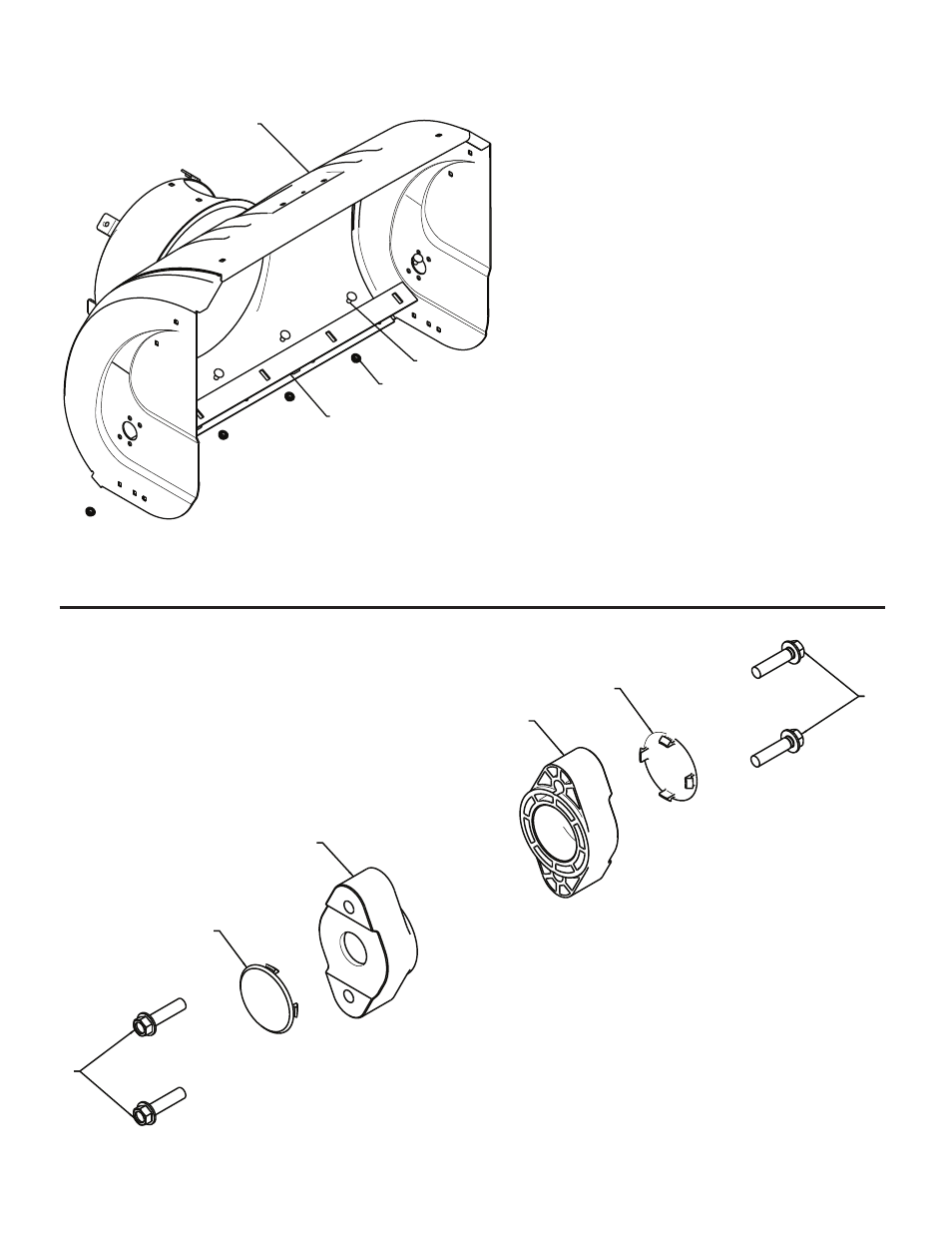

AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
1
2
3 (5x)
4 (5x)
01.07.003-A
1
404930X428 AUGER HOUSING
2
404933X479 SCRAPPER BAR
3
72270505
CARRIAGE BOLT 5/16−18 X .625
4
155377
NUT 5/16−18
1
1
2
3
2
3
01.07.024-B
1 420478
AUGER
BEARING
2 411939
BEARING
PLUG
3 179582
SCREW
5/16−18 X 1.00
