E – 37

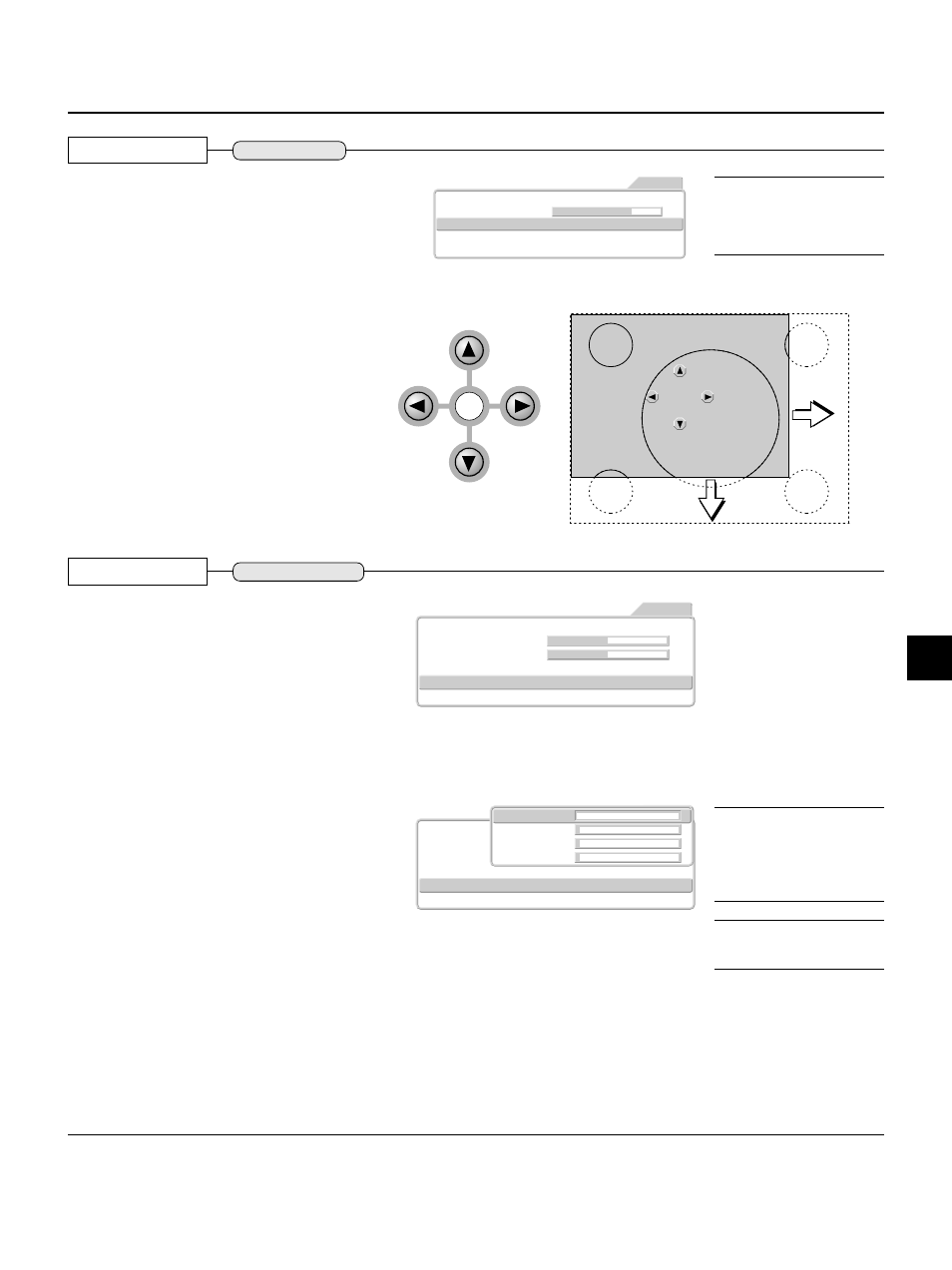

Input Video Adjustments [Picture 2]
Pan
Movement of Screen Display Position
This is used to move the screen position at the time of
RGB, DVI and YPbPr input selection.
Press the cursor button ( ̆̄) and align the cursor with
[Pan], then press the SET button. The menu display will
close and the cursor display will appear.
Adjust the screen position horizontally with the cursor
(
̇ ̈) button and vertically with the cursor (̆̄) button.
Gamma
Gamma Settings
These are settings of the tone of the image.
Press the cursor ( ̆̄) button and align the cursor with
[Gamma], then select with the cursor (
̇ ̈) button.
Video: This is a gamma adjustment value suited to video
signals.
Film: This is a gamma adjustment value suited to movies.
Graphics: This is a gamma adjustment value suited to
graphics such as computer images.
Custom adjustments
This adjustment permits the creation of a desired
gamma curve.
This is performed while viewing the target image.
Select [Custom] with the cursor (
̇ ̈) button, then
press the SET button.
The custom adjustment screen will be displayed.
1. Press the cursor ( ̆) button and align the cursor with
the index.
2. Select the adjustment point with the cursor ( ̇ ̈) but-
ton.
3. Select the color that is to be adjusted with the cursor
( ̆̄) button, then adjust with the cursor (̇ ̈) but-
ton.
When required, adjust other adjustment points in the
same manner.
4. Press the SET button to finalize.
The custom adjustment screen will close.
Video Filter
2
2
Zoom Filter
Video Auto ProScan Mode
Gamma Custom Graphics Film Video
Color System Auto
Picture2 Setup Info.
VIDEO
Option
Video Filter
Zoom Filter
ProScan Mode
Gamma Custom Graphics Film Video
Color System
Picture2 Setup Info.
VIDEO
Option
Index 1
Red 7
Green 7
Blue 7
Note: See → Page E-43 "Return-
ing to Standard Settings" for infor-
mation about returning to the stan-
dard setting values. Note that other
adjustments and settings will also
be reset.
Note:
The display position can only be
moved when a large picture with a
resolution of 800 x 600 or greater
is displayed in the through mode.
Note: Index (1 to 31) indicates ad-
justment point of a 32nd part of
input values between 0 and 255.
YPbPr, RGB and DVI
Various inputs allowed
Zoom Filter 3
White Peak
- Pan -
Off On
Gamma Custom Graphics Film Video
Picture2 Setup Info.
RGB
Option
Position
SET
