E – 14
Screens with 16:9 Aspect Ratio (at an output size of 848 x 480)
These are the projection distances for screens of 16:9 aspect ratio used for the viewing
of DVD and other squeezed screen applications.
This projector uses an output size of 848 x 480 pixels for home theater applications and
enables the projection of a high definition 16:9 aspect ratio.
The screen is placed within the projection distance range that corresponds to the screen
size designation. Within this range, the screen size can be adjusted with the zoom ring.
Note: This is the projection distance when an as-
pect ratio of [16:9] has been selected. Selection of
"Full", "Auto" or other settings at this projection dis-
tance will result in the top and bottom of the image
extending beyond the screen. When establishing a
fixed placement, the distance could be outside the
zoom adjustment range and a test projection should
be conducted.
→ Page E-24 "Input Screen and As-
pect Ratio Selection Screen"

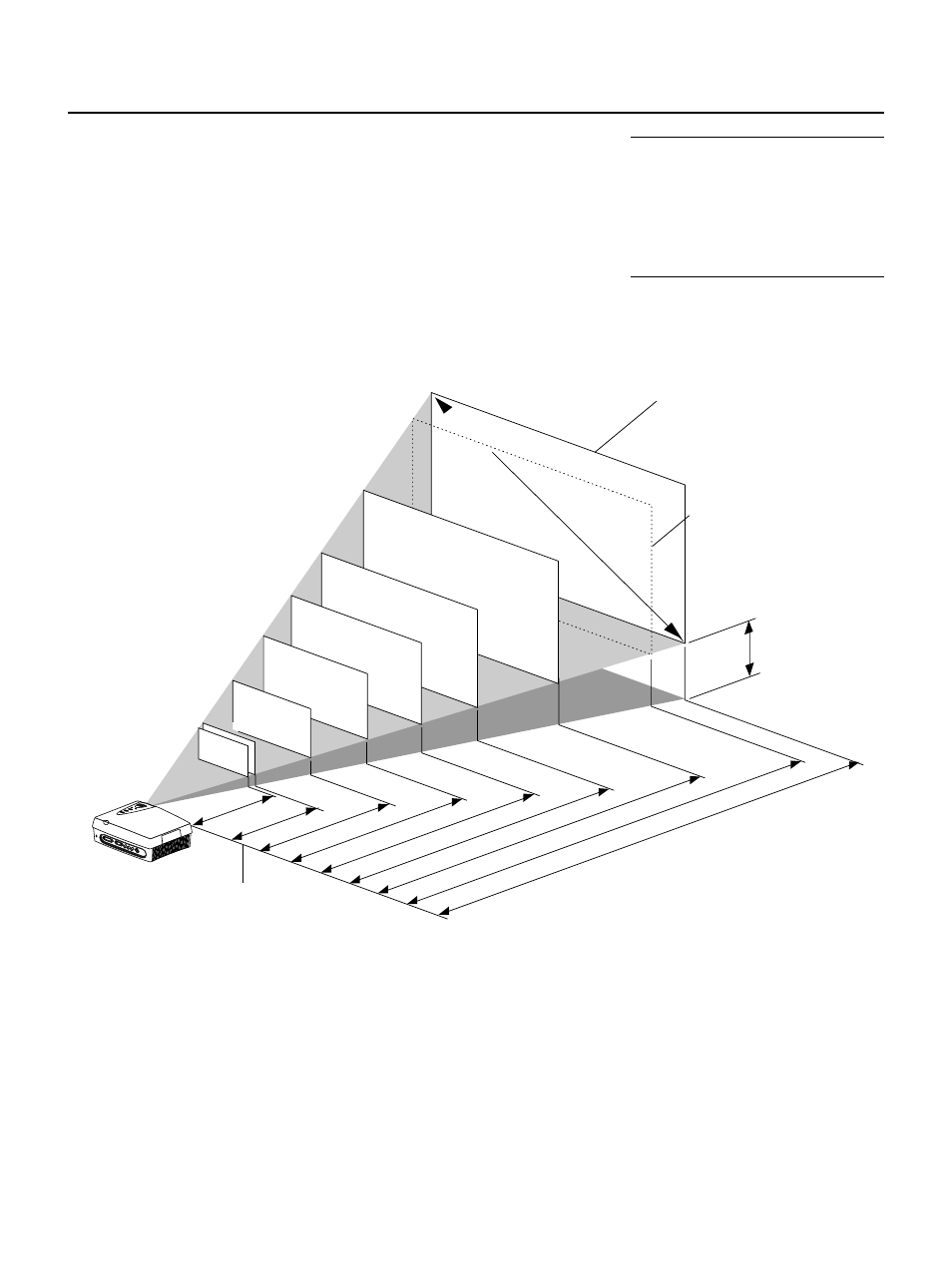

Placement Guide
169.9 (wide) x 95.6 (high) inch
195
inch
431.6 (wide) x 242.8 (high) cm
160.3 (wide) x 90.2 (high) inch
184
inch
406.4 (wide) x 228.6 (high) cm
Screen Size
130.7 (wide) x 73.5 (high) inch
150
inch
331.6 (wide) x 187.7 (high) cm
104.5 (wide) x 58.8 (high) inch
120
inch
265.3 (wide) x 150.1 (high) cm
87.1 (wide) x 49.0 (high) inch
100
inch
221.1 (wide) x 125.1 (high) cm
69.7 (wide) x 39.2 (high) inch
80
inch
176.8 (wide) x 100.1 (high) cm
52.2 (wide) x 29.4 (high) inch
60
inch
132.6 (wide) x 75.1 (high) cm
34.8 (wide) x 19.6 (high) inch
40
inch
88.4 (wide) x 50.1 (high) cm
33.1 (wide) x 18.6 (high) inch
38
inch
84.0 (wide) x 47.6 (high) cm
4.3
– 4.5
feet /
1.3
–1.4m
4.3
– 4.9
feet /
1.3
–1.5m
6.6
– 7.5
feet / 2.0
– 2.3m
8.9
–10.2
feet / 2.7
– 3.1m
10.8
–12.8
feet / 3.3
– 3.9m
13.1–15.4
feet / 4.0
– 4.7m
16.4
–19.4
feet / 5.0
– 5.9m
Wide to Telephoto
Projection Distance
21.0
– 24.9
feet / 6.4
– 7.6m
19.7–
23.6
feet / 6.0
– 7.2m
H
Screen Size Designation (Inches)
Maximum screen size that allows
focussing of a 16:9 aspect ratio im-
age with 848 x 480 output size
This is the distance when an
image of 16:9 aspect ratio is
projected to horizontally fill a
200" 4:3 aspect ratio screen.
Lens surface of
the main unit
H dimension: Height from center of projector lens to bottom edge of screen.
195 inch: 35.8 inch/91.5 cm 184 inch: 33.8 inch/84.9 cm 150 inch: 27.5 inch/69.8 cm 120 inch: 22.0 inch/56.4 cm
100 inch: 18.3 inch/46.8 cm 80 inch: 14.7 inch/37.3 cm 60 inch: 11.0 inch/28.0 cm 40 inch: 7.3 inch/18.6 cm
38 inch: 7.0 inch/17.8 cm
