E – 24

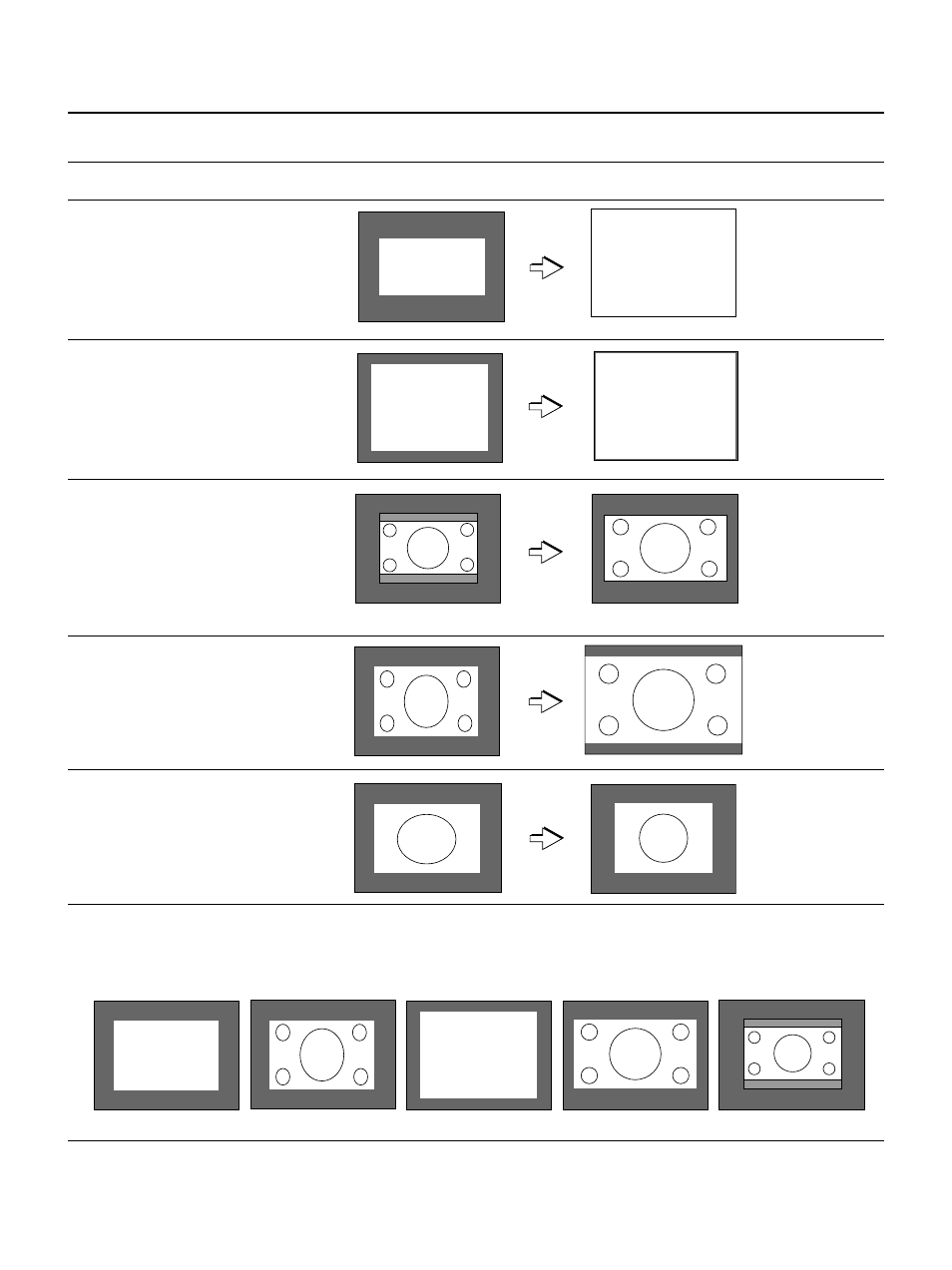

Input Screen and Aspect Ratio Selection Screen
" X X X X X • • • • • • "
Select Full
The image is projected to fill the entire
screen.
Aspect 16:9 screens will be longer than wide.
Video signal
Projection image with
Through selection Projection image when
selected
Select Auto (only with RGB or DVI selection )
While maintaining the aspect ratio of the per-
sonal computer, the image is enlarged or
reduced so that no parts protrude beyond
the screen and the image is projected to fill
the screen. Aspect 16:9 screens will be black
at the top and bottom.
Select 16:9
This returns the squeezed screen to a 16:9
screen and projects it.
The output size becomes 848 x 480.
Select Real
(S-VIDEO, VIDEO, YCbCr and YPbPr only)
This maintains a video image aspect ratio
of 4:3 and projects it.
Images with a 16:9 aspect ratio will become
vertically elongated (4:3).
Select Thru
This projects the input image as is. When the input resolution is higher than that of the projector (800 x 600), the image will extend
beyond the screen, and when lower, the image will be smaller than the screen. Video images may have a different aspect ratio.
The top and bottom
black portions are cut.
Subtitles are also cut.
The output size be-
comes 848 x 480.
[Display Examples]
Squeeze signal VGA 640 x 480 16:9 screen Letter box
Select 16:9 (LB)
(S-VIDEO, VIDEO, YCbCr, and YPbPr only)
The image of long sideways movie material
is projected to fill the entire screen without
the top and bottom black portions.
This maintains a letterbox image aspect ratio and
projects it on a 16:9 screen.
This will make the image quality better than "Full".
Adjustment of the Projection Screen
