3. Interface with
PowerPlay
UPS OUTPUT
OUT
IN
IN
FAX/MODEM
OUT
NET
WORK
INTERFACE
AC FUSE
SNMP/HTTP SLOT
AC INPUT
EXT.BATTERY
115V Rear Panel
SITE
WIRE FAULT

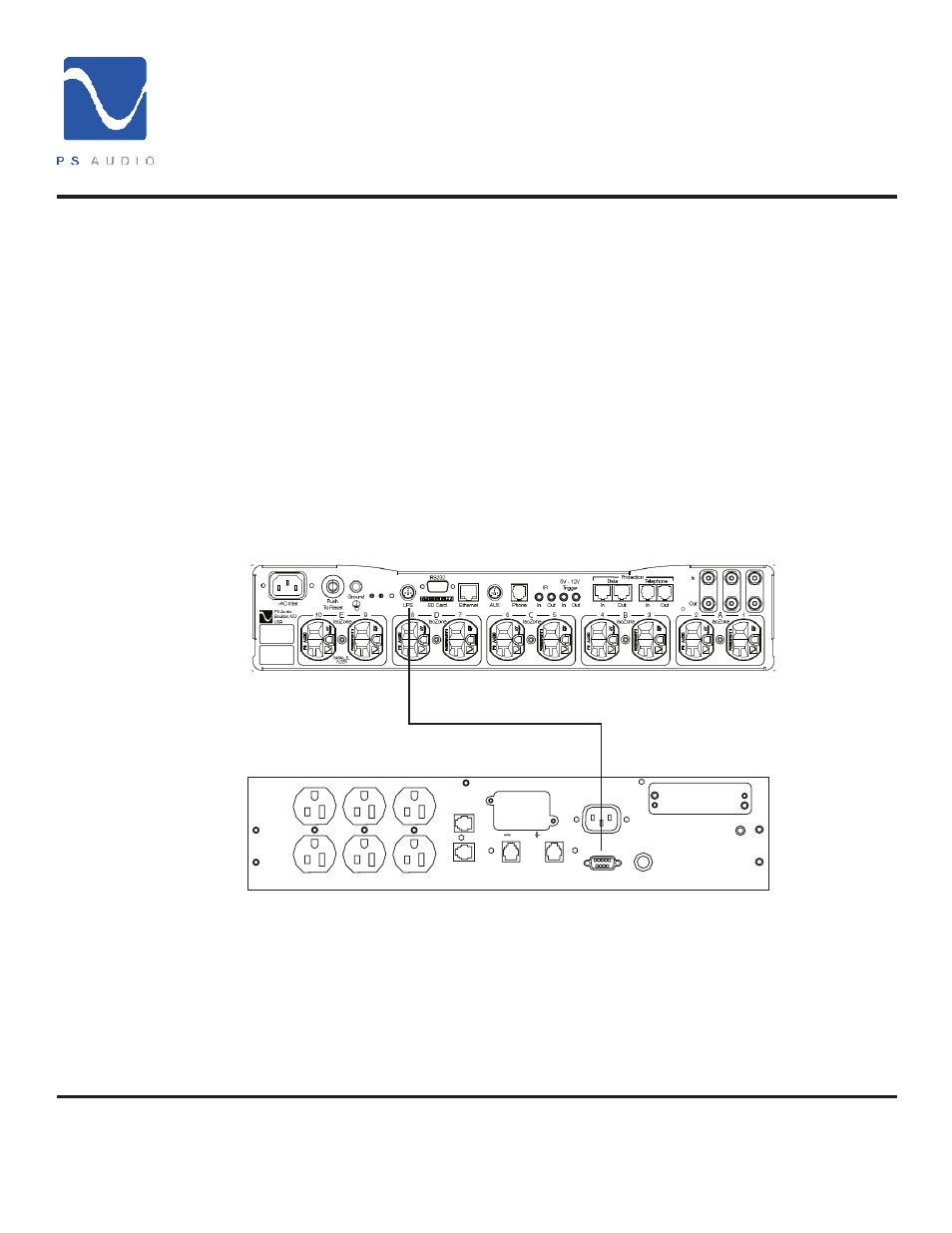

Connect Power play UPS to Interface connection on the UPS
PowerPlay
PowerPack 1500 MKII
When connected with a PS Audio PowerPlay or Audio Video Power Center, the
UPS communications cable provides critical information to the power condi-
tioner. In order to enable PS Audio’s revolutionary Intelligent UPS Management
Control and Configuration connect the RS-232 (DB9) end of the included com-
munications cable into the PowerPack. Then connect the 3-Pin connector to the
UPS port of the PS Audio power conditioner. Finally plug the power cable for the
power conditioner into one of the outputs of the PowerPack.
Note: The Intelligent Management Control and Configuration is only available for
devices powered from the PS Audio power conditioner. When a PS Audio Power
Conditioner is connected it is not recommended to power any other devices
directly from the PowerPack.
