12
PRV-LX10
En
Writer 1
Output Board
(optional)
Input Board
(optional)
Writer 2
Video Monitor
Keyboard/mouse
(USB connector)
HDD (USB connector)
Internal HDD
REC monitor / GUI display
Note:
Note:
Supported discs:
DVD-R (general use),
DVD-RW
* (Must be purchased separately)
At present, GUI is not output
from the VGA (GUI) output
connectors.
* (Must be purchased separately)
* (Must be purchased separately)
Headphones
* (Must be purchased separately)
* (Must be purchased separately)
* (Must be purchased separately)
Video in/out
Component video
Composite video
S-video
✱
1 DV
Audio in/out
RCA
XLR
DV
Video out
SDI
Audio out
SDI, AES/EBU
Video in
SDI
Audio in
SDI, AES/EBU
Video out
Component video
Composite video
S-video
Remote
control unit
SDI AES/EBU Input Board
PRA-BD11
SDI AES/EBU Output Board
PRA-BD12
By installing the optional SDI
AES/EBU input board (PRA-
BD11) in the unit’s expansion
slots, the PRV-LX10 can be
upgraded to support input of
SDI video signals and SDI/AES
EBU audio signals.
Note:
By installing the optional SDI
AES/IBU output board (PRA-
BD12) in the unit’s expansion
slots, the PRV-LX10 can be
upgraded to support output of
SDI video signals and SDI/AES
EBU audio signals.

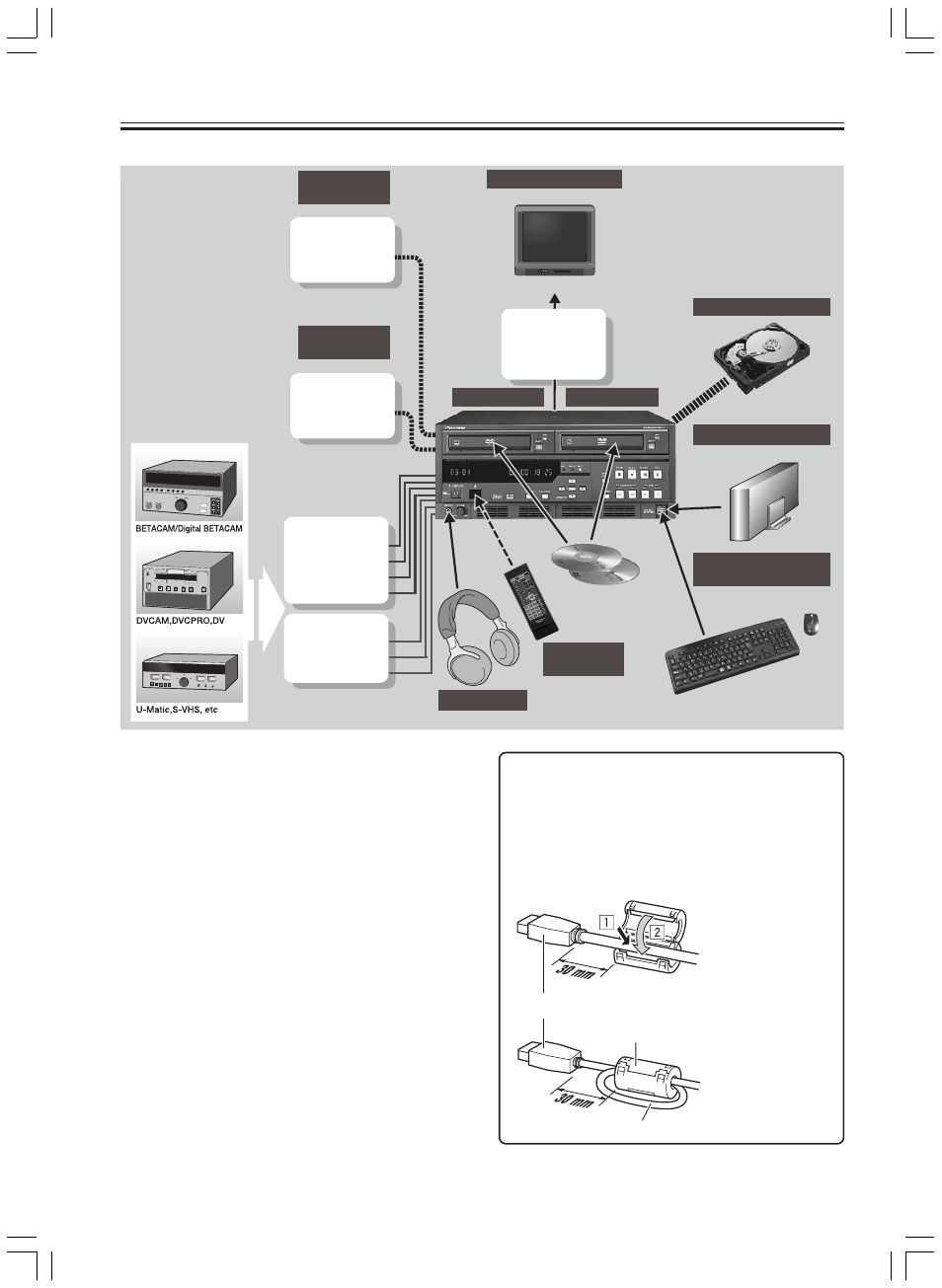

Example of System Composition and Recording Component Setup
7 System Composition
* BETACAM, Digital BETACAM, and DVCAM are registered
trademarks of Sony Corporation.
* DVCPRO is a registered trademark of Matsushita Electric
Corporation.
* Check Pioneer’s website for a list of components and systems
with confirmed operational compatibility.
✱1
When using the DV cable, be sure to attach the
accessory ferrite core near the end of the cable
connected to this unit. Attach the ferrite core as shown.
* The ferrite core is provided to prevent interference with
surrounding appliances and this unit, in accordance with
European EMC standards (EN55103).
Installing the Ferrite Core
Insert the DV cable
into the groove of
the ferrite core, and
press together until
it clicks securely.
* In the event that
the DV cable is too
thin, double the
cable passage
through the core
as shown.
Ferrite core
Cable
Connect to DV connector
on this unit.
