X . C A R E A N D M A I N T E N A N C E

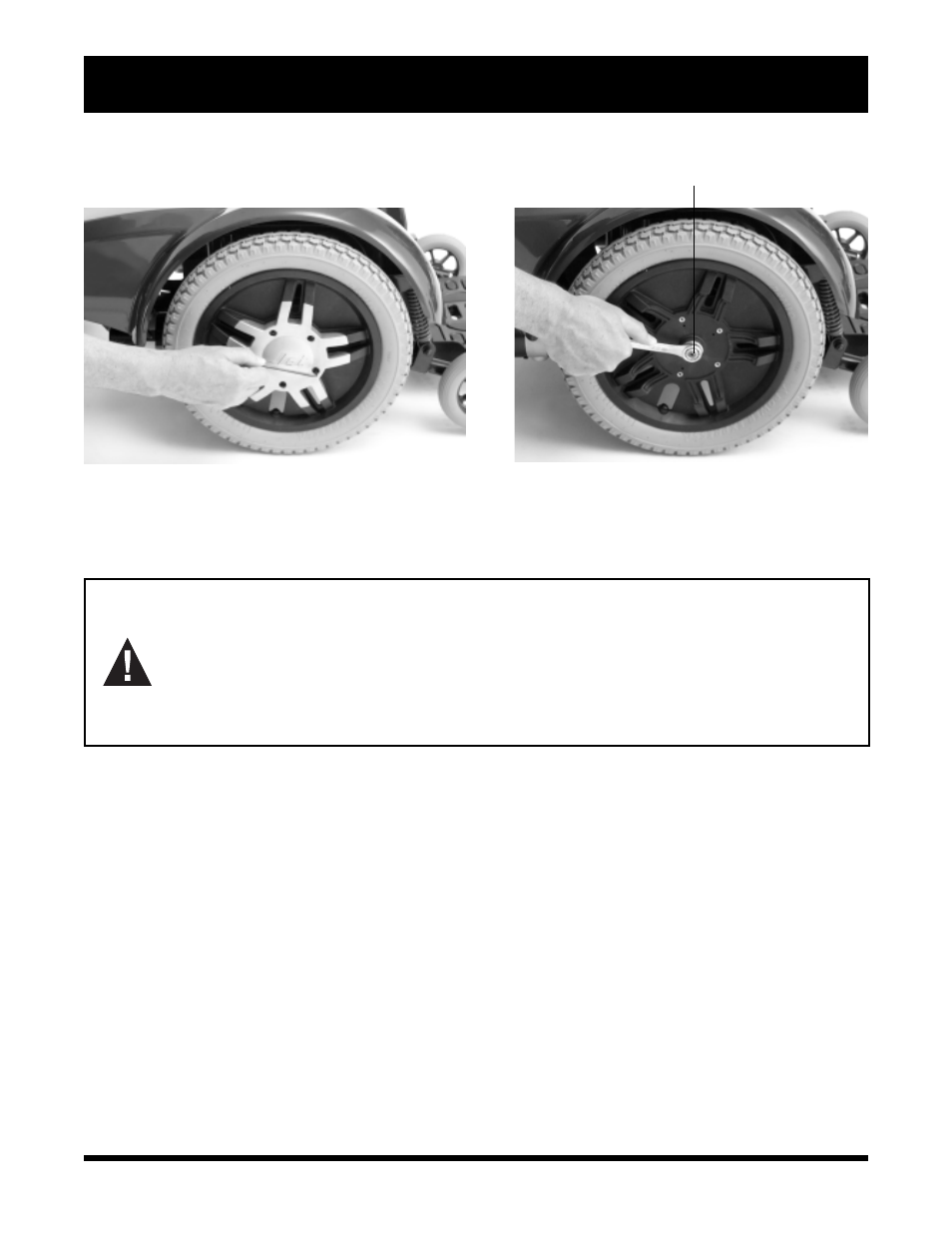

Figure 25. Drive Wheel Hub Cap Removal
DRIVE WHEEL NUT
Figure 26. Drive Wheel Nut Removal
BATTERY REPLACEMENT
Refer to the battery diagram that is printed on a label located on the Jet 10 frame near the battery tray.
WARNING! The power chair batteries are heavy. Refer to the specifications table. If you are
unable to lift that much weight, be sure to get help. Lifting above your capacity to do so can result
in personal injury.
WARNING! Battery posts, terminals, and related accessories contain lead and lead compounds.
Wash hands after handling.
WARNING! Always protect the batteries from freezing and never charge a frozen battery. This
damages the battery and may result in personal injury.
To replace the batteries:
1. Turn the power off.
2. Unplug the 9-pin controller harness and the charger harness. See figure 9 and 10.
3. Remove the seat.
4. Remove the body shroud.
5. Loosen and remove the nuts on the positive battery terminals first.
6. Remove the wires.
7. Loosen and remove the nuts on the negative battery terminals.
8. Remove the wires.
9. Remove the old batteries.
10. Install the new batteries into your Jet 10 with the terminal sides of the batteries facing inward, toward each
other.
