configuration and control commands to
both the local and remote
KiloModems™.
In addition, the KiloModem™ is able to
send an out-of-band alarm signal through
its control port.
The KiloModem™ incorporates local
analog and remote digital loopback test
modes, as well as a V.52 BERT pattern
generator. Eight front panel LED indica-
tors (TD, RD, CTS, CD, DTR, No Signal,
Error, and Test Mode) provide real-time
diagnostic information. Extended dis-
tances are accomplished using automatic
equalization, gain control and echo can-
cellation. Data integrity is enhanced by
transformer isolation and surge protec-
tion. Synchronous clocking options
include internal, external and receive
recovered clock. For flexible connection
of WAN hardware, the
KiloModem™
accepts replaceable QuikConnect™
interface modules. These modules adapt
to a variety of popular terminal interfaces
(see below). Standard AC power supply
options include 120/230VAC (switchable)
or 85-256VAC (universal). A 48VDC
power supply is also available.
7622 Rickenbacker Dr., Gaithersburg, MD 20879
Phone: (301) 975-1000 • Fax: (301) 869-9293 • E-mail: [email protected] • WWW: http://www.patton.com
D
ESCRIPTION
Continued...
S
PECIAL
F
EATURE

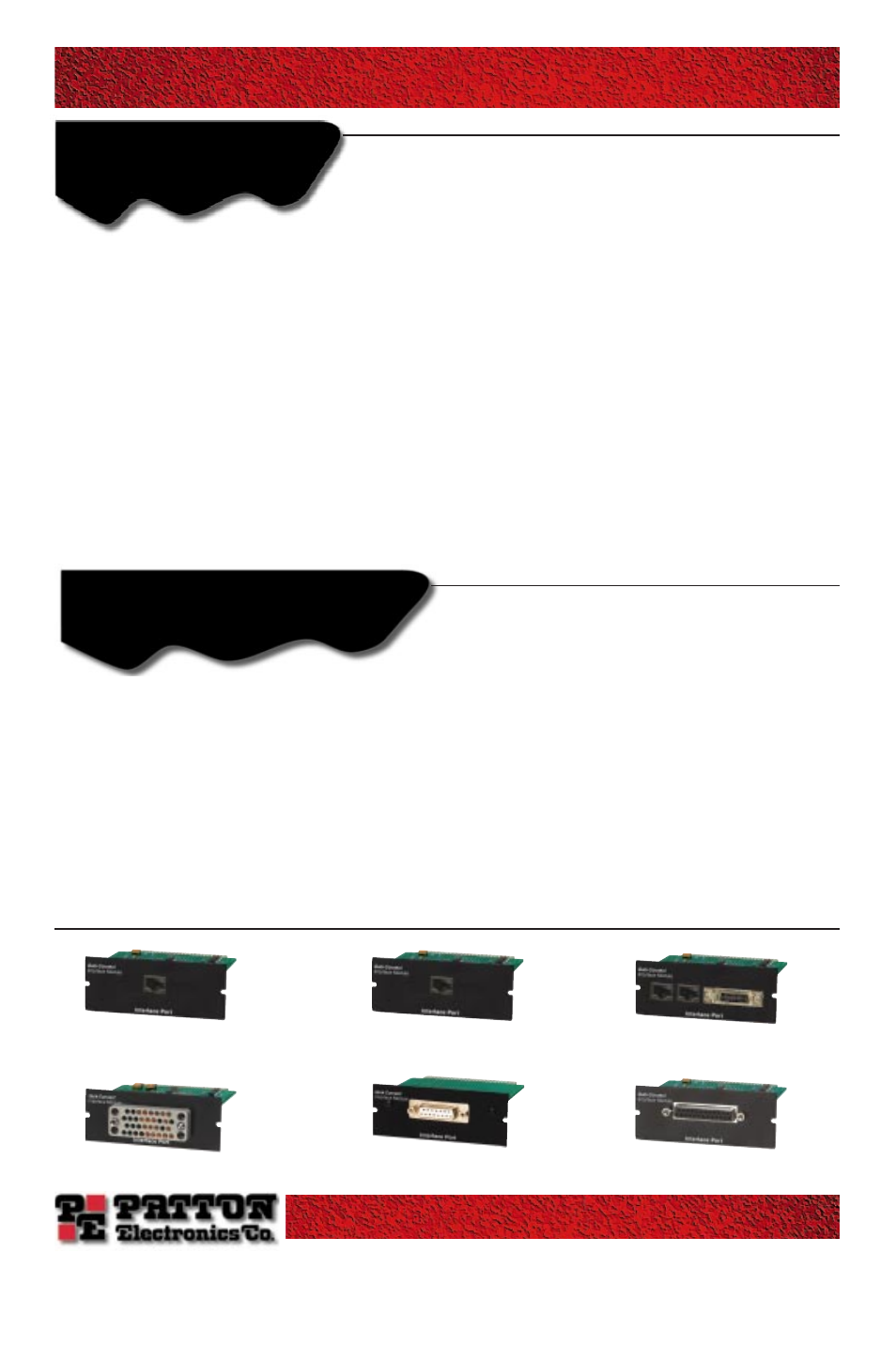

Ethernet Bridge QuikConnect™
Interface Modules
RS-232, 422, 530
64K G.703
V.35
Ethernet Bridge
X.21
Voice + Data
The Ethernet Bridge QuikConnect Module
Module (model no. IM1/I) adds transparent
Ethernet bridging capability to all its
CSU/DSU, fiber, shorthaul, baseband, and
transmission products. Now, two remote
LANs can be peered across a 2/4 wire leased
line, T1 (DSX-1), G.703 (64K and E1), multi-
mode fiber or 56/64 kbps DDS network
through a screw-in QuikConnect package.
The Ethernet Bridge Module is a Media Access Control (MAC) layer bridge and
is transparent to layer-3 network protocols. It
can be used in many environments, including
IP, IPX, NetBIOS and DECnet™LANs. The
Ethernet Bridge Module connects to an 802.3
Ethernet LAN using a standard 10BaseT
interface with an RJ45 connector. Its trans-
parent bridging function allows broadcast,
multicast and data frames to be passed.
