Electrical Connections

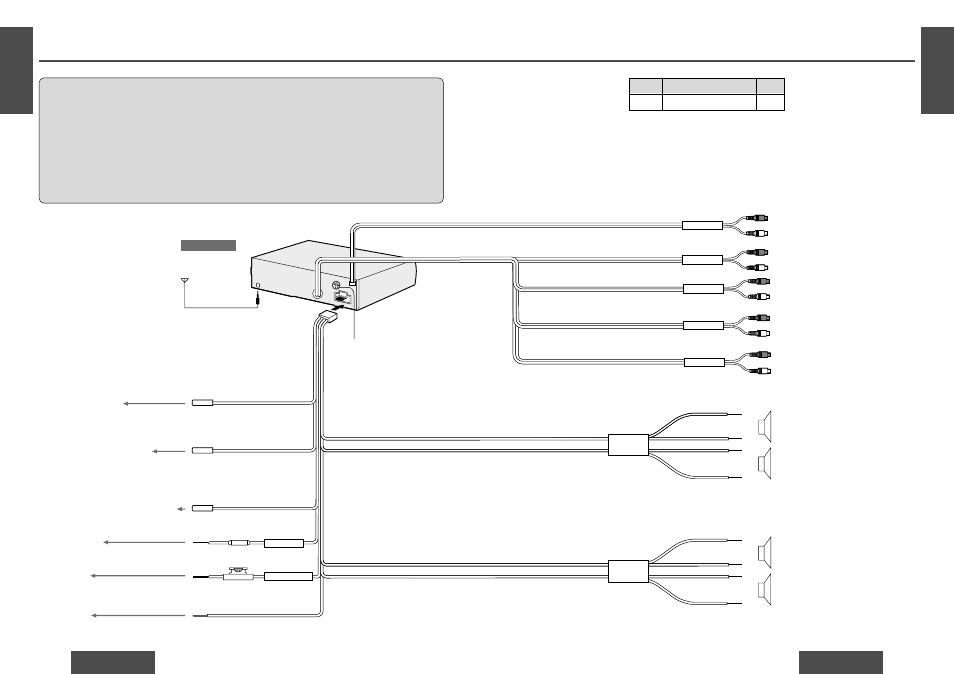

❐ Wiring Diagram
No.
Item
Q’ty
6
Power connector
1
Cautions:
≥
This product is designed to operate of a 12 V DC, negative ground battery system.
≥
To prevent damage to the unit, be sure to follow the connection diagram below.
≥
Remove approx. 5 mm of protective covering from the ends of the leads before connecting.
≥
Do not insert the power connector into the unit until the wiring is completed.
≥
Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables
and keep cable terminals free from touching any metal parts.
≥
Remember, if your car has a drive computer or a navigation computer, the data of its memory may be
erased when the battery terminals are disconnected.
≥
All other installation methods require the use of dedicated metal fittings. Consult with a qualified servicing
engineer or your dealer if other method are required.
Accessory used for wiring
Note:
≥
Insulate the dual CD changer control lead with
vinyl tape when you do not connect it.
Antenna control lead
To the auto antenna control
power lead of the car. (Max. 500 mA)
Dual CD changer control lead
External amplifier control power lead
To an external amplifier. (Max. 500 mA)
ACC power lead
To ACC power, _12 V DC.
Battery lead
To the battery, continuous _12 V DC.
Ground lead
To a clean, bare metallic part of the car chassis.
(Blue)
(Brown/white stripe)
(Blue/white stripe)
(Red)
Registor (1 k≠)
(Yellow)
Fuse (15 A)
(Black)
+
-
(Gray)
(Gray/black stripe)
(Right)
+
-
Front speaker lead
(White/black stripe)
(White)
(Left)
To front sepaker
6 Power connector
Antenna
S.W-OUT
REAR
CD.C-IN
(L) (White)
(R) (Red)
(L) (White)
(R) (Red)
(L) (White)
(R) (Red)
(L) (White)
(R) (Red)
Subwoofer cord
Preout cord (Rear)
Preout cord (Front)
AUX input cord
CD changer input cord
CD changer control connector
ACC
BATTERY 15 A
AUX-IN
FRONT
FRONT SP
+
-
(Violet)
(Violet/black stripe)
(Right)
+
-
Rear speaker lead
(Green/black stripe)
(Green)
(Left)
To rear sepaker
REAR SP
(White)
(Red)
(MONO)
