Home Office Networking (SN4520 Series FXS/FXO)
The addition of the QoS and VPN capabilities of the SN4520 Series allows to combine the advantages of
the Phone Line Extension (see above) with Service Quality control and VPN office networking.
SN4522/JO
SN4522/JS
VPN & VoIP
DSL
Modem DSL
Modem
Home
PC
Office
LAN
Internet
PBX

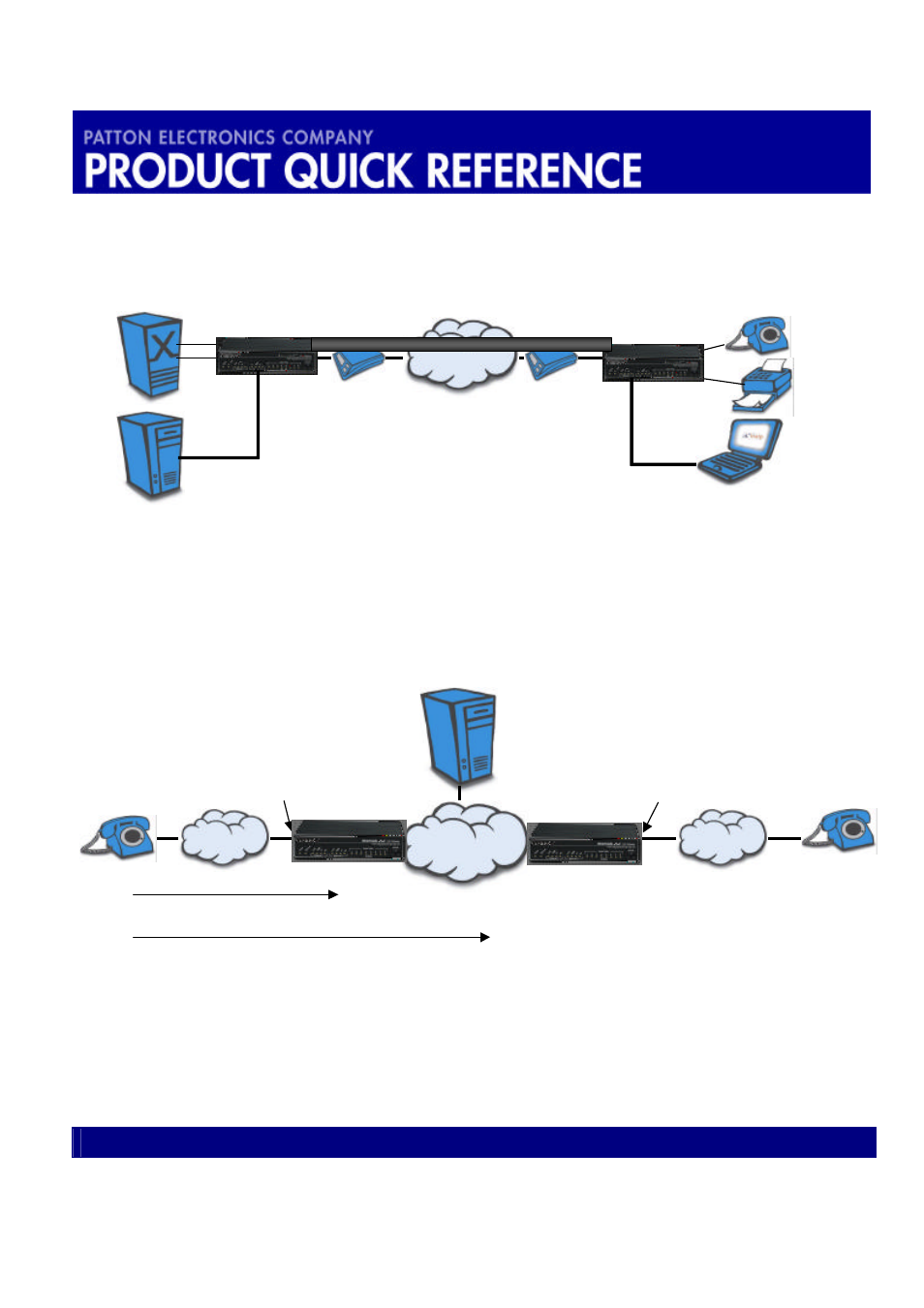

Figure 4: Home Office networking with voice and VPN
ITSP Dial-In Access (SN4110 Series FXO)
Internet Telephony Providers (ITSPs) have different options for giving access to their customers. E.g.
direct connections over broadband Internet, Call-shops or dial-in access. This works as follows:
q
The customer calls a local number where a SmartNode is connected (originating Gateway)
q
The SmartNode provides a 2 nd dial-tone so that the customer can dial the destination number
q
Based on this second number the call is routed to the terminating gateway
q
The terminating gateway picks up the line and dials the destination number
Internet
(Toll Bypass)
Phone
FXO FXO
Phone
Dial-in
2 nd dialtone & DTMF dialing
3rd Party ITSP Call Control Server
- IVR
- Authentication
- Call Accounting
PSTN PSTN
Figure 5: ITSP Dial-In Access
In general this application is implemented in combination with 3rd party systems for IVR
(announcement messages, PIN verification), Gatekeeper or SIP Server (call routing, signaling) and
Accounting (raw data for customer billing) – For complete system offers Contact Patton Global
Solutions. For very small deployments the SmartNode can be deployed standalone.
