Terminal and make and receive calls to the PSTN and the Internet Telephony Service. This way there is
no additional IP-Phone or PC Software required to make Internet calls.
q
One Terminal to access VoIP and PSTN
q
Local PSTN breakout for fallback and/or incoming calls
q
One Phone for Office Extension (VoIP) and Public network line
SN4524/2JS2JO DSL
Modem
PC
Internet
PSTN
VoIP
Regular
PSTN Call
FXS
FXO

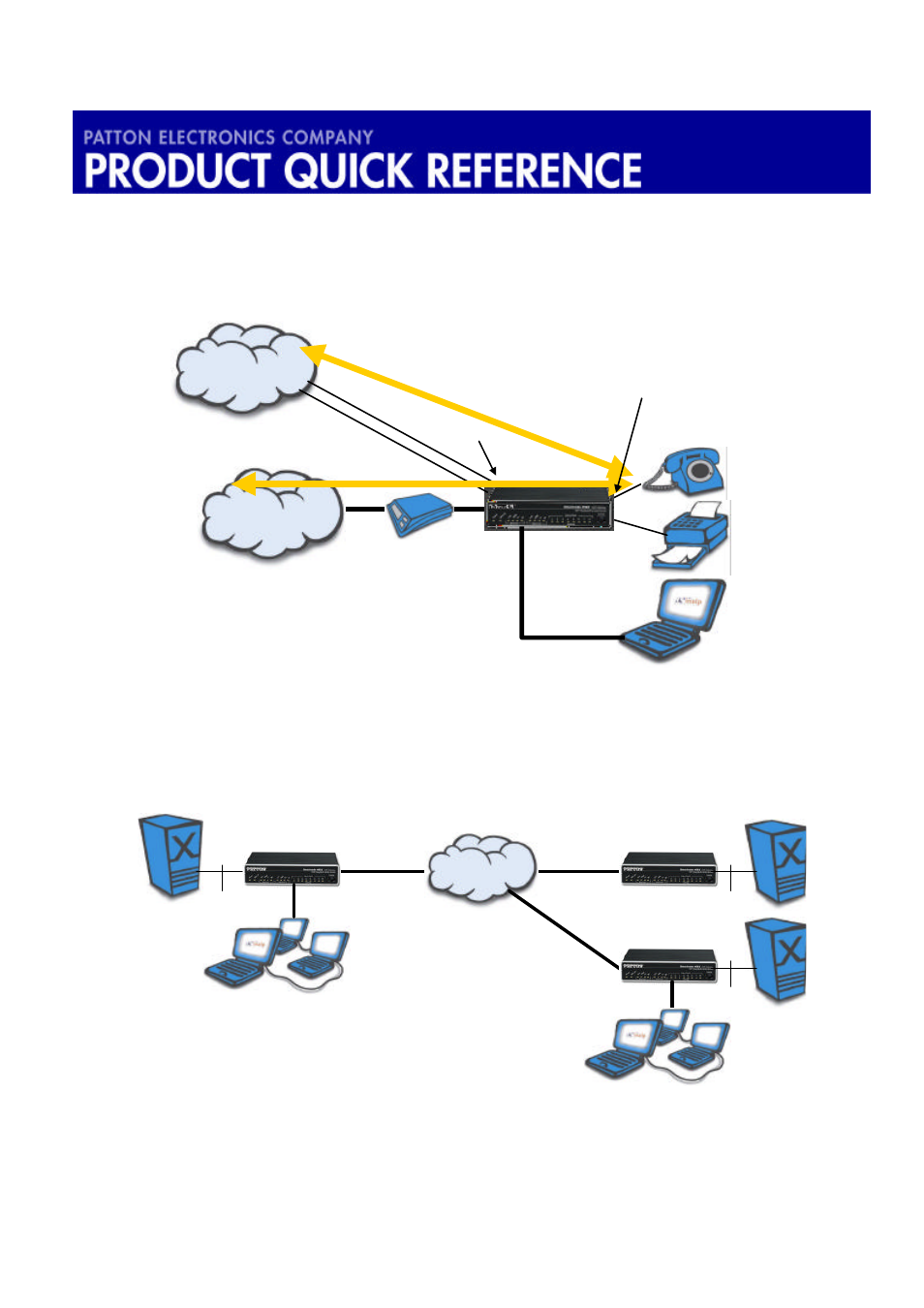

Figure 2: Single Phone IP/PSTN Access
Branch and Remote Office Networking (FXS/FXO)
The SN4000 Series is used to network branch and remote offices worldwide with telephony and secure
data connections using a single device at each location. This provides companies with toll savings and
reduced network maintenance costs.
SN4118 SN4114
SN4116
IP/WAN/VPN
WWW
8-lines 4-lines
6-lines
Figure 3: Branch-Office Networking
The combination of FXS and FXO ports allows to dedicate at each site a number of ports for outgoing calls (FXO on the
PBX and FXS on the SmartNode) and a number of ports for incoming calls (FXS on the PBX and FXO on the
SmartNode – diarect inward dialing).
