DBS Release Notes
CPC-EX, Version 1 .O (Preliminary)
Key Telephone Installation
Desi Strip Cover
Tine 44-Series Key Telephones are shipped with a thin green protective film over the Desi strip
cover. Be sure to remove this film from both sides of the Desi cover before placing the phone in
service.
Key Telephone Wall Mounting Instructions
The following procedures apply to Key Telephones only. Please be sure to follow these
procedures exactly. Removing the desk stand incorrectly can result in damage to the telephone
and/or desk stand.
1. Place the telephone face down on a flat surface.
2. Grasp the top of the desk stand (at the label) and pull up the end to 90” vertical (refer to
Step 2 in Figure 2j. The stand will click as it releases from the plastic securing latches.
3. Lift the desk stand as shown in Step 3 of Figure 2.

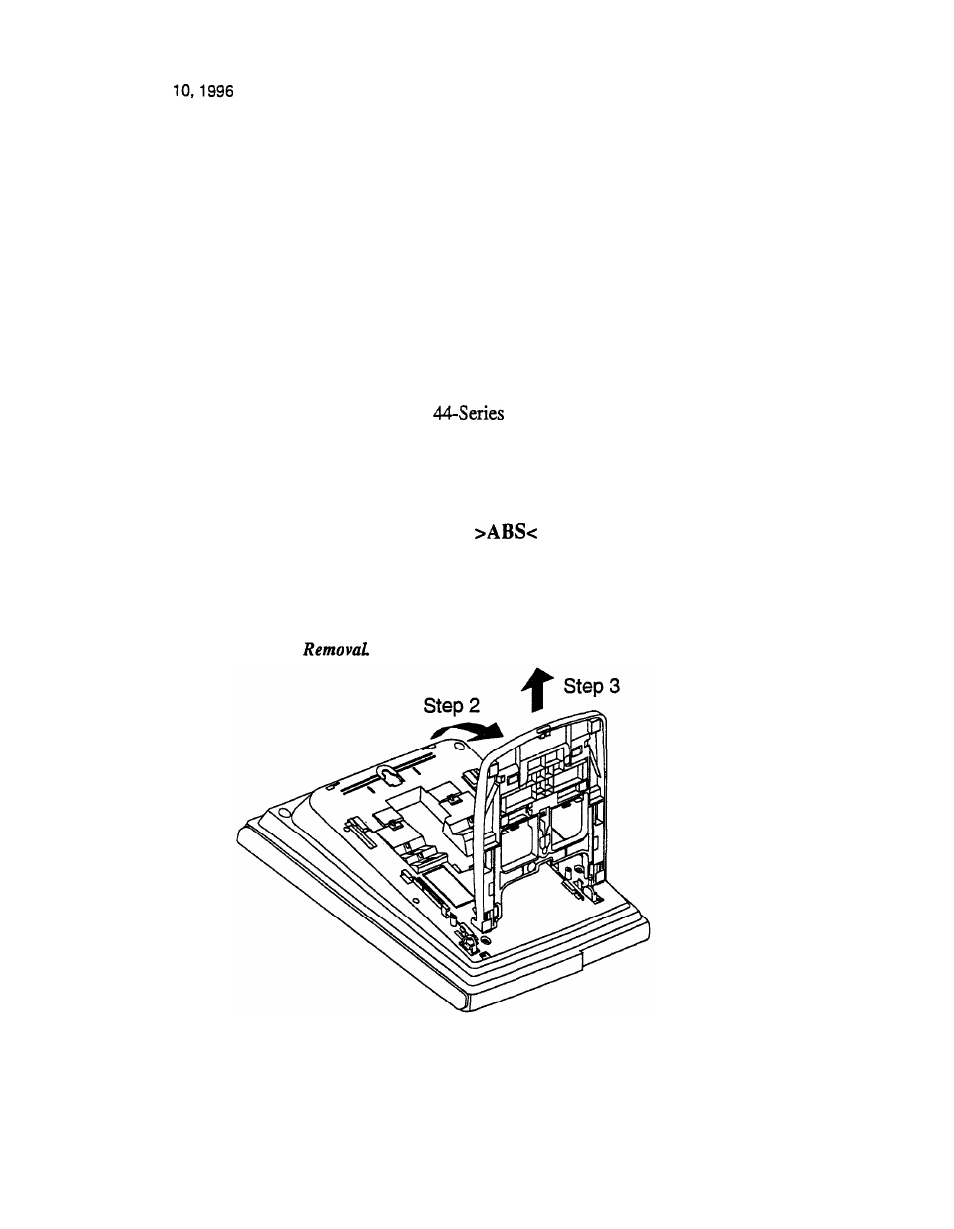

Figure 2. Desk Stand
Installation Notes
l
